TM4ES4 Characteristics

Introduction

These are the general characteristics of the TM4ES4 module.

WARNING
	UNINTENDED EQUIPMENT OPERATION Do not exceed any of the rated values specified in the environmental and electrical characteristics tables. Failure to follow these instructions can result in death, serious injury, or equipment damage.

Dimensions

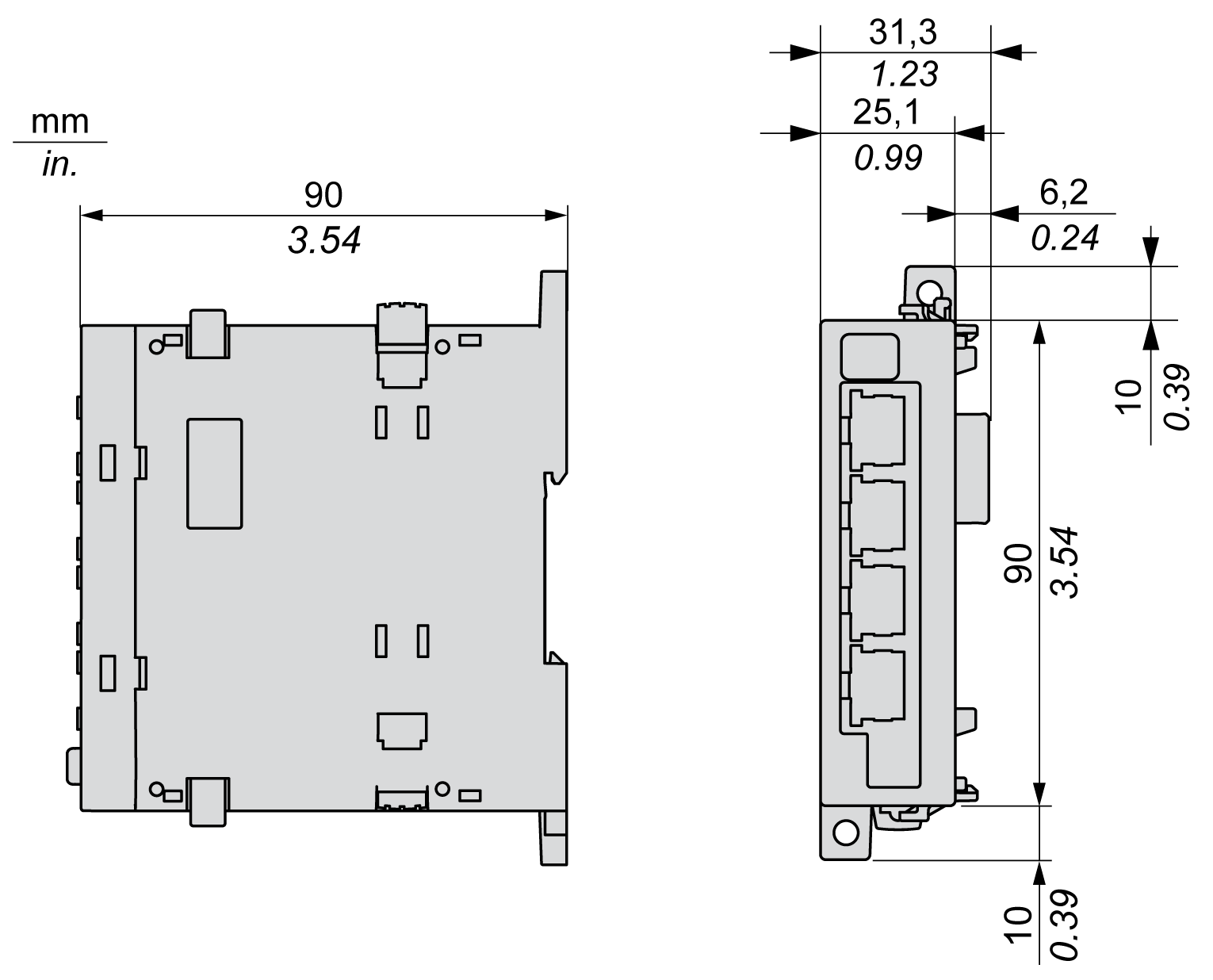

The following diagrams show the dimensions of the TM4ES4 module:

General Characteristics

The table describes the general characteristics of the TM4ES4 module:

Characteristic		Value
Consumption		360 mA
Power dissipation		2.5 W
Weight		125 g (4.41 oz)

Characteristics

The table describes the characteristics of the TM4ES4 module:

Characteristic	Description
Standard	Ethernet
Connector type	RJ45
Baud rate	Supports Ethernet "10BaseT" and "100BaseTX" with auto-negotiation
Auto-crossover	MDI / MDIX

NOTE: The controller supports the MDI/MDIX auto-crossover cable function. It is not necessary to use special Ethernet crossover cables to connect devices directly to this port (connections without an Ethernet hub or switch).
