RJ45 Connector

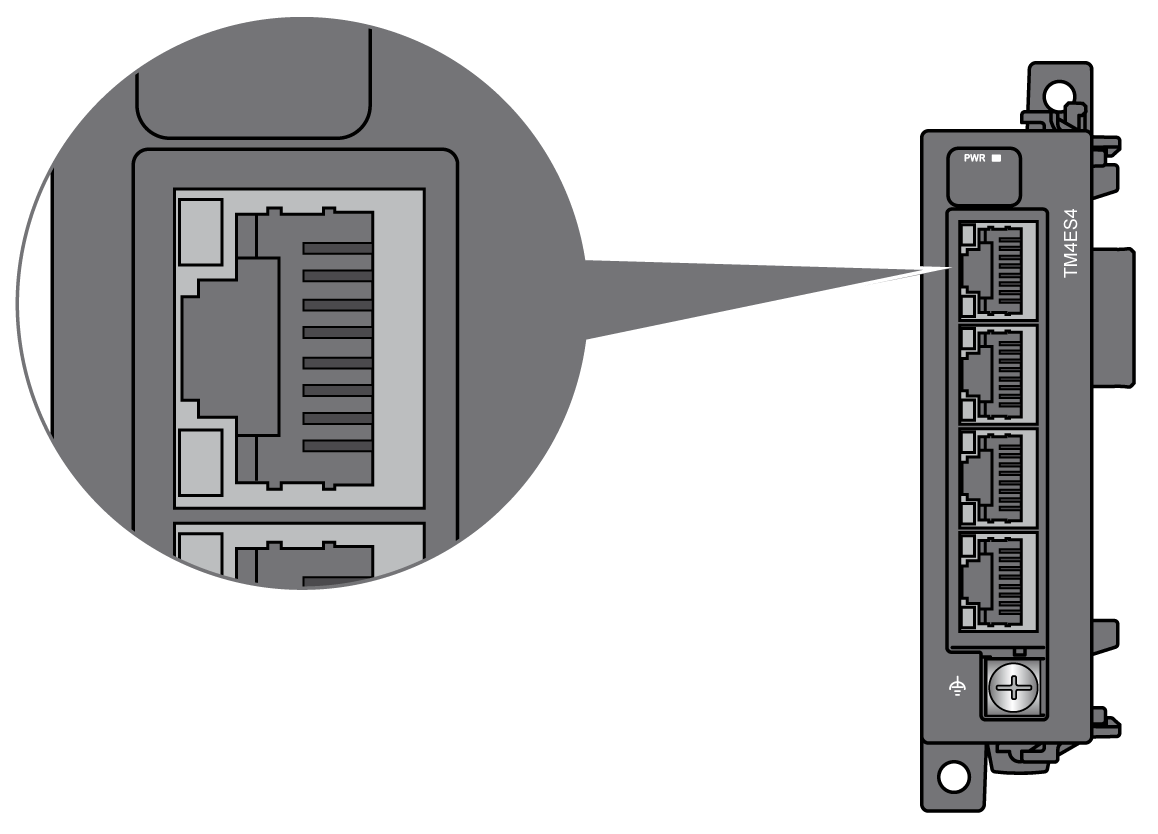

The TM4ES4 module is equipped with 4 Ethernet RJ45 connectors:
Pin Assignment
The figure shows the Ethernet RJ45 connector pins:
The table describes the Ethernet RJ45 connector pins assignment:
|
Pin N°
|
Signal
|
|
1
|
TD+
|
|
2
|
TD-
|
|
3
|
RD+
|
|
4
|
–
|
|
5
|
–
|
|
6
|
RD-
|
|
7
|
–
|
|
8
|
–
|
Rules for Connection to the Functional Ground

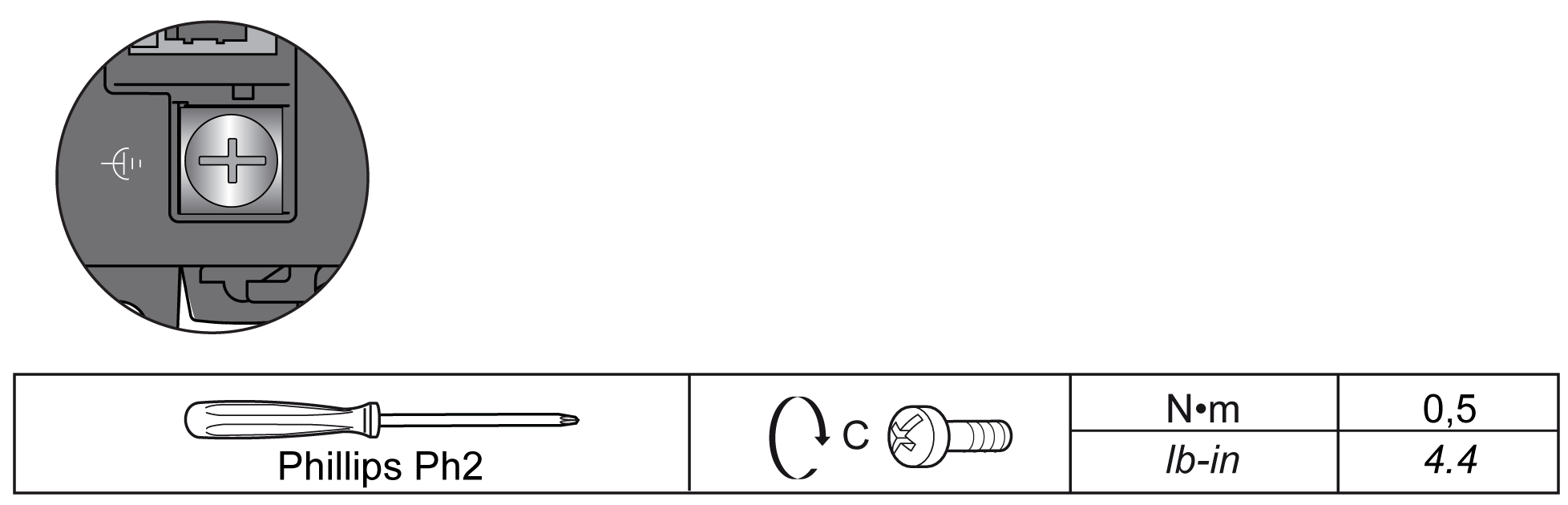

The following table shows the characteristics of the screw to be used with the provided Functional Earth (FE) Cable:
Applying torque above the limit may damage the terminal screw or threads.
|
NOTICE
|
|
INOPERABLE EQUIPMENT
Do not tighten screw terminals beyond the specified maximum torque (Nm / lb-in.).
Failure to follow these instructions can result in equipment damage.
|
