TM5SBET7 Presentation

Main Characteristics

The table below describes the main characteristics of the TM5SBET7 electronic module:

Main Characteristics
Function	Transmits the TM7 data bus and provides the TM7 power bus to the TM7 expansion I/O blocks.
Maximum bus length	2500 m (8202.1 ft)
Maximum cable distance between Transmitter and Receiver	100 m (328 ft)
Power distribution	TM7 power bus

Ordering Information

The following figure and table give the references to create a slice with the TM5SBET7 electronic module:

NOTICE

ELECTROSTATIC DISCHARGE

oInstall a right bus base locking plate to the rightmost slice of all configurations.

oInstall a left bus base locking plate to the first slice of all remote configurations.

Failure to follow these instructions can result in equipment damage.

Number	Model Number	Description	Color
1	TM5ACBM11 or TM5ACBM15	Bus base Bus base with address setting	White White
2	TM5SBET7	Electronic module	White
3	TM5ACTB12	Terminal block, 12 pins	White

Number

Model Number

Description

Color

TM5ACBM11

TM5ACBM15

Bus base

Bus base with address setting

White

TM5SBET7

Electronic module

White

TM5ACTB12

Terminal block, 12 pins

White

NOTE: For more information, refer to TM5 bus bases and terminal blocks.

Status LEDs

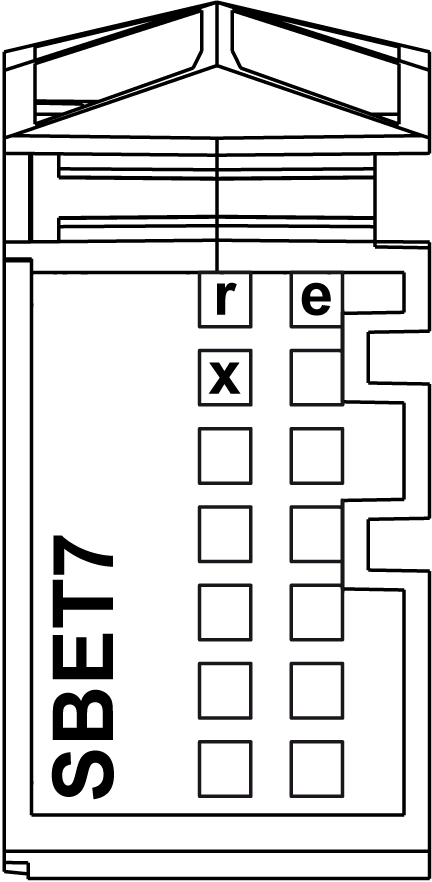

The following figure shows the status LEDs for TM5SBET7:

The table describes the TM5SBET7 status LEDs:

LED	Color	Status	Description
r	Green	Off	No power supply
		Single flash	Reset state
		Flashing	Preoperational state
		On	Operational state
e	Red	Off	OK or no power supply
e	Red	Double flash	Indicates one of the following conditions: oVoltage from the 24 Vdc I/O power segment is too low oVoltage for the TM7 power bus is too low
e+r	Steady red / single green flash		Invalid firmware
X	Yellow	Off	No communication on the TM7 data bus
X	Yellow	On	TM7 data bus communication in progress
