Dummy Module

Dummy Module

General Information

The dummy module is a non-functional module.

General Characteristics

The characteristics of the dummy module are described in environmental characteristics.

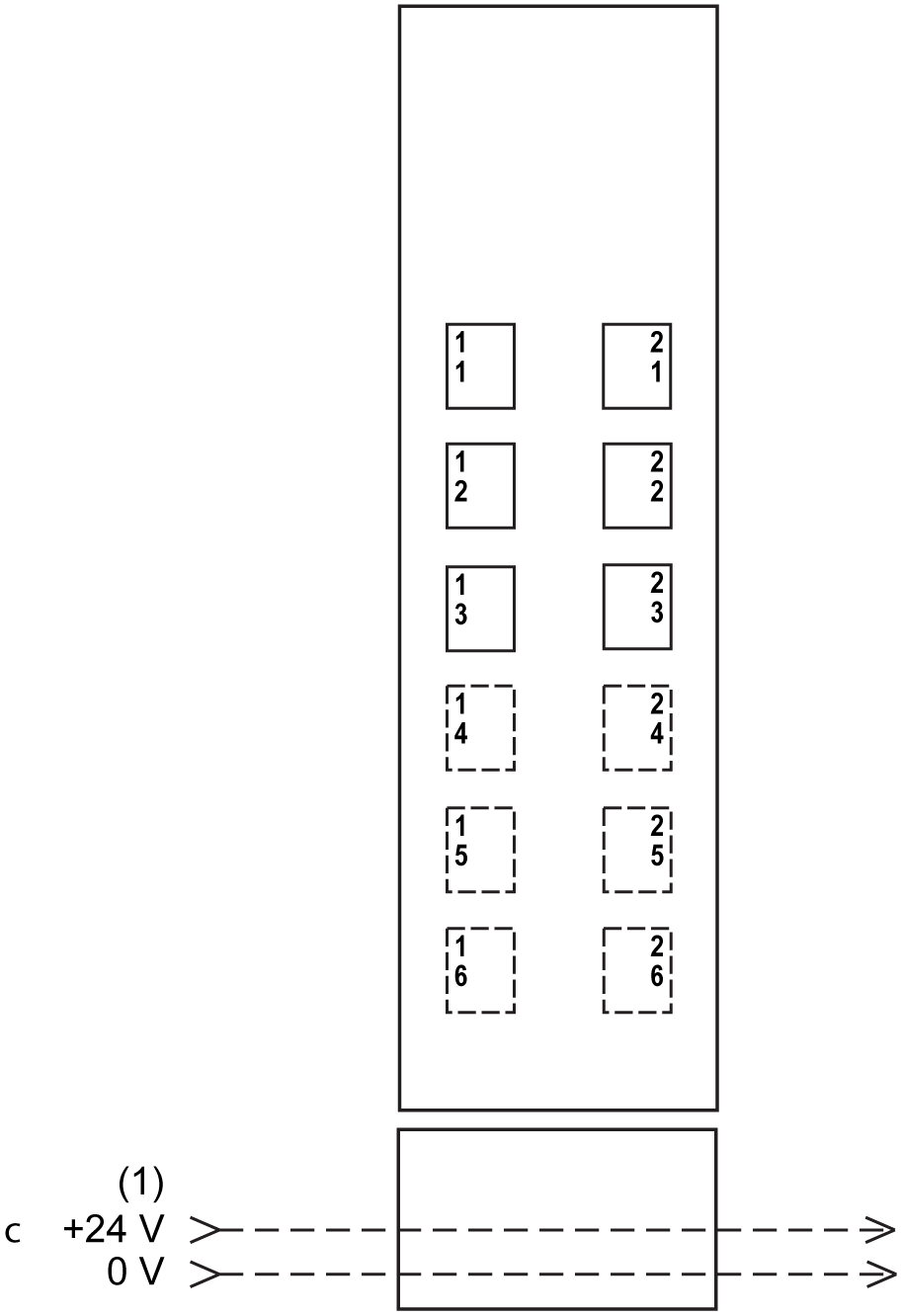

Wiring Diagram

1   24 Vdc I/O power segment integrated into the bus bases
