Introduction
This cartridge has a removable spring terminal block for the connection of the outputs.
Wiring Diagram

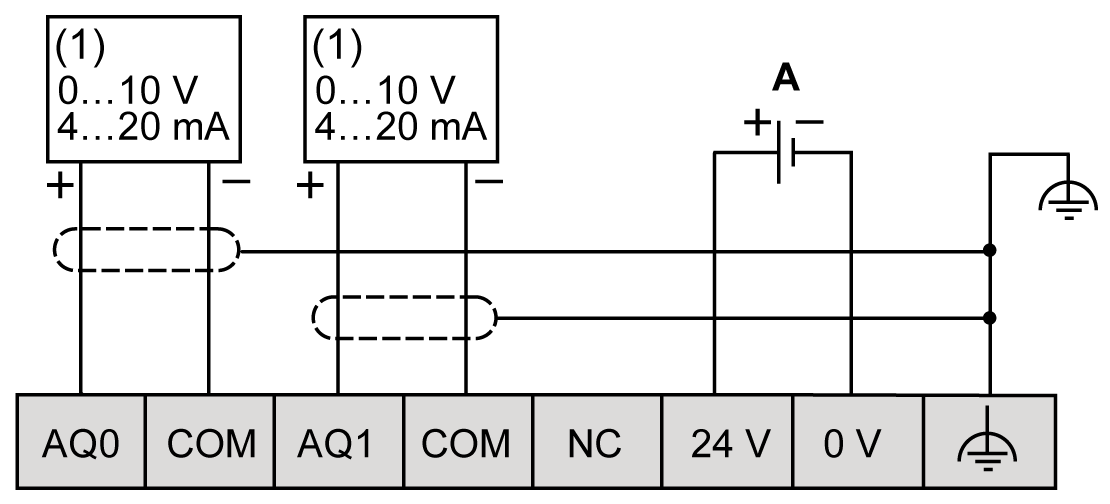

The following figure shows an example of the voltage and current outputs connection:
(1): Current/Voltage analog input device
A: External power supply
NOTE: Each output can be connected either as a voltage or current output.
|
WARNING
|
|
UNINTENDED EQUIPMENT OPERATION
Do not connect wires to unused terminals and/or terminals indicated as “No Connection (N.C.)”.
Failure to follow these instructions can result in death, serious injury, or equipment damage.
|
