IO-Link integration

IO-Link devices such as PROFINET Modules or Devices with the IO-Link Master Function (IOLM) and connected IO-Link Devices (IOLD, for example sensors) can be used in principle without additional measures.

PROFINET defines the IO-Link profile for this, which describes the mapping of the IO-Link objects and functions to PROFINET submodules:

• IO data of the IO-Link devices are mapped to the IO data of these proxy submodules.

• Acyclic PROFINET services are used for sending IO-Link commands and transmitting parameters (see FBs in ProfinetCommon/IO-Link).

• IO-Link events and diagnoses are mapped to PROFINET alarms and diagnosis data.

Manufacturer-specific tools (PDCT – Port and Device Configuration Tool) have to be used then to perform the often very complicated parameterization of IO-Link devices. CODESYS also provides a separate licensed IO-Link plug-in. This plug-in contains configurators which use the IO-Link device descriptions (IODD) to allow for convenient parameterization. Moreover, the generic (which mean transmitted as a byte stream) IO data of the IO-Link devices is prepared with the description data from the IODD. Another advantage is the backup of the IO-Link device parameters in the CODESYS project.

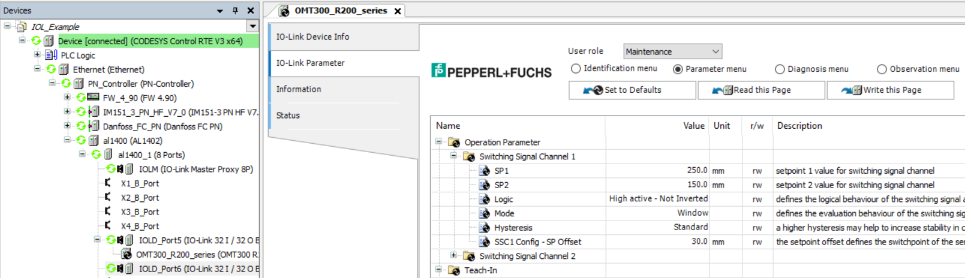

For the configuration by means of a CODESYS IO-Link, the IODD has to be imported, and the resulting generated IO-Link device has to be inserted below the IOLD proxy submodule in the device tree.

When an IODD Device is added below an IOLD proxy submodule, an IO-Link Integration tab is displayed for this object. More settings are possible there.
