Type Plate

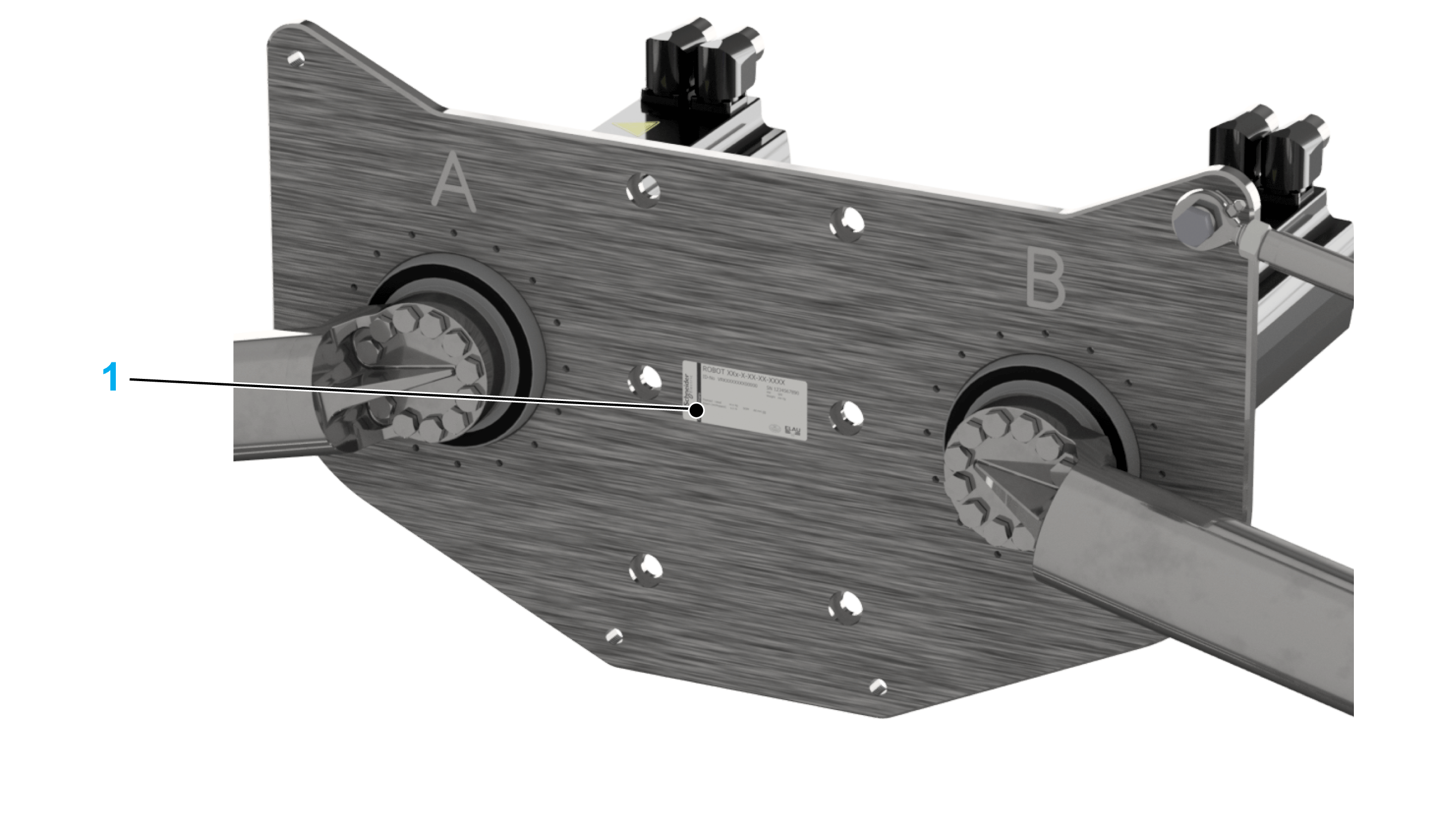

Position of the Type Plate

1 Type plate

Description of the Type Plate

1

Device name

2

Type code*

3

Serial number

4

Hardware code

5

Weight of the robot

6

Date of manufacture

7

Voltage and current of the MH3 motor

8

Voltage and current of the MH3 motor brakes

9

Voltage and current of all ILM motors and brakes

10

Nominal load

11

Radius of the working area

* For detailed information about the meaning of the particular characters, refer to Type Code.
