UA_NamespaceGetIndexList

Overview

Type:	Function block
Available as of:	V1.0.0.0

Functional Description

The function block UA_NamespaceGetIndexList is used to get the namespace indexes of several namespace URIs.

NOTE: The function block reads the server object NamespaceArray and returns the indexes of the requested elements. The namespace index is an element within the structure UANodeID, which is required for subsequently used function blocks.

NOTE: To help avoid an inconsistent response, do not modify parameters while the function block is executing (Busy = TRUE).

WARNING
	UNINTENDED EQUIPMENT OPERATION Do not modify input parameters while the Busy output is equal to TRUE. Failure to follow these instructions can result in death, serious injury, or equipment damage.

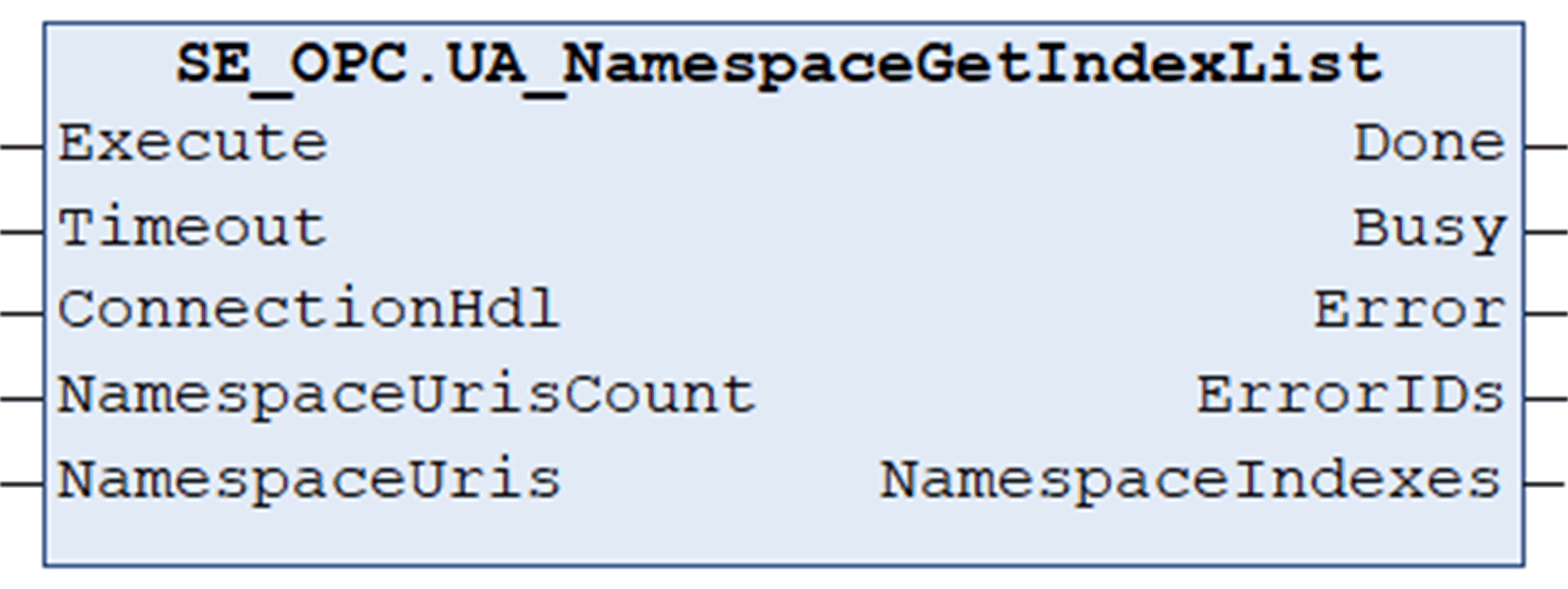

Interface

Input	Data type	Description
Execute	BOOL	Upon a rising edge, the function block is being executed. Also refer to Behavior of Function Blocks with the Input Execute.
Timeout	TIME	Maximum time to respond. Value range: 2 s...60 s If the value is out of range the upper or lower limit is applied. Default value: GPL.Timeout
ConnectionHdl	DWORD	Connection handle.
NamespaceUrisCount	UINT	Number of namespace URIs in NamespaceUris array. Value range: 1.. GPL.MAX_ELEMENTS_NAMESPACES
NamespaceUris	ARRAY [1..GPL.MAX_ELEMENTS_NAMESPACES] OF STRING [255]	Array containing namespace URIs.

Output	Data type	Description
Done	BOOL	Indicates that the execution of the function block was completed successfully.
Busy	BOOL	Indicates that the execution of the function block is in progress.
Error	BOOL	Indicates that an error was detected during execution. NOTE: Even if Error indicates FALSE, verify the corresponding ErrorIDs before processing the namespace indexes.
ErrorIDs	ARRAY [1..GPL.MAX_ELEMENTS_NAMESPACES] OF ET_Result	Provides additional diagnostic information as a numeric value. For each specified namespace URI, a separate result is provided.
NamespaceIndexes	ARRAY [1..GPL.MAX_ELEMENTS_NAMESPACES] OF UINT	Provides retrieved namespace indexes.
