UA_ConnectionGetStatus

Overview

Type:	Function block
Available as of:	V1.0.0.0

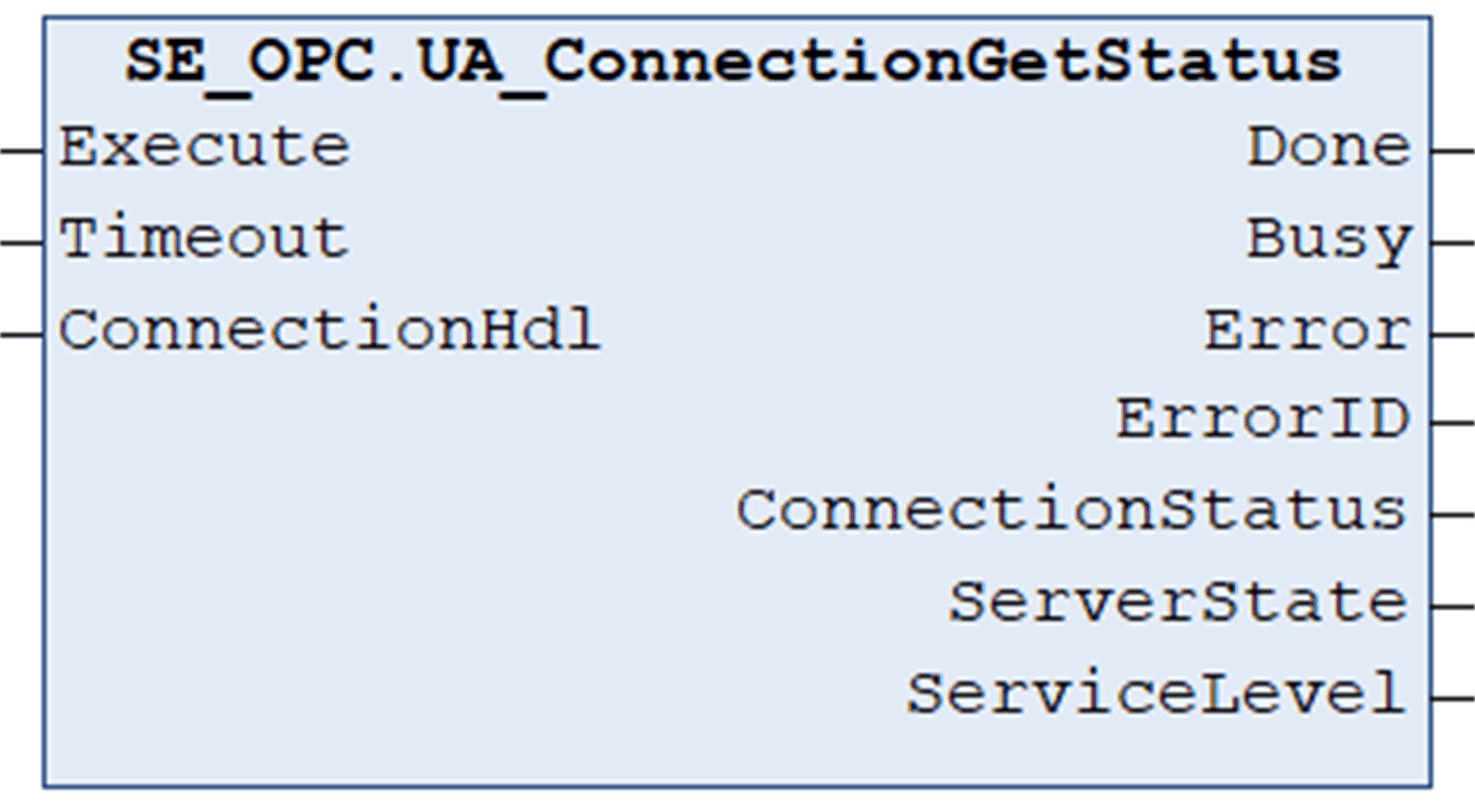

The function block UA_ConnectionGetStatus is used to get the connection status of a specified connection.

Input	Data type	Description
Execute	BOOL	Upon a rising edge, the function block is being executed. Also refer to Behavior of Function Blocks with the Input Execute.
Timeout	TIME	Maximum time to respond. Value range: 2 s...60 s If the value is out of range the upper or lower limit is applied. Default value: GPL.Timeout
ConnectionHdl	DWORD	Connection handle.

Input

Data type

Description

Execute

BOOL

Upon a rising edge, the function block is being executed.

Timeout

TIME

Maximum time to respond.

Value range: 2 s...60 s

If the value is out of range the upper or lower limit is applied.

Default value: GPL.Timeout

ConnectionHdl

DWORD

Connection handle.

Output	Data type	Description
Done	BOOL	Indicates that the execution of the function block was completed successfully.
Busy	BOOL	Indicates that the execution of the function block is in progress.
Error	BOOL	Indicates that an error was detected during execution. NOTE: Even if Error indicates FALSE, verify the corresponding ErrorIDs before processing the namespace indexes.
ErrorID	ET_Result	Provides additional diagnostic information as a numeric value. For each specified namespace URI, a separate result is provided.
ConnectionStatus	UAConnectionStatus	Indicates the connection status.
ServerState	UAServerState	Indicates the server status.
ServiceLevel	BYTE	Indicates the ability of the server to provide its data to the client. The value range is from 0...255, where 0 indicates the lowest and 255 indicates the highest level (best). The intent is to provide the clients an indication of availability among redundant servers.
