TestMulticarrier

Overview

In order to become familiar with the different functionalities of the Multicarrier and the MulticarrierStation libraries, the example project provides several application examples in the operation mode TestMulticarrier.

Call of Test Stations

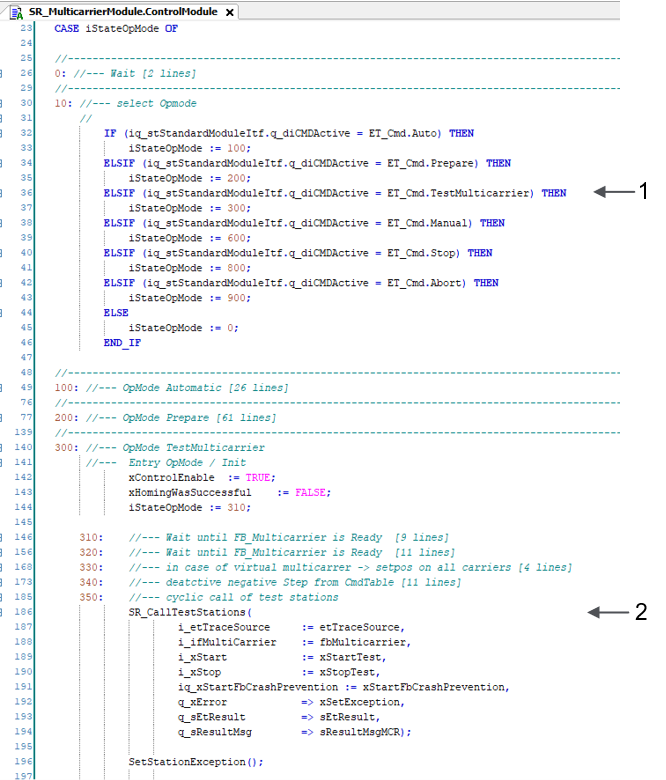

In the control module of the subroutine SR_MulticarrierModule, the command for the operation mode TestMulticarrier is executed and cyclically calls the examples.

Item

Description

1

Command for executing the test stations

2

Cyclic call of test stations

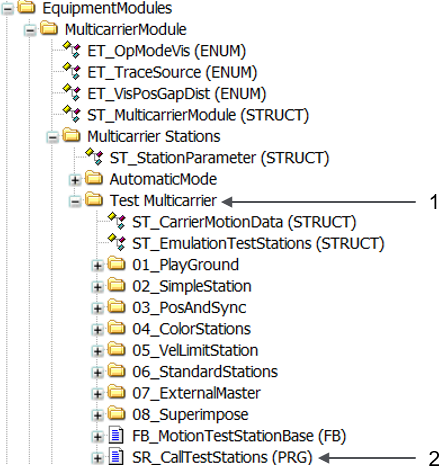

The subfolder Test Multicarrier with the application examples is located in the folder EquipmentModules.

Item

Description

1

Folder which includes the test examples

2

Program in which the example programs (test stations) are called
