Safety Logic Controller Presentation

Features

The table below describes the features of TM5CSLC100FS / TM5CSLC200FS and TM5CSLC300FS / TM5CSLC400FS:

Feature	TM5CSLC100FS	TM5CSLC200FS	TM5CSLC300FS	TM5CSLC400FS
Maximum I/O modules via Sercos III interface	20 safety-related modules	100 safety-related modules	20 safety-related modules	100 safety-related modules
Interfaces	Sercos III, controlled node, integrated 2x switch
Application memory	exchangeable: memory key
Dimensions (W x H x D)	87.5 x 99 x 75 mm (3.44 x 3.89 x 2.92 inches)		62.5^+0.2 x 99 x 75 mm (24.60^+0.07 x 3.89 x 2.92 inches)
Weight	290 g (10.23 oz)		208 g (7.34 oz)

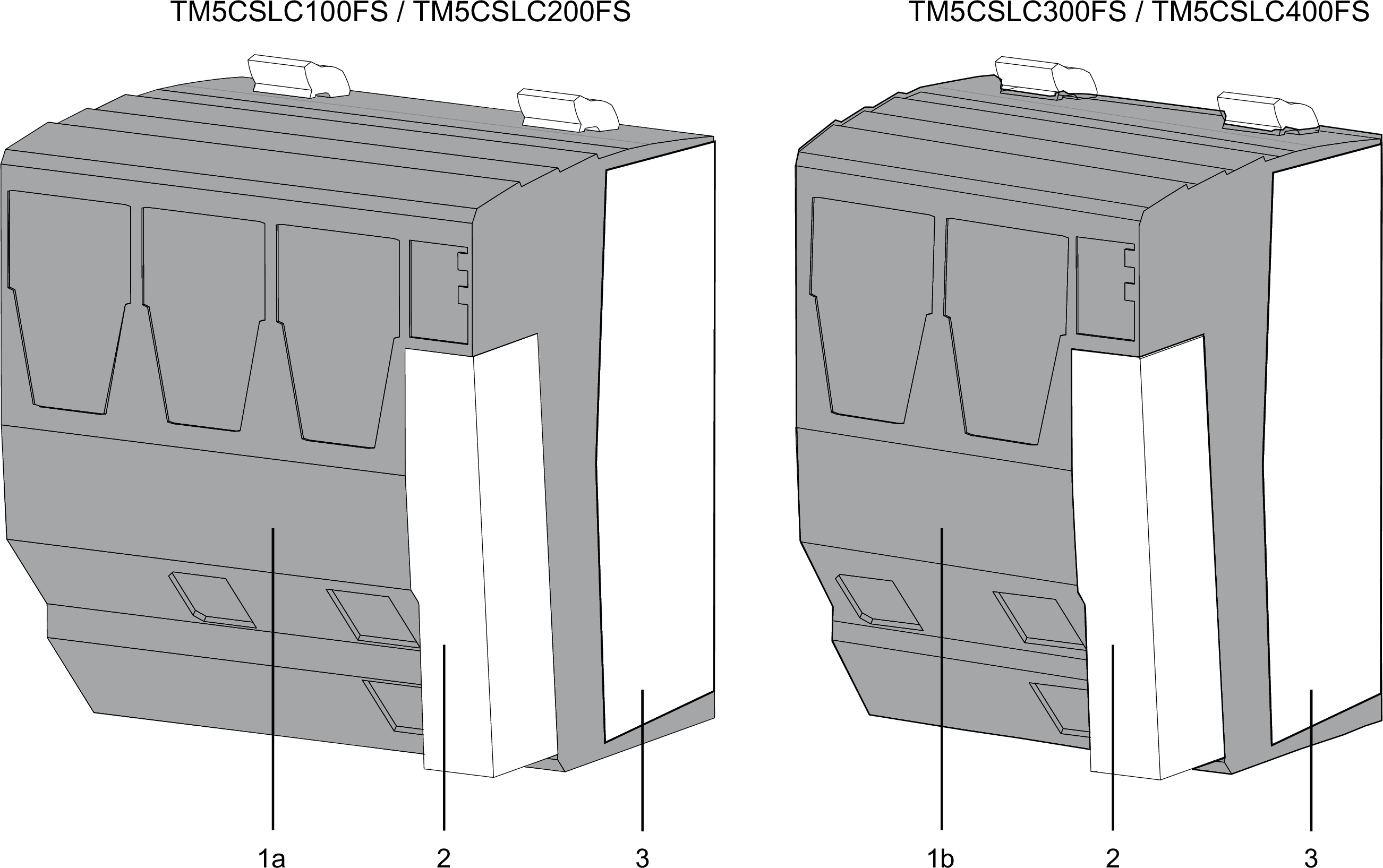

The figure below presents the Safety Logic Controller in combination with the required accessories:

The table below presents the references for the Safety Logic Controllers and the terminal block:

Number	Reference	Description	Color
1a	TM5CSLC100FS	SLC 100 Sercos III	red
1a	TM5CSLC200FS	SLC 200 Sercos III
1b	TM5CSLC300FS	SLC 300 Sercos III
1b	TM5CSLC400FS	SLC 400 Sercos III
2	TM5ACTB52FS⁽¹⁾	TM5 terminal block, 12-pin, safety coded	red
3	TM5ACLPR10⁽¹⁾	TM5 Locking plate	white
(1) Included in delivery of TM5CSLC100FS / TM5CSLC200FS / TM5CSLC300FS / TM5CSLC400FS

NOTE: A memory key is required for operation of the Safety Logic Controller, and is sold separately. For more information concerning the role of the memory key in the Safety Logic Controller system, refer to Safety Logic Controller Memory Key in the Modicon TM5 Safety Logic Controller TM5CSLC•00FS Hardware Guide.
