Safety Terminal Block Presentation

TM5ACTB5FFS Features

TM5STI4ATCFS Safety Analog Input module is wired by using the TM5ACTB5FFS Safety terminal block:

Features
Type of terminal block	16-pin, safety coded terminal block
Features	Tool-free wiring with push-in technology Simple wire release using lever Allows labeling of each terminal Allows plain text labeling Test access for standard probes Potential for customer coding

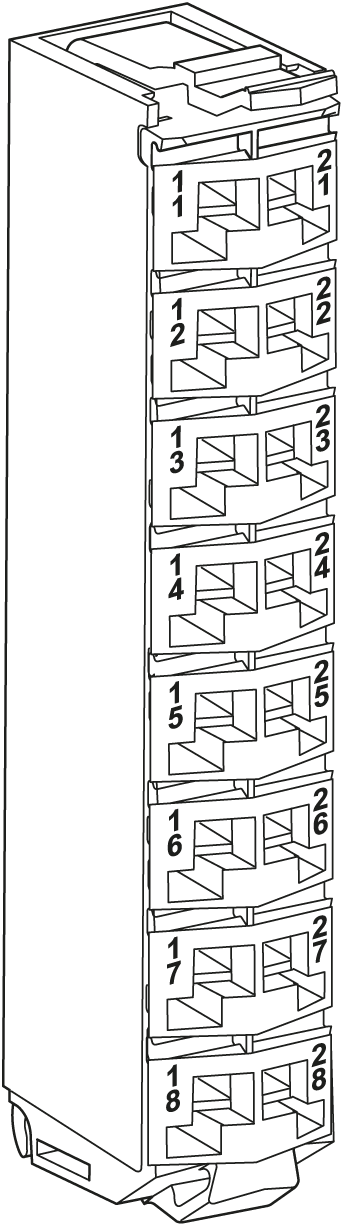

The following figure presents the TM5ACTB5FFS Safety terminal block:

The following table presents the reference for the Safety terminal block:

Reference	Description	Color
TM5ACTB5FFS	TM5 Safety terminal block, 16-pin, safety coded	Red

DANGER
	INCOMPATIBLE COMPONENTS CAUSE ELECTRIC SHOCK OR ARC FLASH Do not associate components of a slice that have different colors. Verify that correct terminal blocks (minimally, matching colors and correct number of terminals) are installed on the appropriate electronic modules. Failure to follow these instructions will result in death or serious injury.

This section describes the characteristics of the TM5ACTB5FFS Safety terminal block, you can also refer to TM5 Environmental Characteristics.

DANGER
	FIRE HAZARD Use only the correct wire sizes for the maximum current capacity of the I/O channels and power supplies. Failure to follow these instructions will result in death or serious injury.

WARNING
	UNINTENDED EQUIPMENT OPERATION Do not exceed any of the rated values specified in the characteristics tables. Failure to follow these instructions can result in death, serious injury, or equipment damage.

The following table lists the characteristics of the TM5ACTB5FFS:

Characteristics
Type of terminal block		Push-in terminal block
Distance between contacts	Left - right	4.2 mm / 0.16 in
Distance between contacts	Above - below	8.25 mm / 0.32 in
Contact resistance		≤ 5 mΩ
Maximum current carrying capacity of the connector		2 A / contact NOTE: The electrical characteristics of the modules must be respected.
Rated voltage		24 Vdc
Maximum voltage		50 Vdc
Connection cross section	Solid wire	0.08 mm² - 1.5 mm² / AWG 28 - 16
	Multi-wire	0.25 mm² - 1.5 mm²/ AWG 24 - 16
	With wire cable ends	0.25 mm² - 0.75 mm² / AWG 24 - 20
Cable type		Copper wires only
