Device Module Description

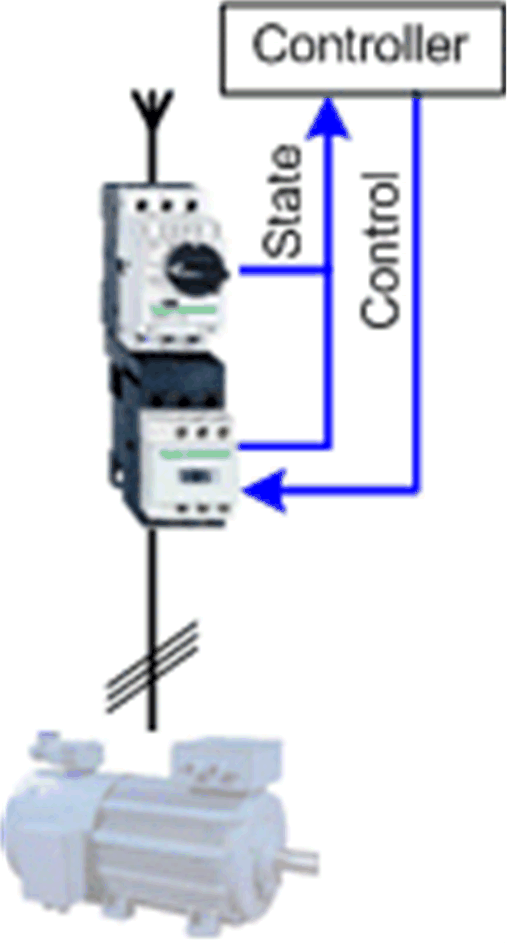

Graphical Representation

Motor_Ctrl_1D1S Device Module Description

The Device Module provides a ready-to-use coding template as a pattern to monitor and control a hardwired direct online motor starter through a EcoStruxure Machine Expert controller.

The Device Module Motor_Ctrl_1D1S is represented by a function template and consists of a global variable list (GVL), and a program. After instantiation of the Device Module, these objects are added to your project. They appear with the name which has been assigned using Add Function From Template.

The GVL provides the variables which are used to monitor and control a motor via hardwired I/Os in one direction with one speed.

The program provides the following features:

  • monitor the state of the motor starter

  • control the motor in manual mode (latch mode)

  • control the motor in local mode (latch mode)

  • control the motor in auto mode (jog mode)
