Setting Up the QuickMotionProgramming Example for Training Purpose Using Virtual Axes

General

The following modifications are only for training purpose with virtual axes to get in touch with program functionality with only an LMC controller available.

WARNING
	UNINTENDED EQUIPMENT OPERATION Verify that no physical axes are connected to your test system. Failure to follow these instructions can result in death, serious injury, or equipment damage.

Modifications

Step	Action
1	Create a new QuickMotionProgramming project.

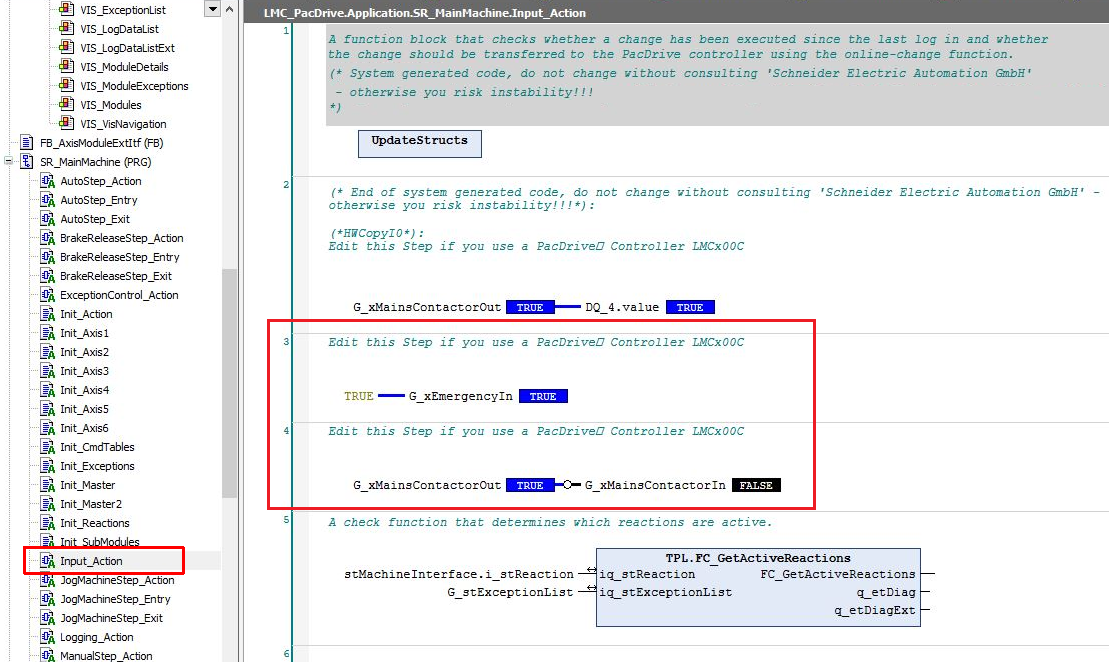

2	Edit step 3 and 4 of the SR_MainMachine.Input_Action section as shown in the following figure.
3	Proceed like described under Logging In, Running and Operating the Program.
