Exception Handling in Template

Overview

In the action ModuleFaults within the step ExceptionControl, the errors detected by the station are called and mapped to the exception handling of the template.

Call of Exception Action

Call of the exception action ModuleFaults within ExceptionControl:

SetException Method

In ModuleFaults, the errors detected by the station are mapped to the exception handling of the template by executing the method SetException from the template function block FB_ExceptionHandler:

Call Flow

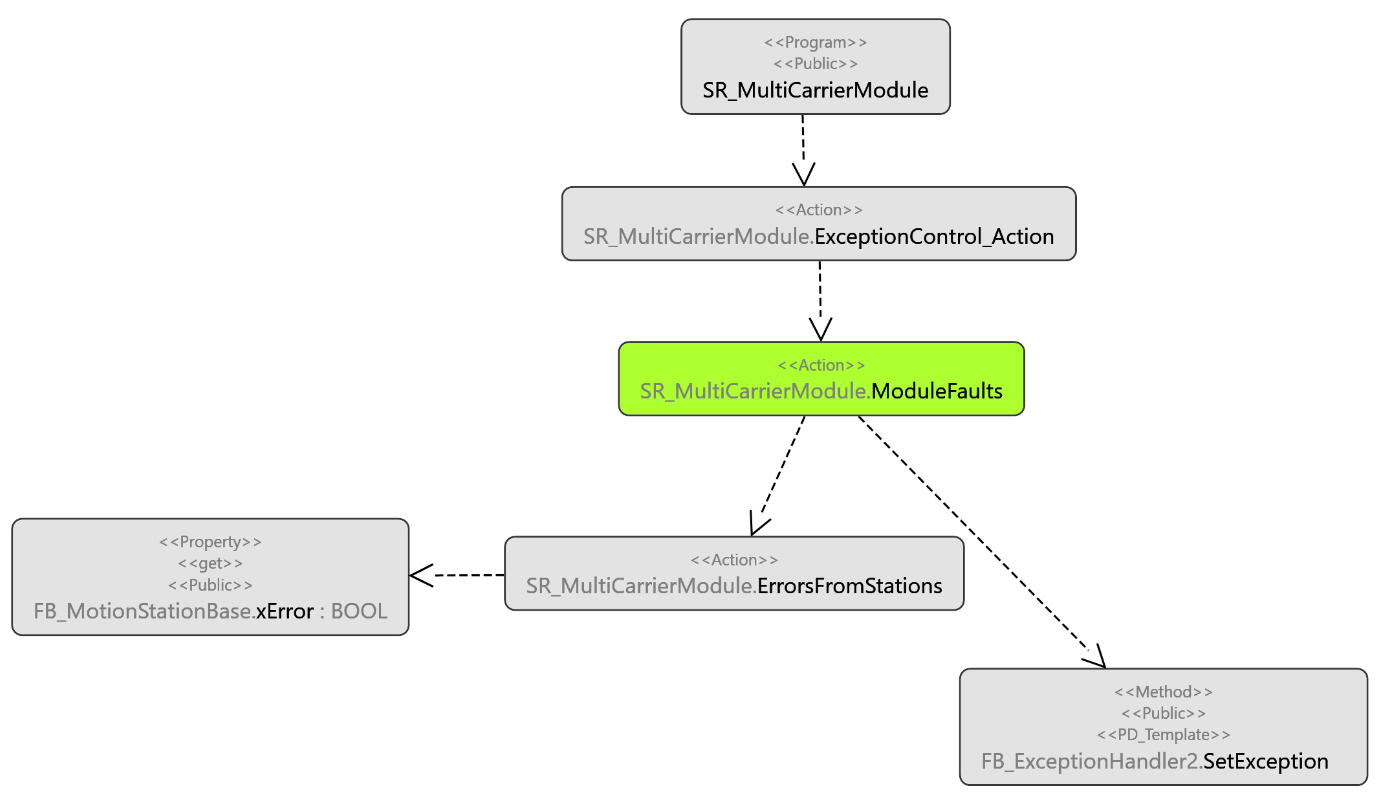

Overview of the call flow:
