UA_WriteList

Overview

Type:	Function block
Available as of:	V1.0.0.0

Functional Description

The function block UA_WriteList is used to write values of multiple nodes using a list of node handles.

NOTE: To help avoid an inconsistent response, do not modify parameters while the function block is executing (Busy = TRUE).

WARNING
	UNINTENDED EQUIPMENT OPERATION Do not modify input parameters while the Busy output is equal to TRUE. Failure to follow these instructions can result in death, serious injury, or equipment damage.

NOTE: ByteString is represented as a one-dimensional ARRAY OF BYTE on the client side. If ByteString is declared on the server side, use a buffer of type ARRAY OF BYTE and NodeDataType UATypeByte.

NOTE: The function block does not support the MaxAge feature specified by the OPC UA protocol.

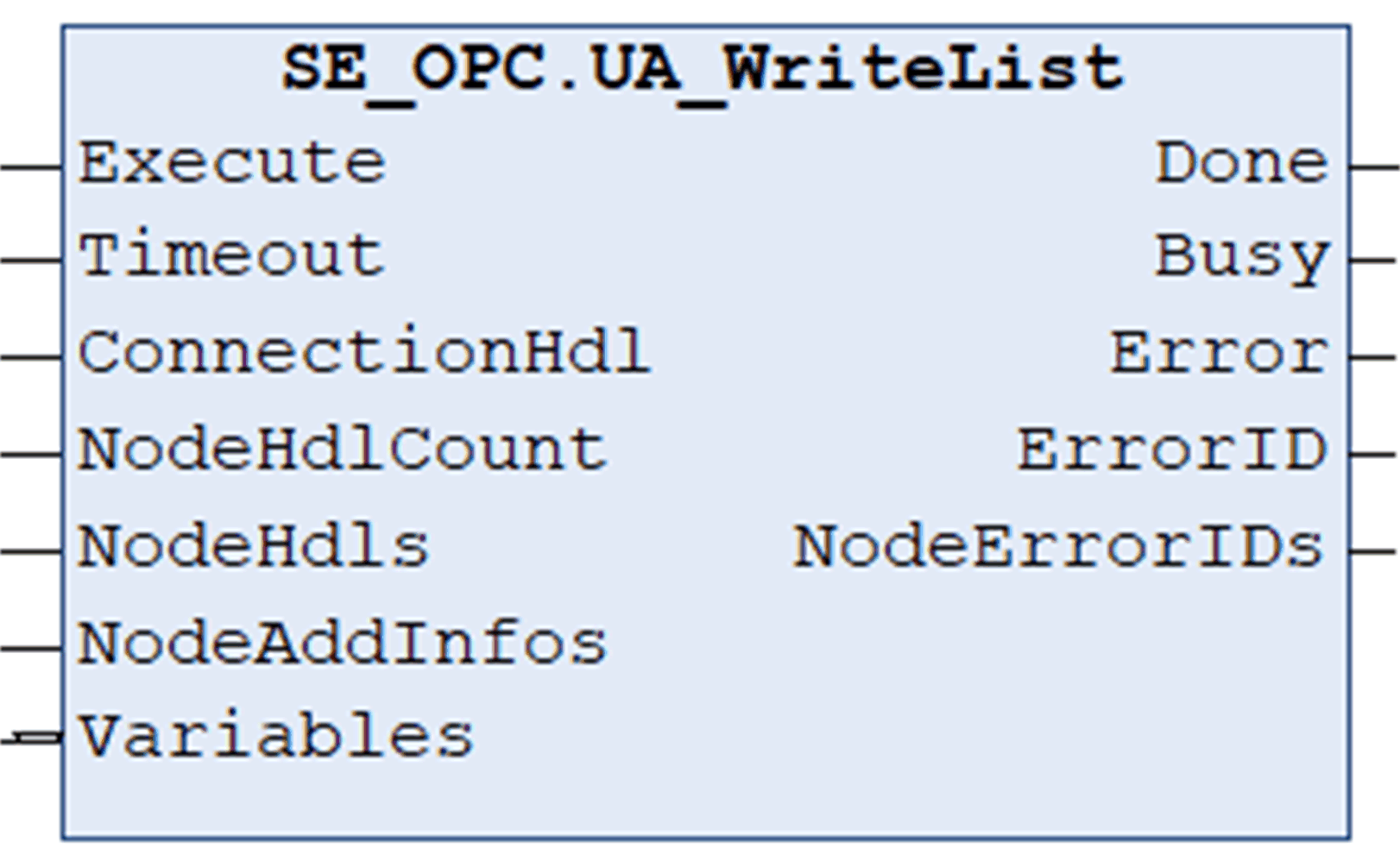

Interface

Input	Data type	Description
Execute	BOOL	Upon a rising edge, the function block is being executed. Also refer to Behavior of Function Blocks with the Input Execute.
Timeout	TIME	Maximum time to respond. Value range: 2 s...60 s If the value is out of range the upper or lower limit is applied. Default value: GPL.Timeout
ConnectionHdl	DWORD	Connection handle.
NodeHdlCount	UINT	Number of node handles in the NodeHdls array. Value range: 1..GPL.MAX_ELEMENTS_NODELIST]
NodeHdls	ARRAY [1..GPL.MAX_ELEMENTS_NODELIST] OF DWORD	Array containing node handles.
NodeAddInfos	ARRAY [1..GPL.MAX_ELEMENTS_NODELIST] OF UANodeAdditionalInfo	Array containing additional node information like attribute and index range.

Input/Output	Data type	Description
Variables	ARRAY [1..GPL.MAX_ELEMENTS_NODELIST] OF ST_Variable	Array containing information about the variables to read and the corresponding memory areas. NOTE: Do not process the variables until the function block indicates Done.

Output	Data type	Description
Done	BOOL	Indicates that the execution of the function block was completed successfully.
Busy	BOOL	Indicates that the execution of the function block is in progress.
Error	BOOL	Indicates that an error was detected during execution. NOTE: Even if Error indicates FALSE, verify the corresponding ErrorIDs before processing the namespace indexes.
ErrorID	ET_Result	Provides additional diagnostic information as a numeric value. For each specified namespace URI, a separate result is provided.
NodeErrorIDs	ARRAY [1..GPL.MAX_ELEMENTS_ NODELIST] OF ET_Result	Contains an error value for each element of the NodeHdls array.

Example

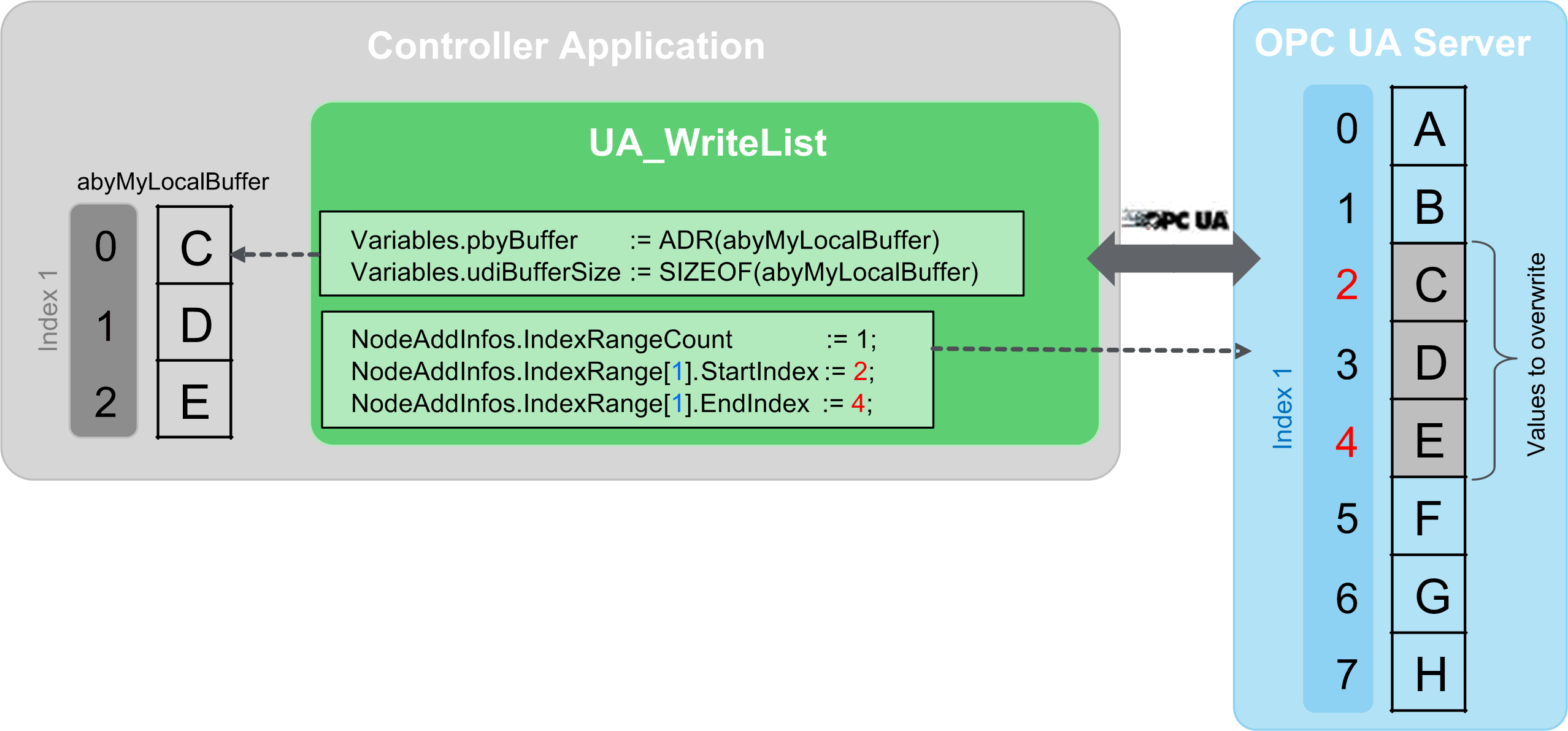

Following example illustrates how to write elements to an array published by the OPC UA server.

The inputs Variables.pbyBuffer and Variables.udiBufferSize describe the memory allocated inside the controller application containing the elements to write.

The input NodeAddInfos describes the elements of the OPC UA server to overwrite.
