UA_MonitoredItemAddList

Overview

Type:	Function block
Available as of:	V2.0.0.0

Functional Description

The function block UA_MonitoredItemAddList is used to add monitored items to a subscription using a list of node handles.

The function block updates the values of SamplingTime and QueueSize by using the input/output parameter MonitoringParameters.

The remaining input/output parameters are updated separately depending on the selected SyncMode:

For SyncMode UAMS_ControllerSync, call the function block UA_MonitoredItemOperateList for updating values.
For SyncMode UAMS_FwSync, the firmware updates the values automatically according to the interval configured with the input/output PublishingInterval for the subscription. The function block UA_SubscriptionProcessed can be called optionally to verify whether the new values have been published.

NOTE: The SyncMode UAMS_FwSync is only compatible using the NodeDataType UATypeIECSymbol to reference variables of base data types with a maximum size of 8 bytes. For further information on UATypeIECSymbol, refer to ET_VarType.

NOTE: A data type mismatch between an item to be monitored specified at the input/output variables and the corresponding variable declared on the server side cannot be detected. When a data type mismatch occurs, an implicit conversion is performed.

NOTE: ByteString is represented as a one-dimensional ARRAY OF BYTE on the client side. If ByteString is declared on the server side, use a buffer of type ARRAY OF BYTE and NodeDataType UATypeByte.

NOTE: The function block does not support the MaxAge feature specified by the OPC UA protocol.

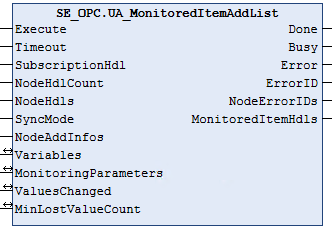

Interface

Input	Data type	Description
Execute	BOOL	Upon a rising edge, the function block is being executed. Also refer to Behavior of Function Blocks with the Input Execute.
Timeout	TIME	Maximum time to respond. Value range: 2 s...60 s If the value is out of range the upper or lower limit is applied. Default value: GPL.Timeout
SubscriptionHdl	DWORD	Subscription handle.
NodeHdlCount	UINT	Number of node handles in the NodeHdls array. Value range: 1..GPL.MAX_ELEMENTS_NODELIST]
NodeHdls	ARRAY [1..GPL. MAX_ELEMENTS_MONITORLIST] OF DWORD	Array containing node handles.
SyncMode	UAMonitoringSyncMode	Synchronization mode.
NodeAddInfos	ARRAY [1..GPL. MAX_ELEMENTS_MONITORLIST] OF UANodeAdditionalInfo	Array containing additional node information like attribute and index range.

Input/Output	Data type	Description
Variables	ARRAY [1..GPL. MAX_ELEMENTS_MONITORLIST] OF UAMonitoredVariables	Array containing information about the variables to read and the corresponding memory areas. NOTE: Do not process the variables until the function block indicates Done.
MonitoringParameters	ARRAY [1..GPL. MAX_ELEMENTS_MONITORLIST] OF UAMonitoringParameter	Array containing monitoring parameters for each valid element of the NodeHdls array.
ValuesChanged	ARRAY [1..GPL. MAX_ELEMENTS_MONITORLIST] OF BOOL	Indicates that the values of the monitored item have been modified.
MinLostValueCount	ARRAY [1..GPL. MAX_ELEMENTS_MONITORLIST] OF UINT	Indicates the number of missed values if the queue size is greater than 1 in case the queue size on the client side is smaller than the queue size on the server side.

Output	Data type	Description
Done	BOOL	Indicates that the execution of the function block was completed successfully.
Busy	BOOL	Indicates that the execution of the function block is in progress.
Error	BOOL	Indicates that an error was detected during execution. NOTE: Even if Error indicates FALSE, verify the corresponding ErrorIDs before processing the namespace indexes.
ErrorID	ET_Result	Provides additional diagnostic information as a numeric value. For each specified namespace URI, a separate result is provided.
NodeErrorIDs	ARRAY [1..GPL. MAX_ELEMENTS_MONITORLIST] OF ET_Result	Contains an error value for each element of the NodeHdls array.
MonitoredItemHdls	ARRAY [1..GPL. MAX_ELEMENTS_NODELIST] OF DWORD	Contains monitored item handles for each valid element of the NodeHdls array.
