Custom-Tuning (Heating) - FB_HeatingControl2
Overview
This procedure describes how to set the P and I parameters manually.
|
Step |
Action |
|---|---|
|
1 |
Set iq_etSelectParameterSetPID to ET_ParameterSetPID.Custom. |
|
2 |
Set rTn andrTv to 0. Also refer to ST_PID2. |
|
3 |
Increase rKp until the system begins to oscillate. |
|
4 |
Decrease rKp until the system does not oscillate. |
|
5 |
Decrease rKp by another few points. |
|
6 |
Set rTn, beginning with a large value for time, for example 100 s (system dependent) and verify that the system does not oscillate. |
|
7 |

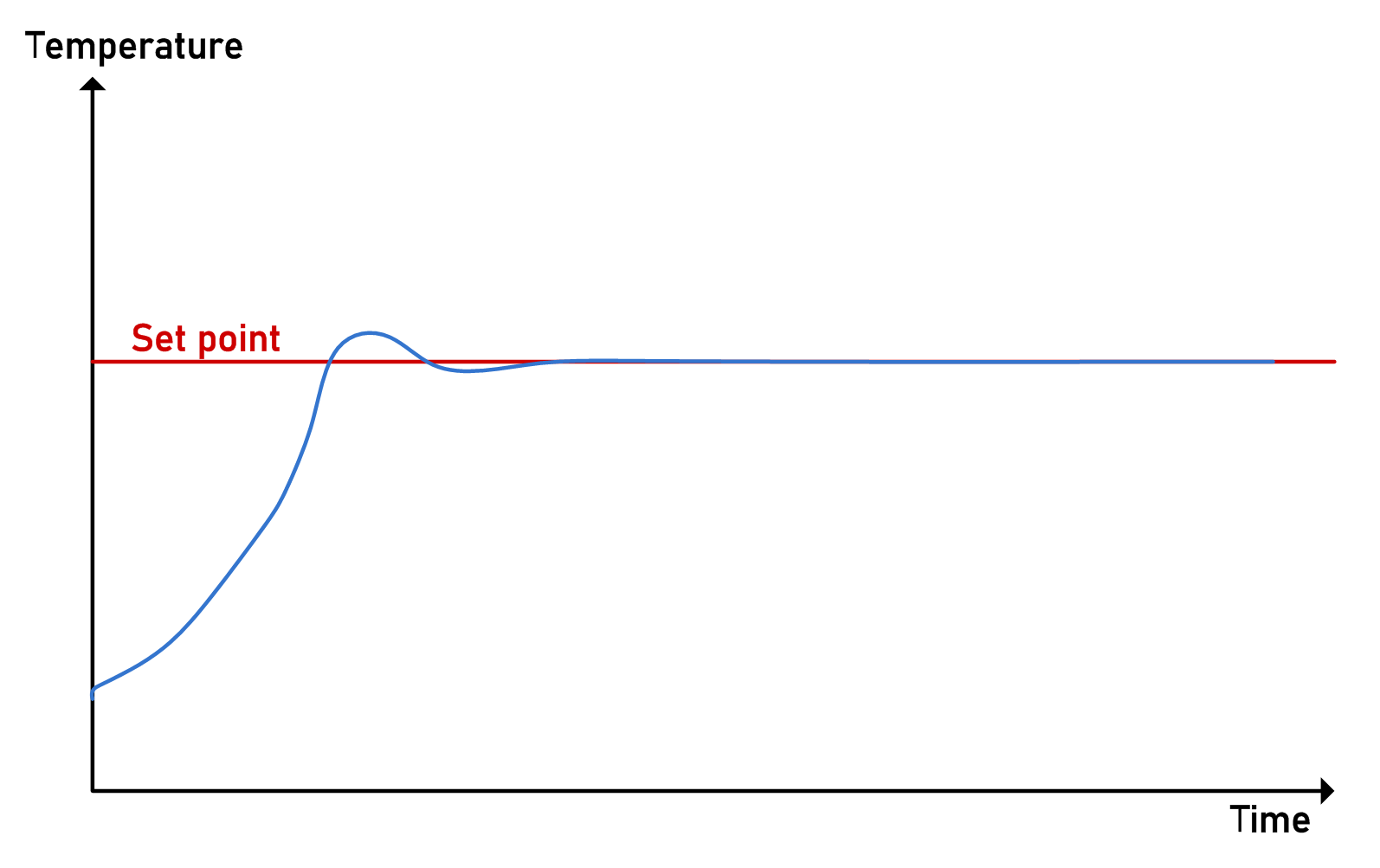

Decrease rTn until the system is stable and without oscillation. Result: The figure displays a typically correct regulation.
|
Also refer to FB_HeatingControl2.
