ST_GeometricSize

Overview

Type:

Structure

Available as of:

V1.1.0.0

Inherits from:

–

Description

The structure ST_GeometricSize contains the parameters to define the size of a target.

In accordance with the target shape selected in ET_GeometricShape, you can use the parameters defined below.

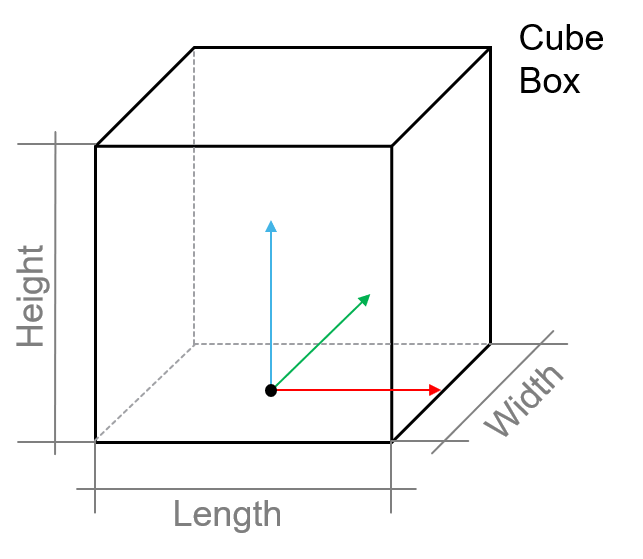

For the Cube shape and the Box shape, you can describe the outer dimensions with the parameters lrLength, lrWidth and lrHeight. The wall thickness of a box is set to 0.3 mm.

Structure Elements

Name

Data type

Description

lrLength

LREAL

The length of a target in X direction.

lrWidth

LREAL

The width of a target in Y direction.

lrHeight

LREAL

The height of a target in Z direction.
