Hardware Architecture Overview

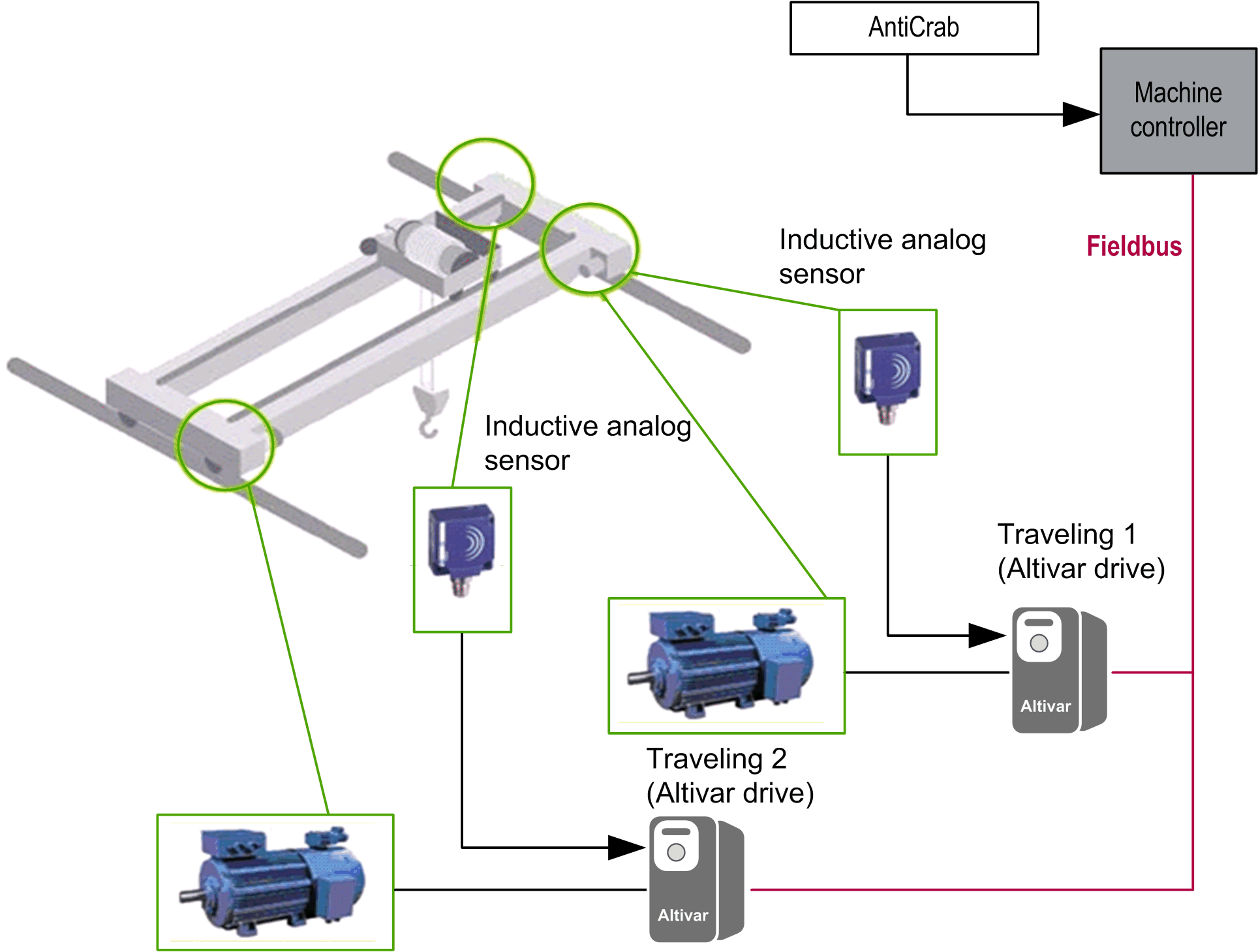

The following figure is the Machine View of Anti-crab in an industrial crane using two motors to move the bridge.
NOTE: Use identical drives for motors on both sides of the bridge.
A configuration with 2 drives and 2 motors is the most commonly used configuration. It uses 1 drive and 1 motor for each of the wheel trucks, or bogies, of the crane.
|
|
|
UNINTENDED EQUIPMENT OPERATION |
|
oEquip the bridge in industrial cranes with mechanical safeguards protecting the crane against de-railing and other damage. oDo not use the FB without the proper mechanical safeguards integrated into the crane application. |
|
Failure to follow these instructions can result in death, serious injury, or equipment damage. |
