FB_NearestTargetInsideArea - General Information
Overview
|
Type: |
Function block |
|
Available as of: |
V1.4.1.0 |
|
Inherits from: |
- |
|
Implements: |
IF_TargetSelectionStrategy |
This chapter provides information on:
Task
Search for the target within the tracking constraints that is nearest to a position to compare.
Description

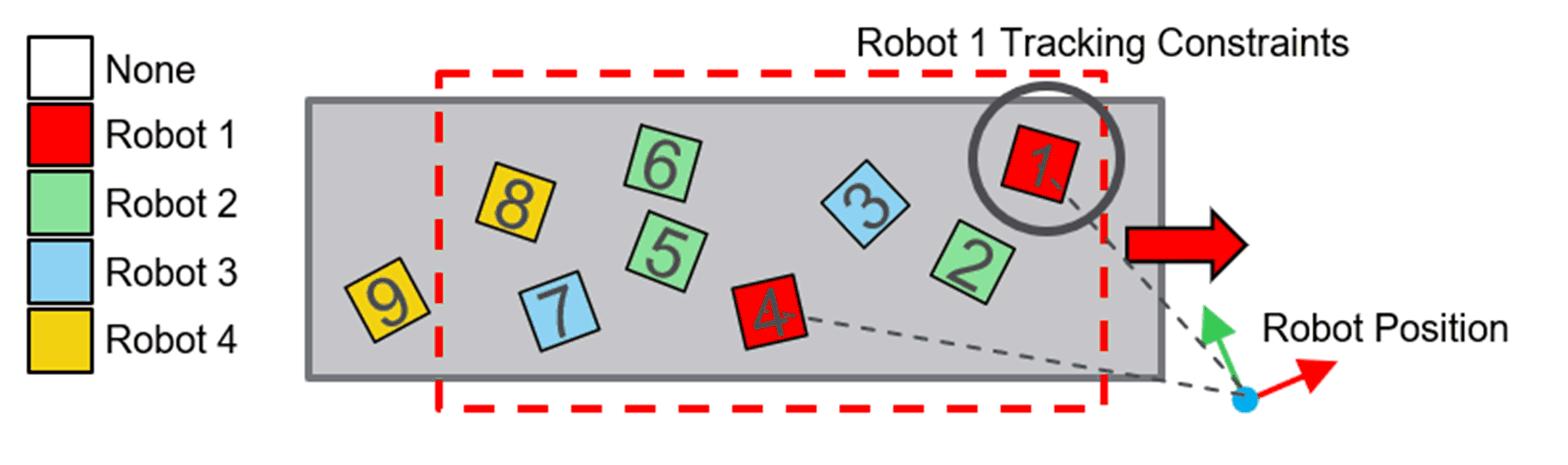

The algorithm searches for the target within the tracking constraints that is nearest to a position to compare. The orientation of the targets is not considered by this algorithm.
Other than the position, the owner of each target is also accounted in applying the algorithm, depending on the values of i_xSelectTargetsWithNoOwner and i_xSelectTargetsWithAnyOwner provided on the last successful call of the method SetData.
