TM5SDM8TBFS Wiring

Pin Assignments / Connection Example

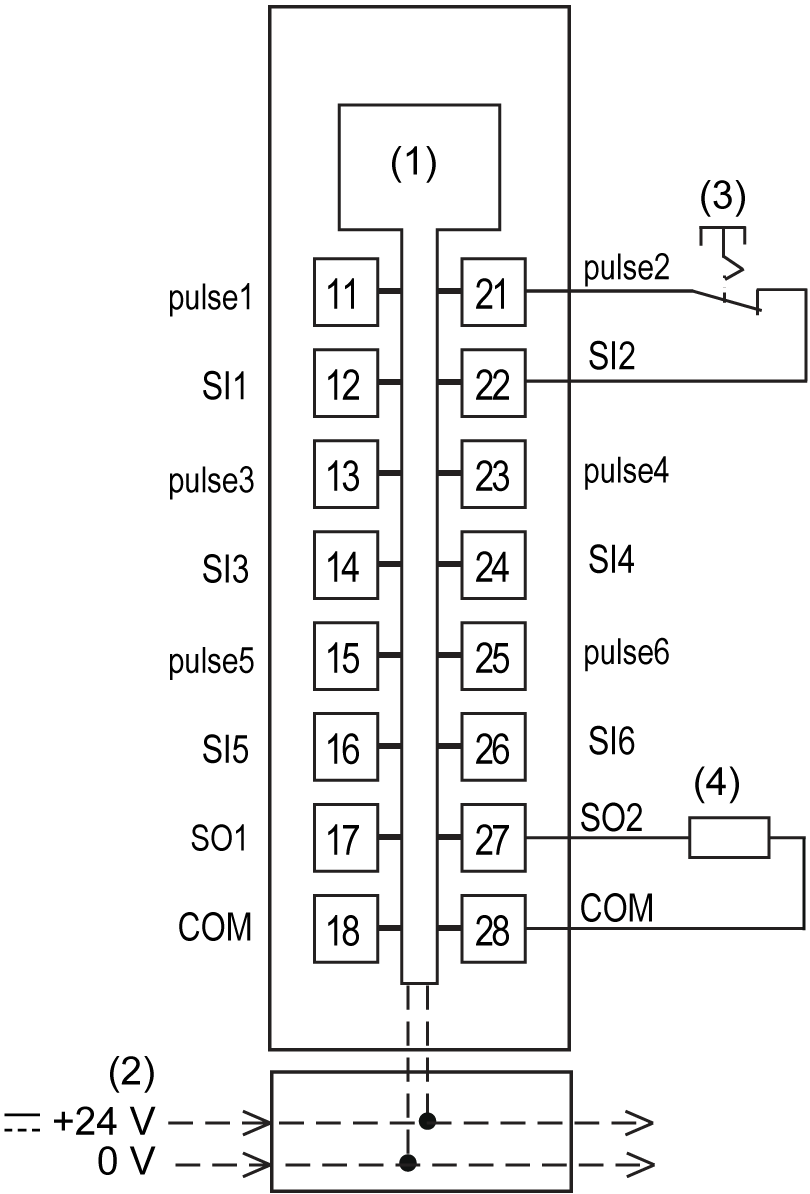

The following figure presents a connection example for the TM5SDM8TBFS:

1 Internal electronics

2 24 Vdc I/O power segment integrated into the bus bases

3 2-wire sensor

4 Actuator 24 Vdc

WARNING
	UNINTENDED EQUIPMENT OPERATION Do not connect wires to unused terminals and/or terminals indicated as “No Connection (N.C.)”. Failure to follow these instructions can result in death, serious injury, or equipment damage.

WARNING
	UNINTENDED EQUIPMENT OPERATION Use the sensor and actuator power supply only for supplying power to sensors or actuators connected to the module. Failure to follow these instructions can result in death, serious injury, or equipment damage.
