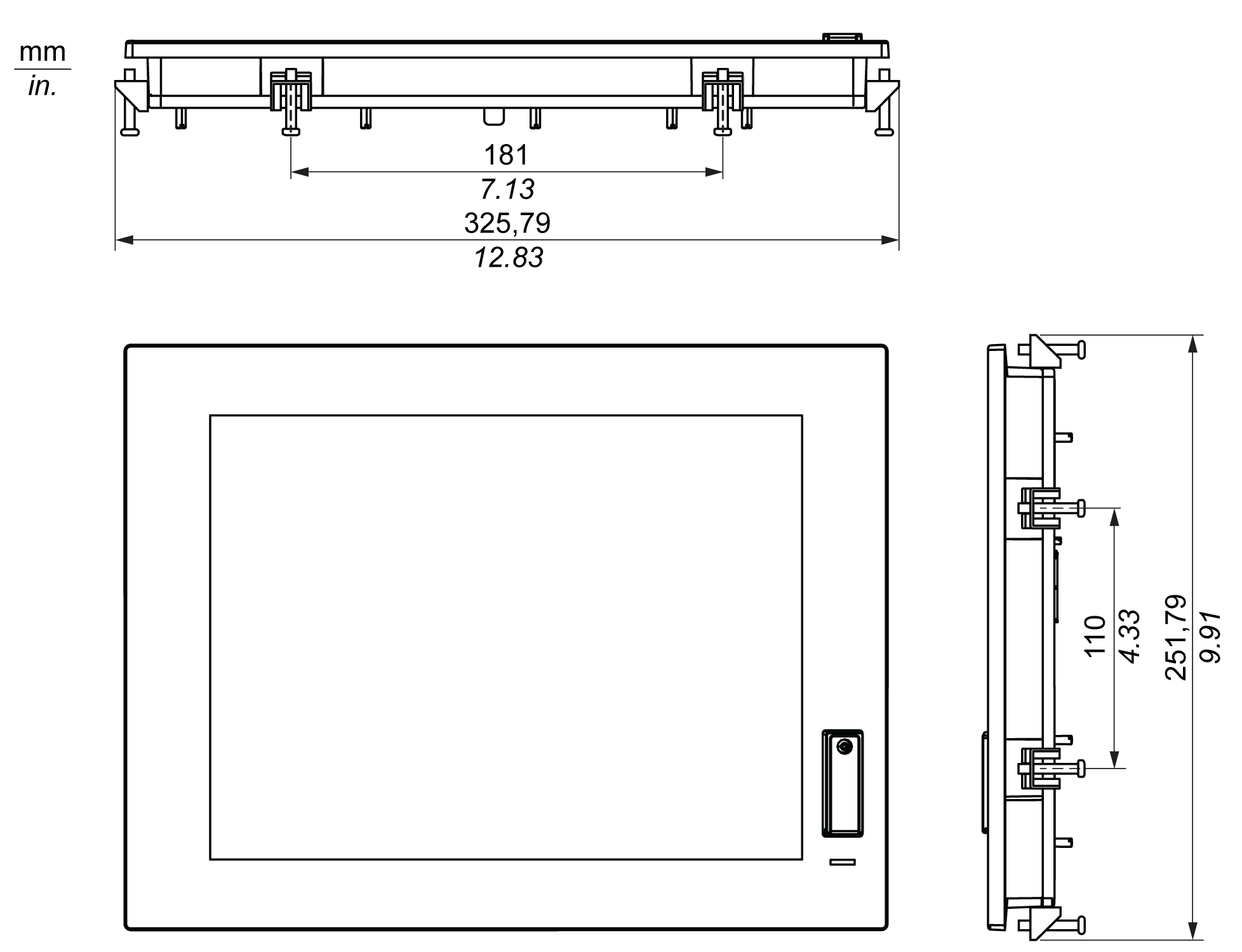

Display 4:3 12” Dimensions with Fasteners
Display W12” Dimensions with Fasteners

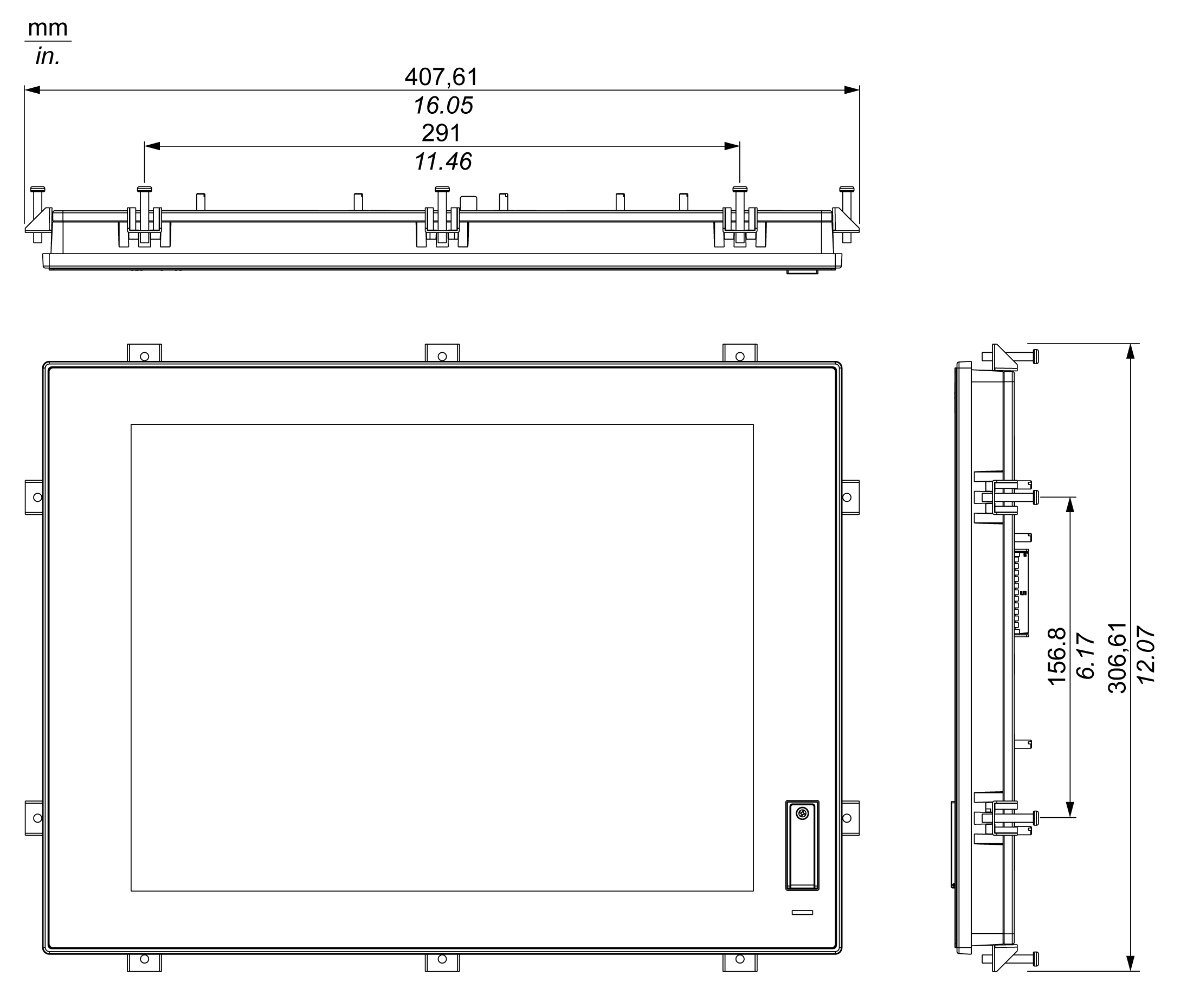

Display 4:3 15” Dimensions with Fasteners
Display W15” Dimensions with Fasteners
Display W19” Dimensions with Fasteners

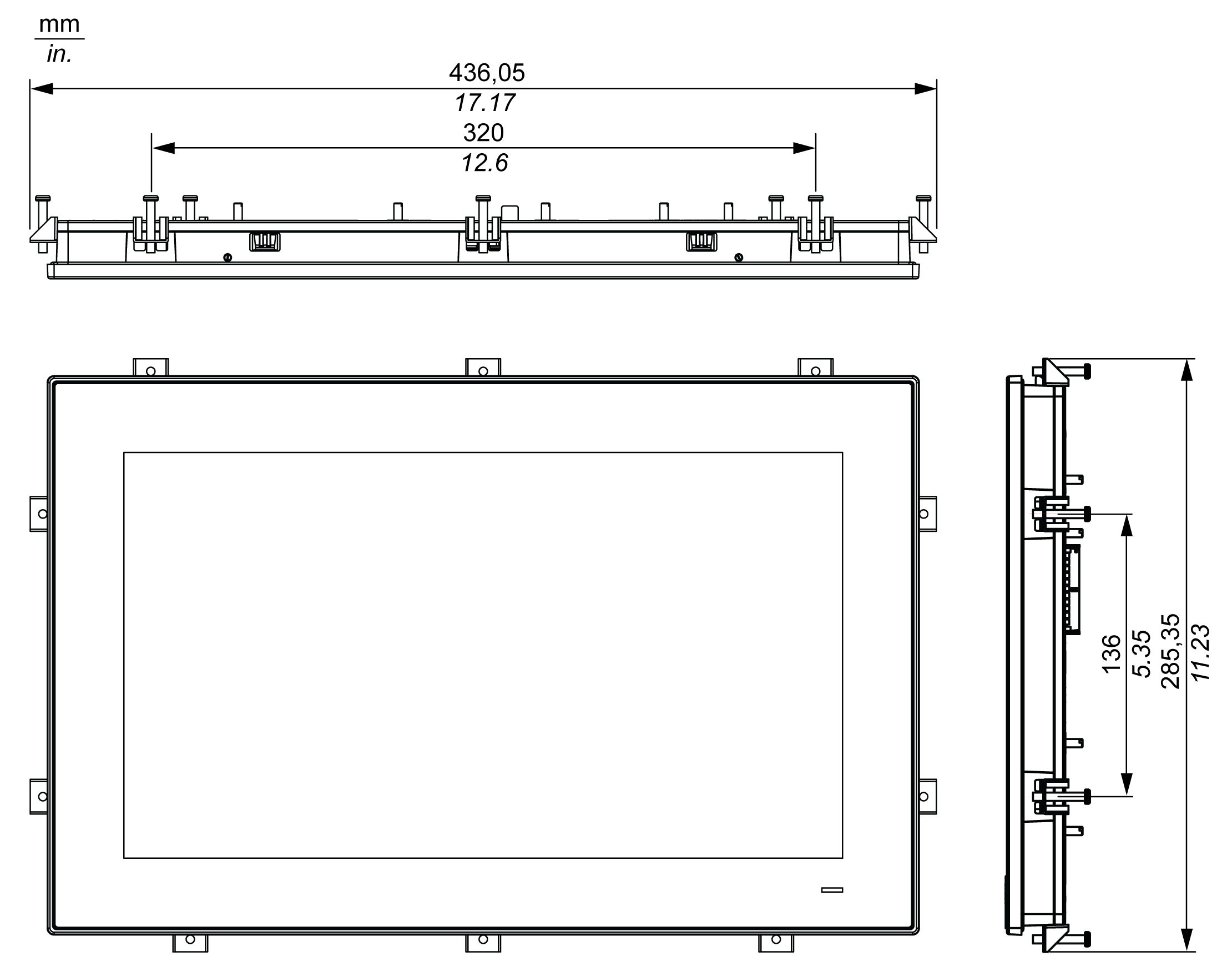

Display W22” Dimensions with Fasteners

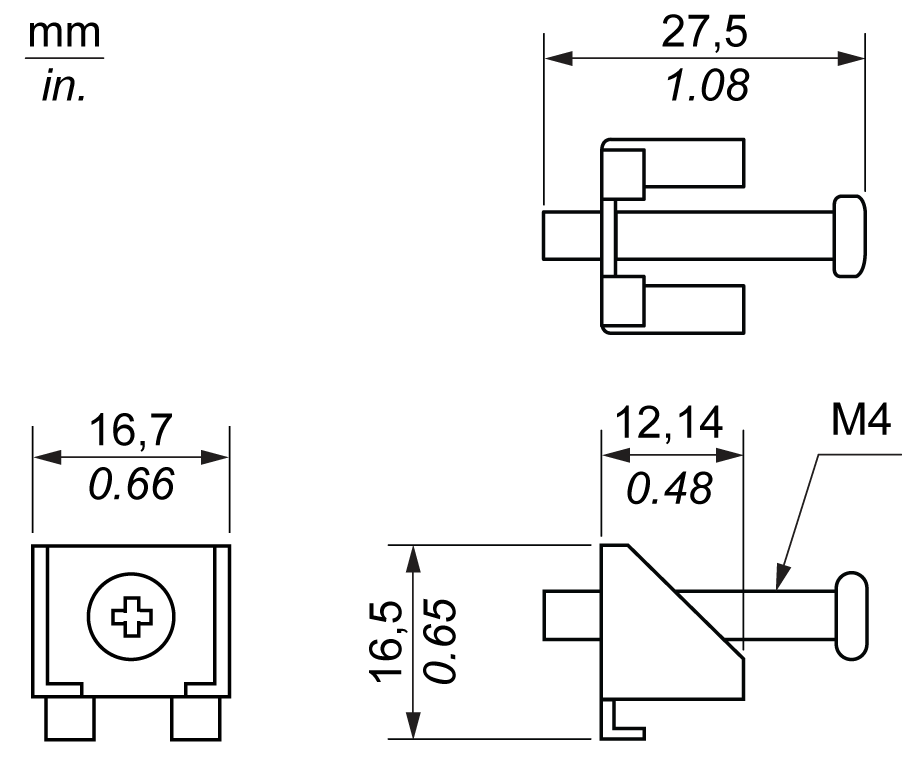

Installation Fastener Dimensions
The table indicates the general tolerance for the dimensions:
|
Nominal measurement range |
General tolerance acc. DIN ISO 2768 medium |
|---|---|
|
6...30 mm (0.236...1.181 in) |
±0.2 mm (±0.0078 in) |
|
30...80 mm (1.181...3.149 in) |
±0.25 mm (±0.0098 in) |
|
80...180 mm (3.149...7.08 in) |
±0.3 mm (±0.012 in) |
|
180...600 mm (7.08...23.62 in) |
±0.5 mm (±0.02 in) |
