FALLING HEAVY LOAD |
|

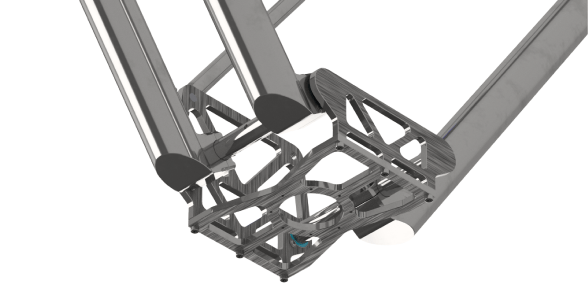

Secure in place the parallel plate and lower arm when loosening and removing the screws. |
|
Failure to follow these instructions can result in death, serious injury, or equipment damage. |
|
Step |
Action |
|---|---|
|
1 |

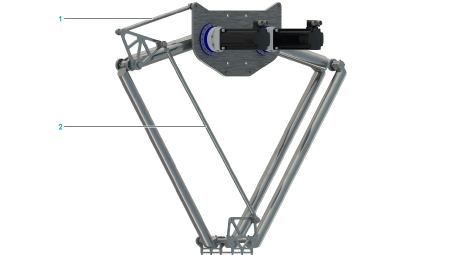

Remove the short rod (1).
|
|
2 |
Remove the long rod (2). |
|
3 |
Mount the new parallel rods as described in Mounting the Rods for Parallel Linkage. |
|
4 |
Slowly move the robot and verify the position of the particular articulation devices.
|
