Insert Jump / Insert Jump After
The SFC Editor > Insert Jump command is used in the SFC editor to insert a jump element before the currently selected element.
The new jump is automatically provided with a step specifying the target of the jump. Replace this string by the name of a step or by the label of a parallel branch which should be jumped to.

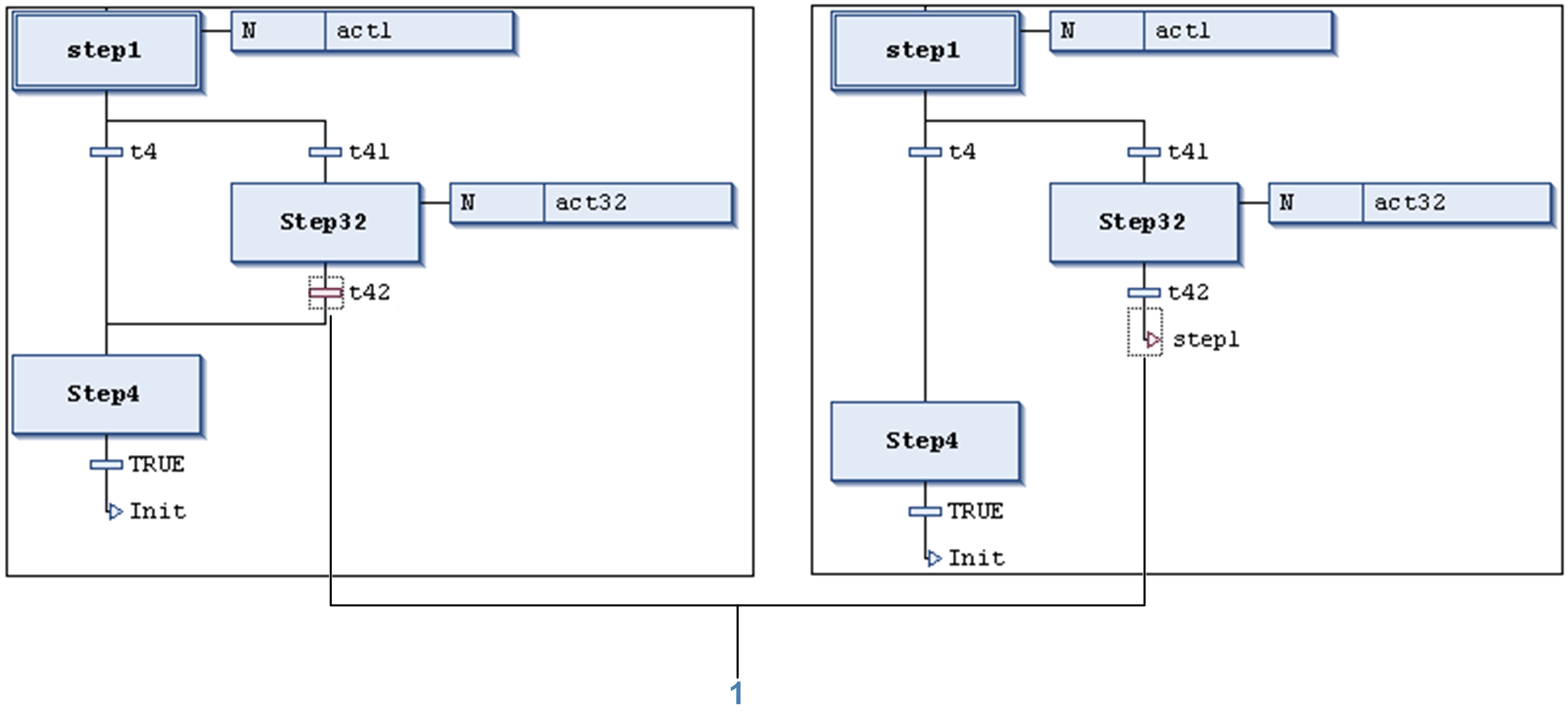

The SFC Editor > Insert Jump After command is used in the SFC editor to insert a jump element after the currently selected element.
Only use jumps at the end of an alternative branch.
The new jump is automatically provided with a step specifying the target of the jump. Replace this string by the name of a step or by the label of a parallel branch which should be jumped to.
1 Insert Jump After
