Technical Data of the Telescopic Axis Double

Mechanical Data of the Telescopic Axis Double

Category	Parameter	Unit	VRKP• YYYYY00007
General data	Maximum torque of the rotational axis with the Telescopic Axis Double	Nm (lbf-in)	3 (26.6)

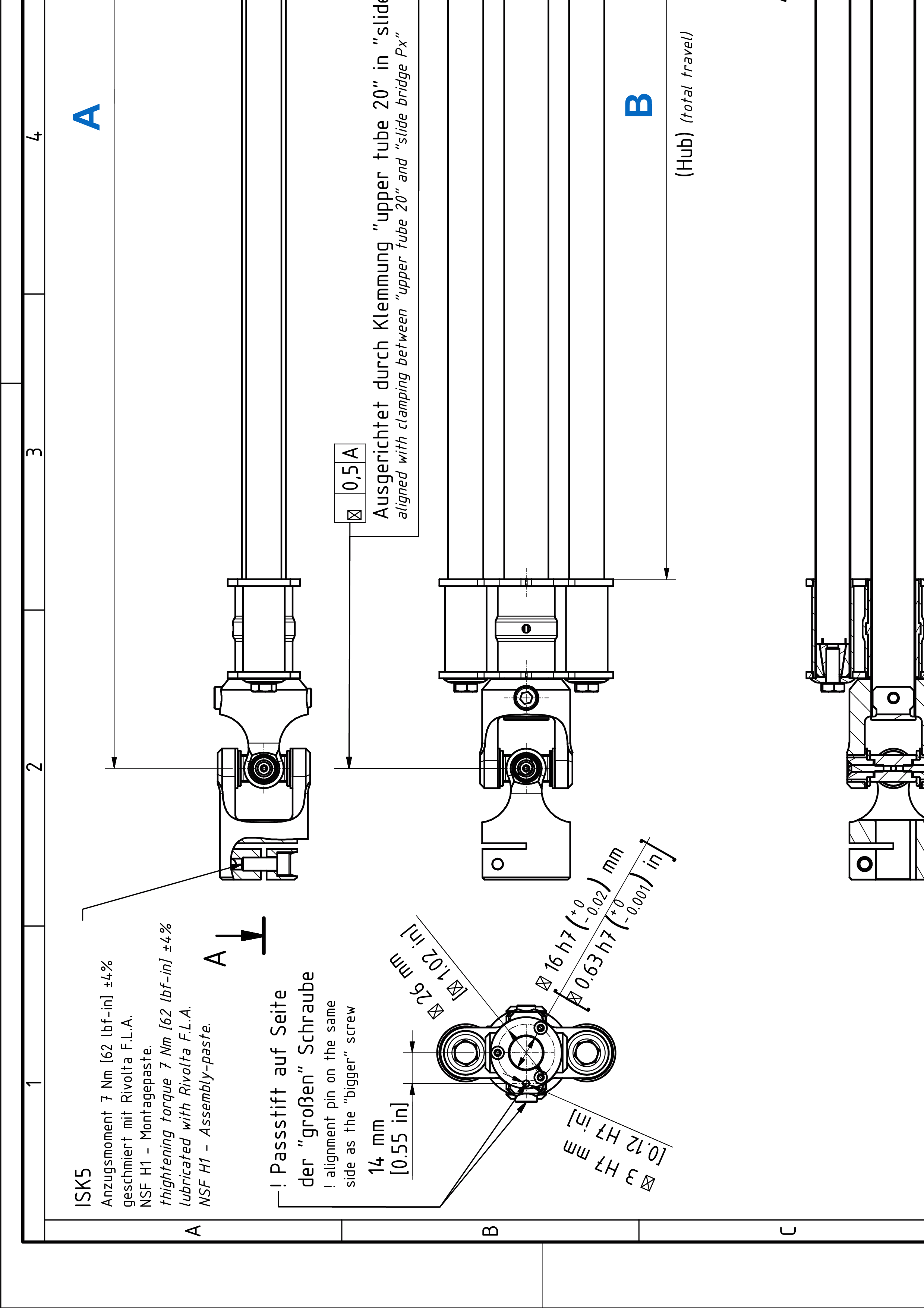

Dimension	Description	Unit	Robot type
A	Minimum length	mm (in)	458.4 (18)	610.4 (24)	686.4 (27)	766.4 (30)	842.4 (33)
B	Stroke	mm (in)	278.6 (11)	430.6 (17)	506.6 (20)	586.6 (23)	662.6 (26)

Dimension

Description

Unit

Robot type

VRKP2

VRKP4

VRKP5

VRKP6

VRKP6
•••••••E00

Minimum length

(in)

458.4

(18)

610.4

(24)

686.4

(27)

766.4

(30)

842.4

(33)

Stroke

(in)

278.6

(11)

430.6

(17)

506.6

(20)

586.6

(23)

662.6

(26)
