Basic Configurations

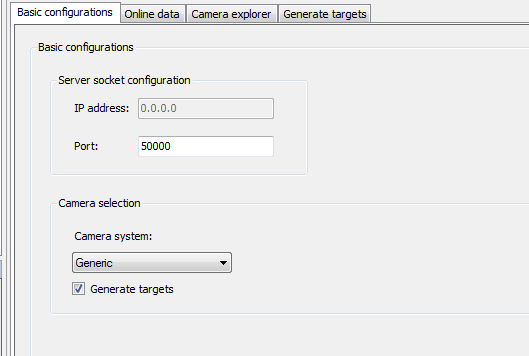

Basic Configurations Tab

This tab provides:

Element	Description
Server socket configuration	Communication parameters IP address: IP address of the PacDrive LMC Port: Port the TCP server should monitor Based on the communication parameters the server opens a socket and waits for receiving data.
Camera selection > Camera system	Generic If you select Generic, no IP address is needed. COGNEX If you select COGNEX, an IP address is needed and the additional Cognex camera tab is displayed. Refer to General Information on Cognex Camera Configuration.
Camera selection > Generate targets	If you select Generate targets, the tab Generate targets is displayed. Refer to Generate targets.

Element

Description

Server socket configuration

Communication parameters

Based on the communication parameters the server opens a socket and waits for receiving data.

Camera selection > Camera system

Generic

If you select Generic, no IP address is needed.
COGNEX

If you select COGNEX, an IP address is needed and the additional Cognex camera tab is displayed.

Refer to General Information on Cognex Camera Configuration.

Camera selection > Generate targets

If you select Generate targets, the tab Generate targets is displayed.
