XBT GK5330 Dimensions

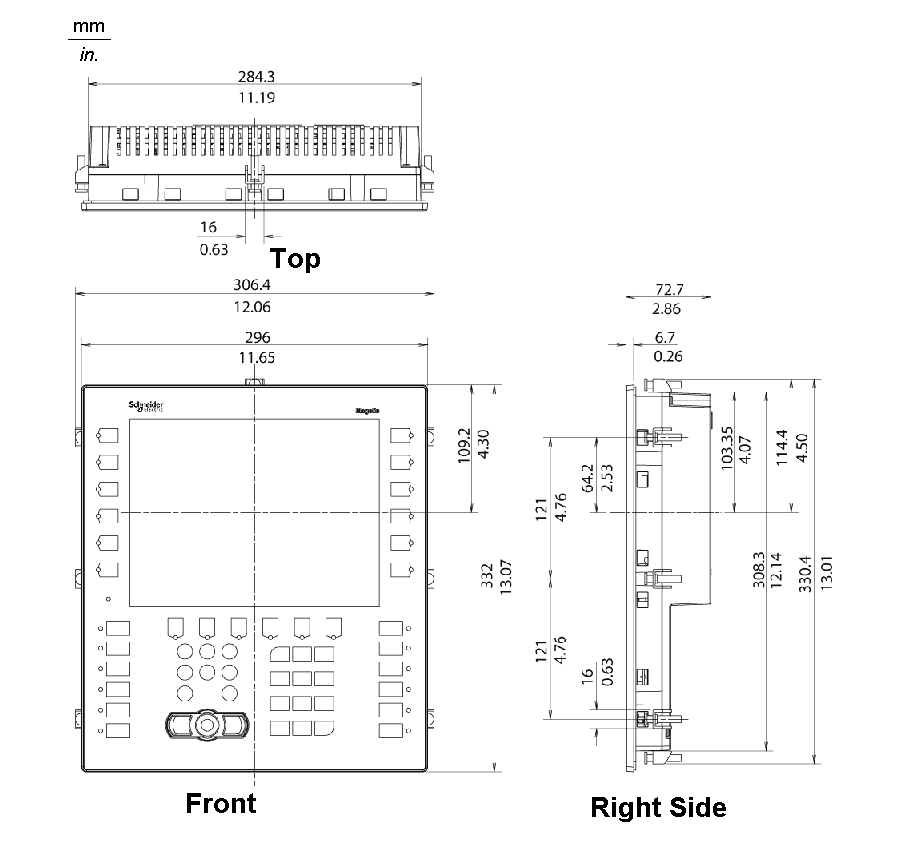

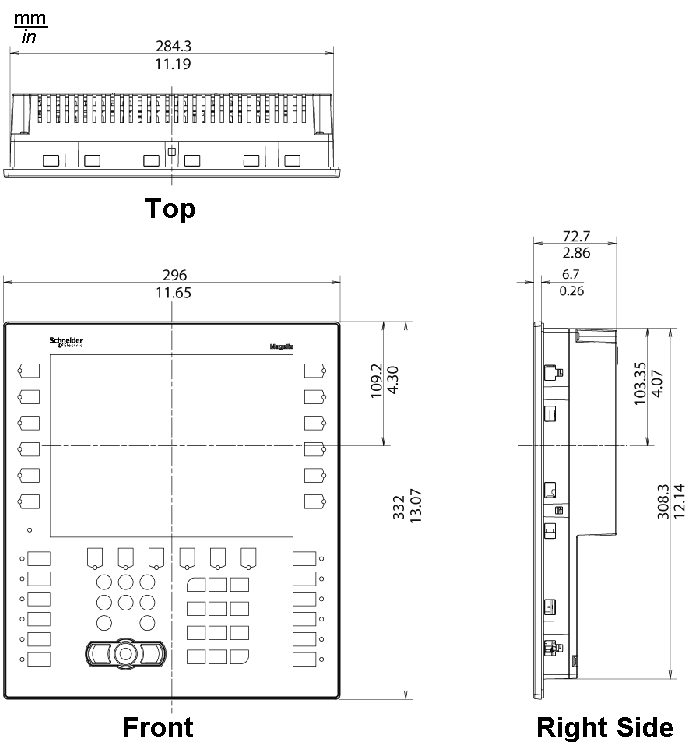

Dimensions of XBT GK5330

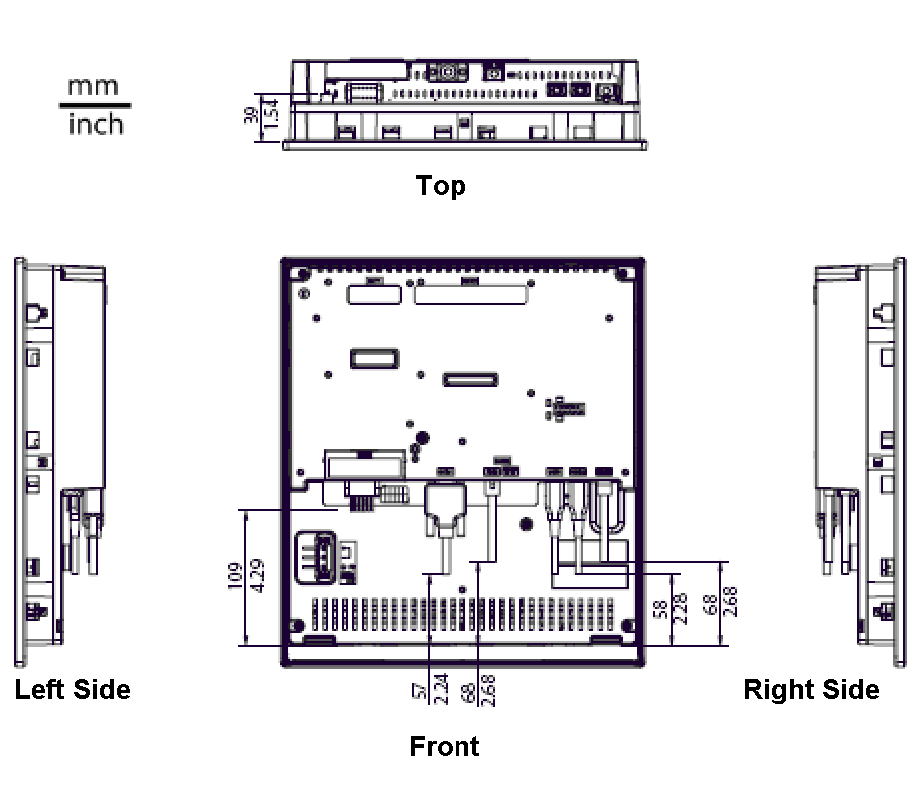

Dimensions of XBT GK5330 with Cables

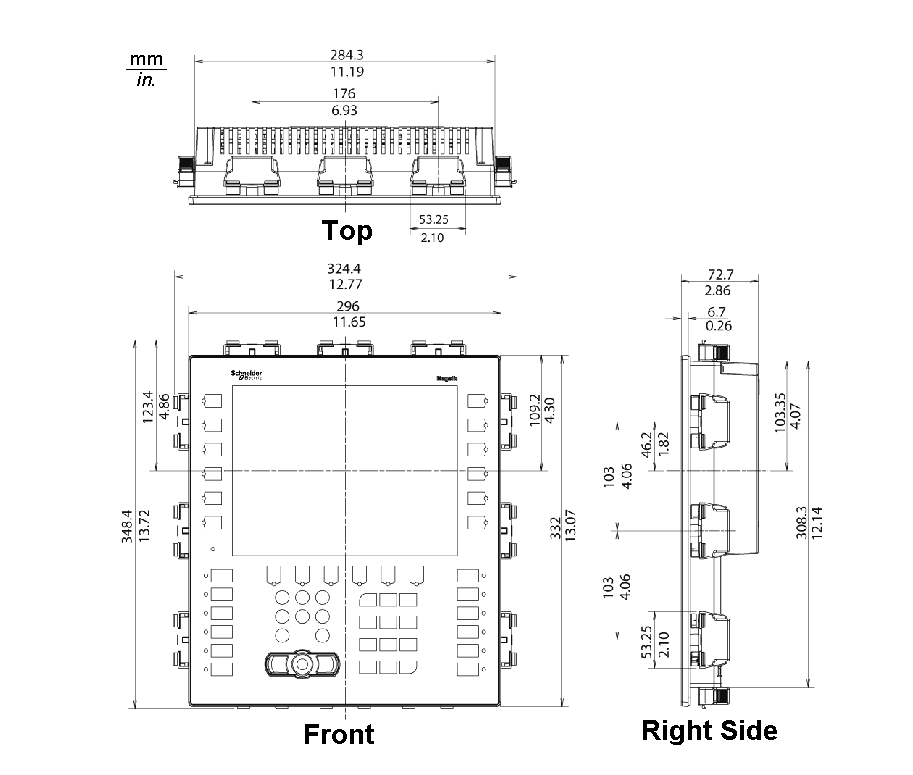

Installation of XBT GK5330 with Spring Clips






Installation of XBT GK5330 with Screw Fasteners






NOTE: XBT ZGFIX screw installation fasteners must be ordered separately.
