Direct Mounting on a Panel Surface

Mounting Hole Layout

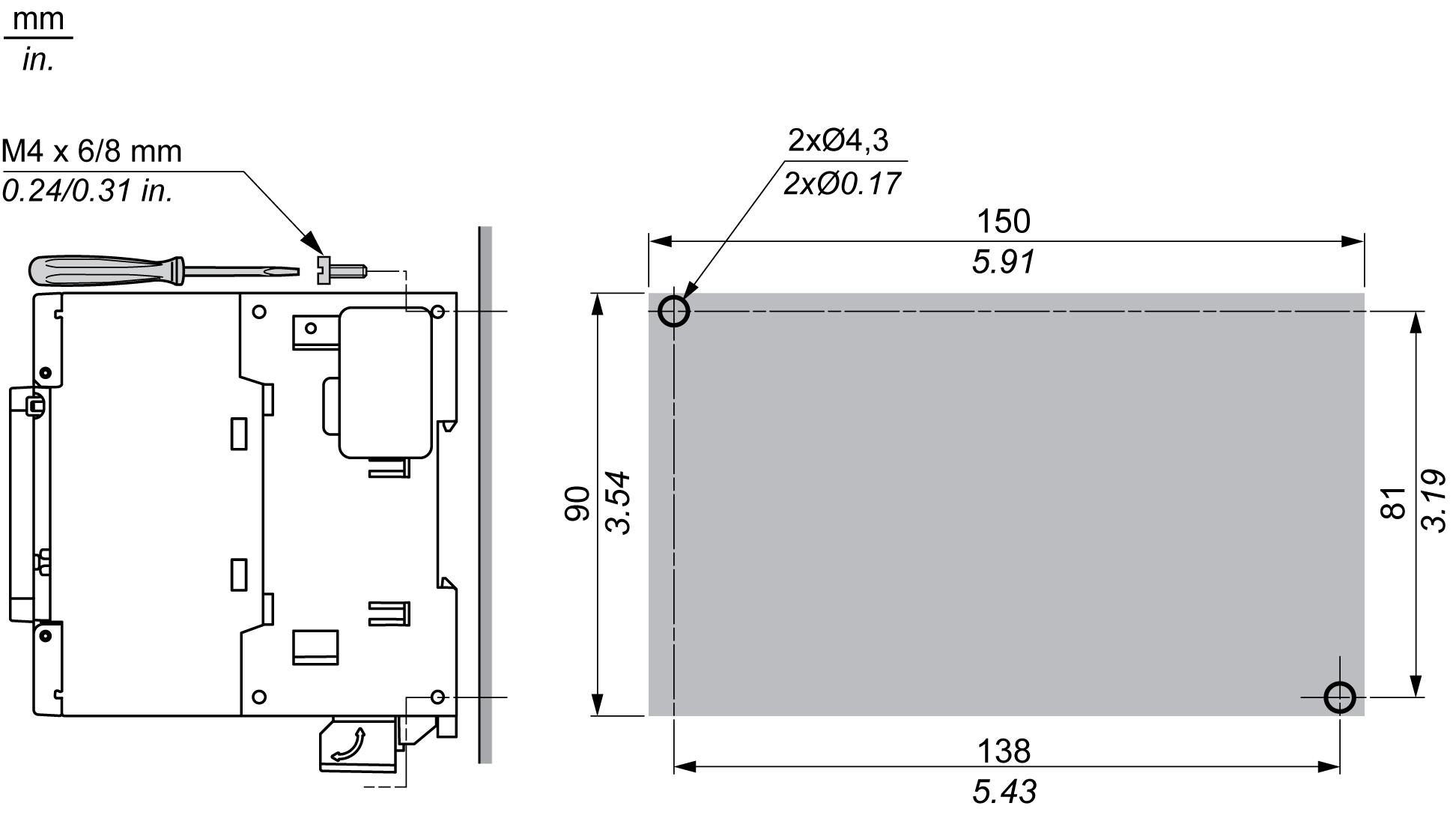

The following diagram shows the mounting hole layout for M241 Logic Controller with 24 I/O channels:

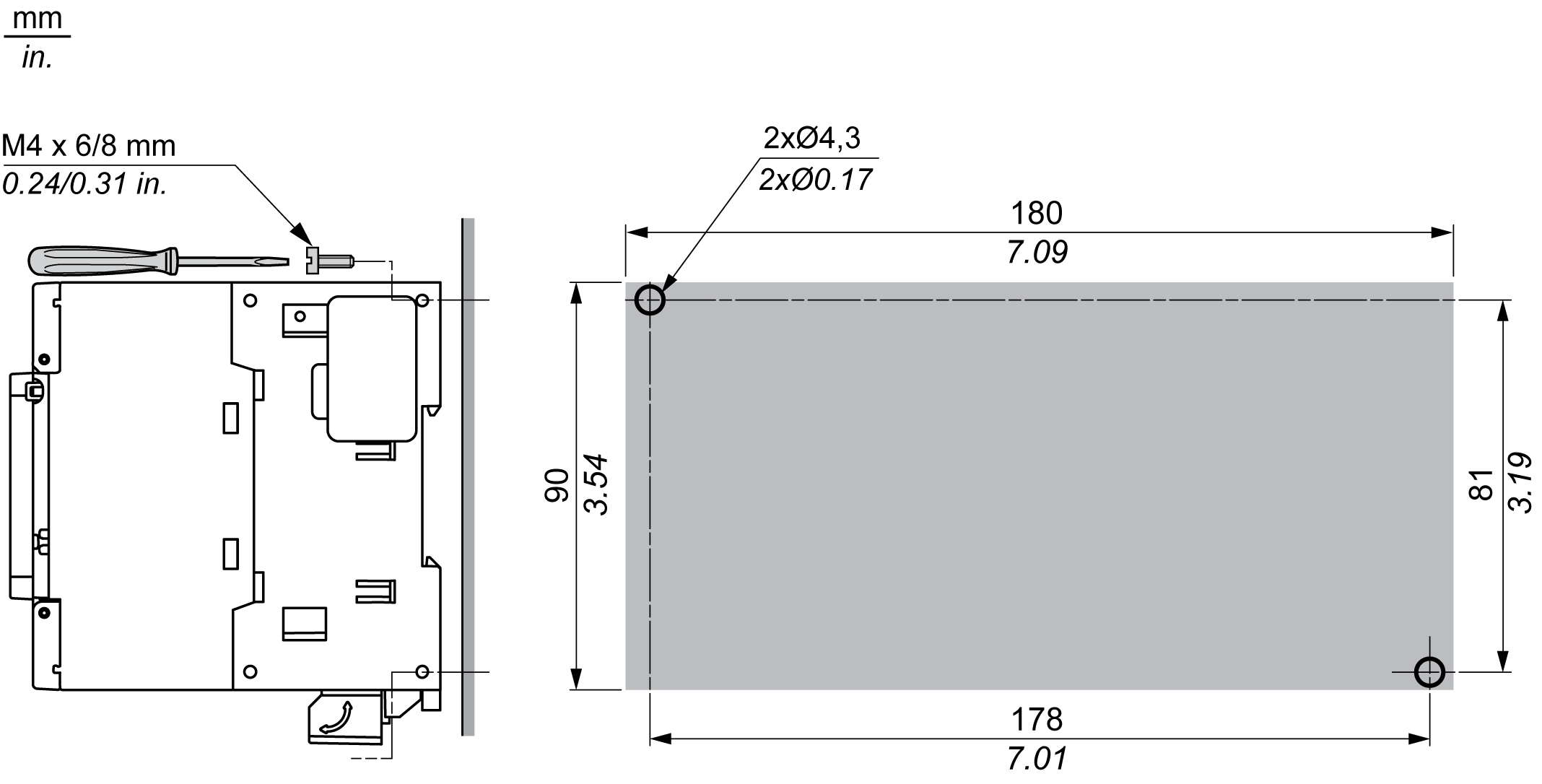

The following diagram shows the mounting hole layout for M241 Logic Controller with 40 I/O channels:
