TMSES4 Characteristics

Introduction

These are the general characteristics of the TMSES4 module.

See also Environmental Characteristics.

 WARNING
UNINTENDED EQUIPMENT OPERATION
Do not exceed any of the rated values specified in the environmental and electrical characteristics tables.
Failure to follow these instructions can result in death, serious injury, or equipment damage.

Dimensions

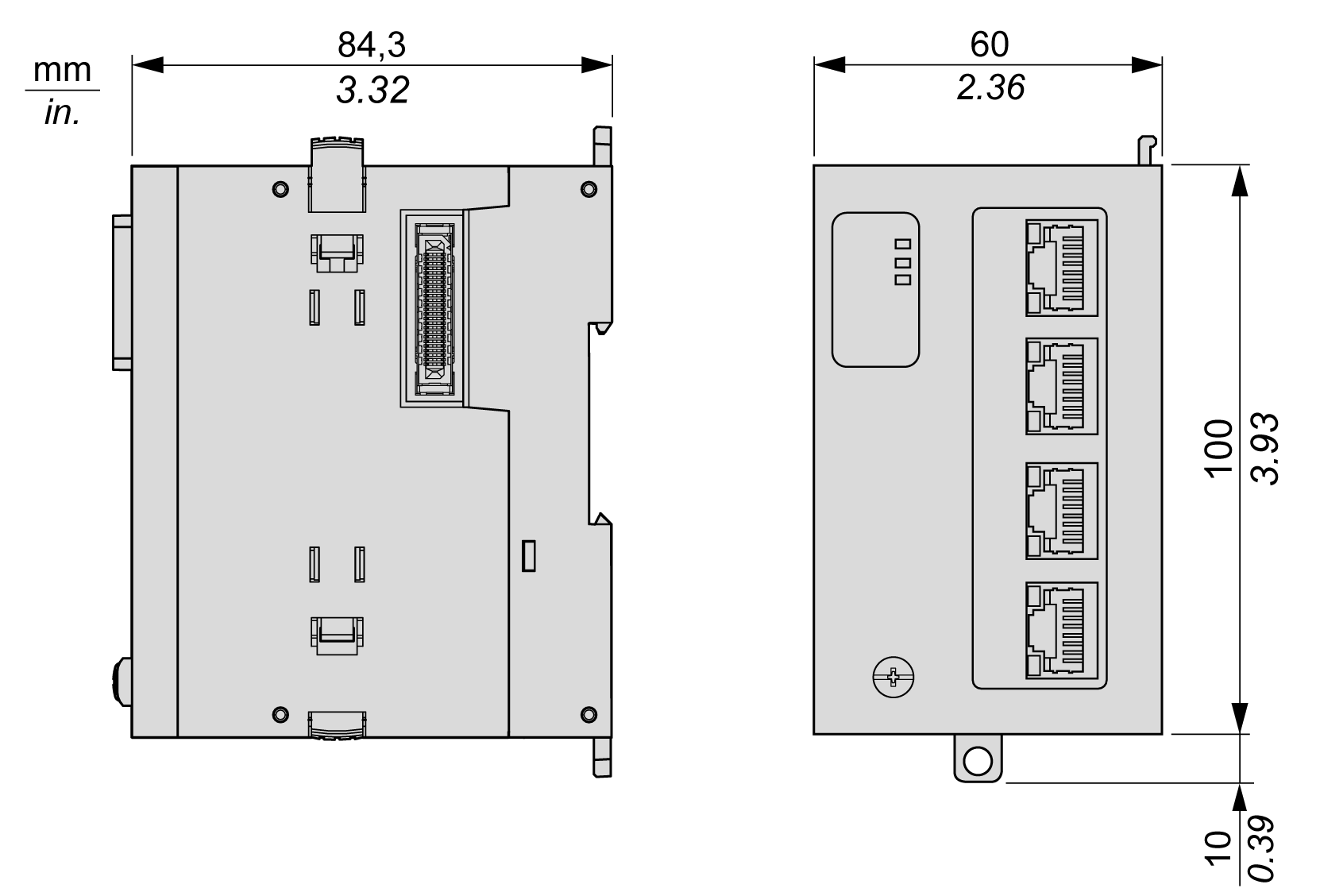

The following diagrams show the dimensions of the TMSES4 module:

General Characteristics

The table describes the general characteristics of the TMSES4 module:

Characteristic

Value

Consumption

200 mA

Power dissipation

7.85 W

Weight

403 g (14.22 oz)

Characteristics

The table describes the characteristics of the TMSES4 module:

Characteristics

Description

Standards

Ethernet

Connector type

RJ45

Baud rate

Supports Ethernet "10BaseT", "100BaseTX" and "1000BaseT" with auto-negotiation

Auto-crossover

MDIO (1)

Bus connectors

1 right connector to controller, male

1 left connector to next expansion, female

Installation

Left of the controller or after another TMSES4 expansion module.

(1) The controller supports MDIO auto-crossover cable function. It is not necessary to use special Ethernet crossover cables to connect devices directly to this port (connection without an Ethernet hub or switch.)
