ST_ModuleInterface - General Information
|
Type: |
Data structure |
|
Available as of: |
V1.0.2.0 |
|
Inherits from: |
- |
|
Versions: |
Current version |

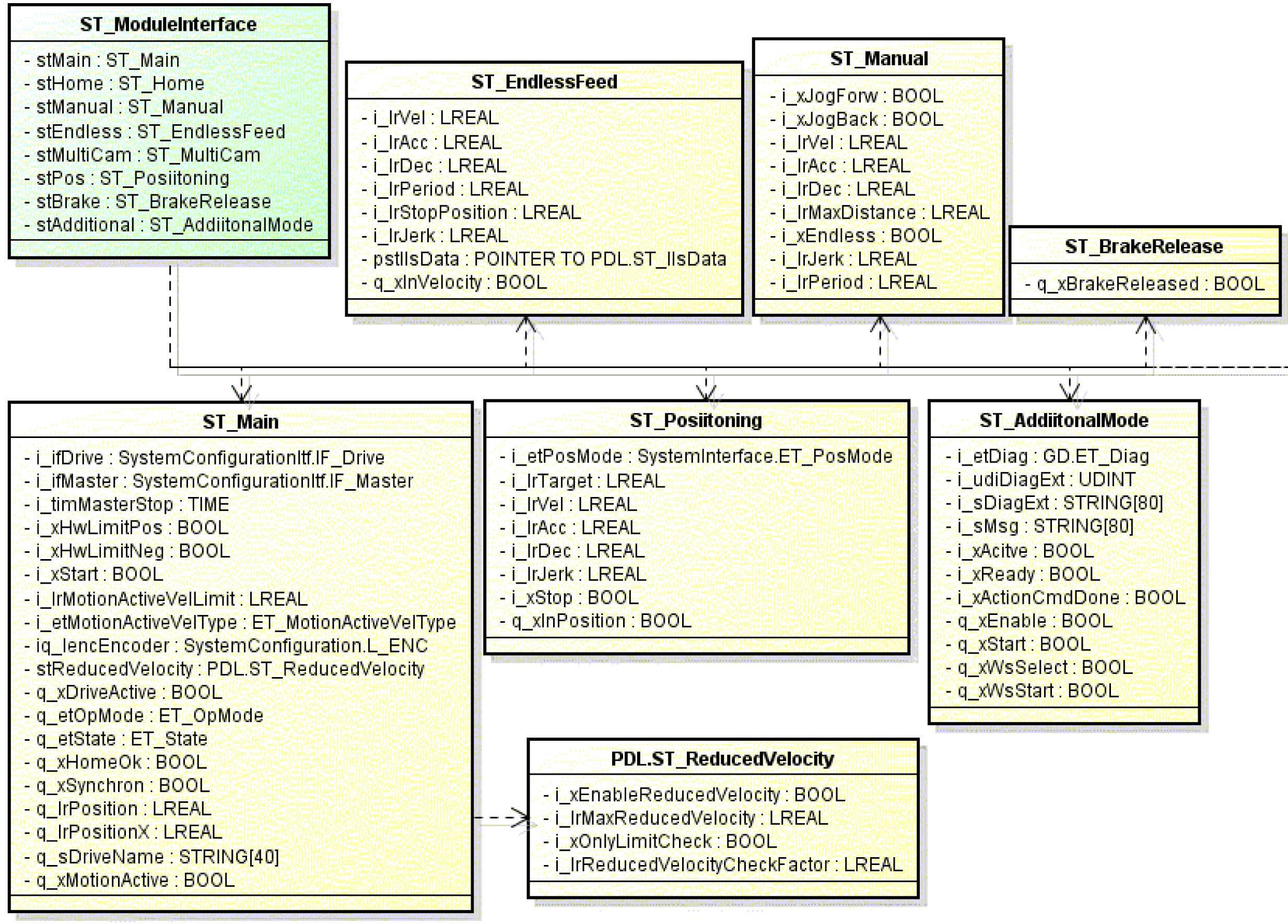

The structure contains all module-specific parameters and return values for the FB_AxisModule.
|
Variable |
Data type |
Description |
|---|---|---|
|
stMain |
Cross-operating mode parameters and return values. |
|
|

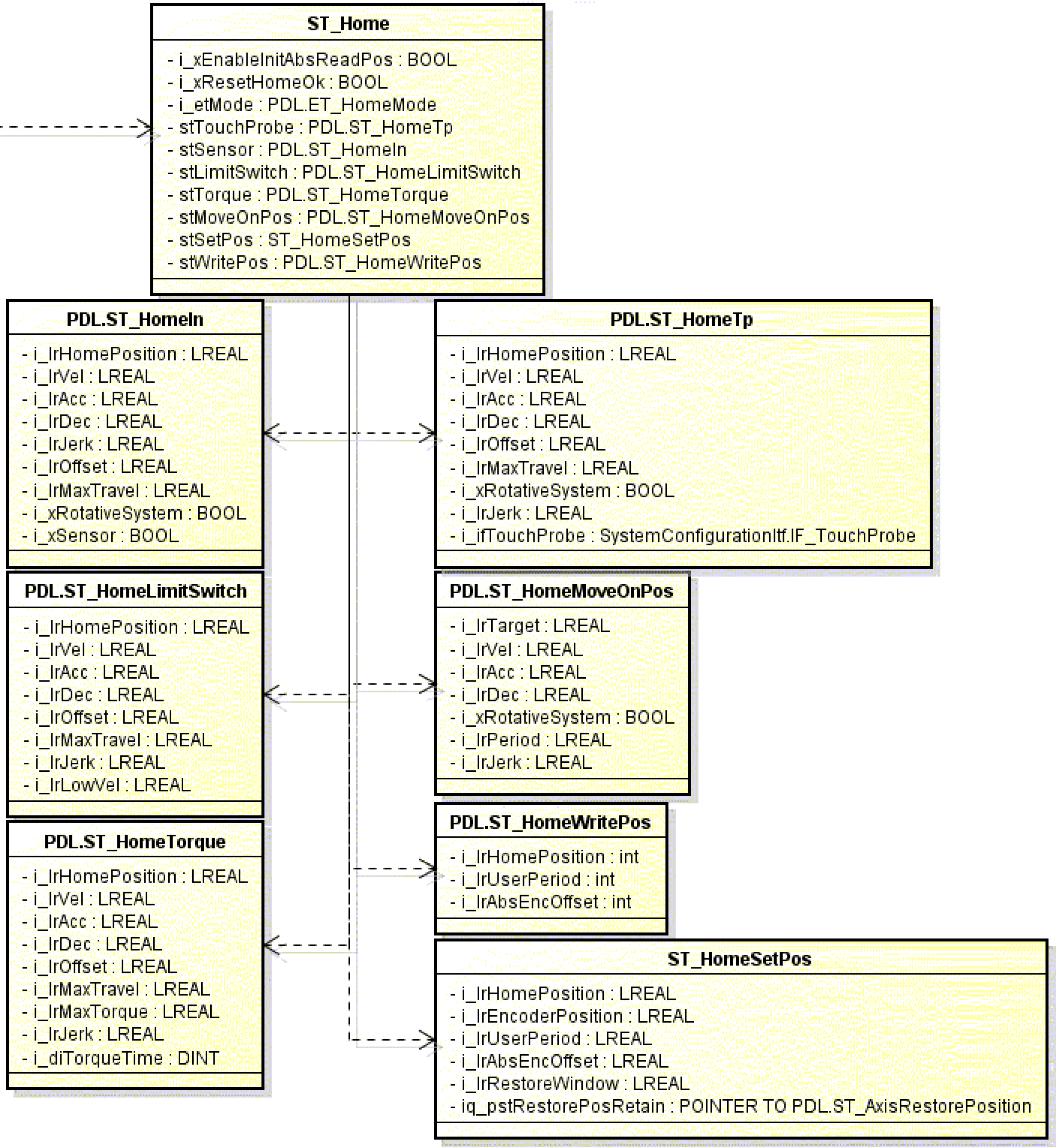

stHome |
Parameters and return values of the operating mode Homing. |
|
|
stManual |
Parameters and return values of the operating mode Manual. |
|
|
stEndless |
Parameters and return values of the operating modes Endless and Endlesslls. |
|
|

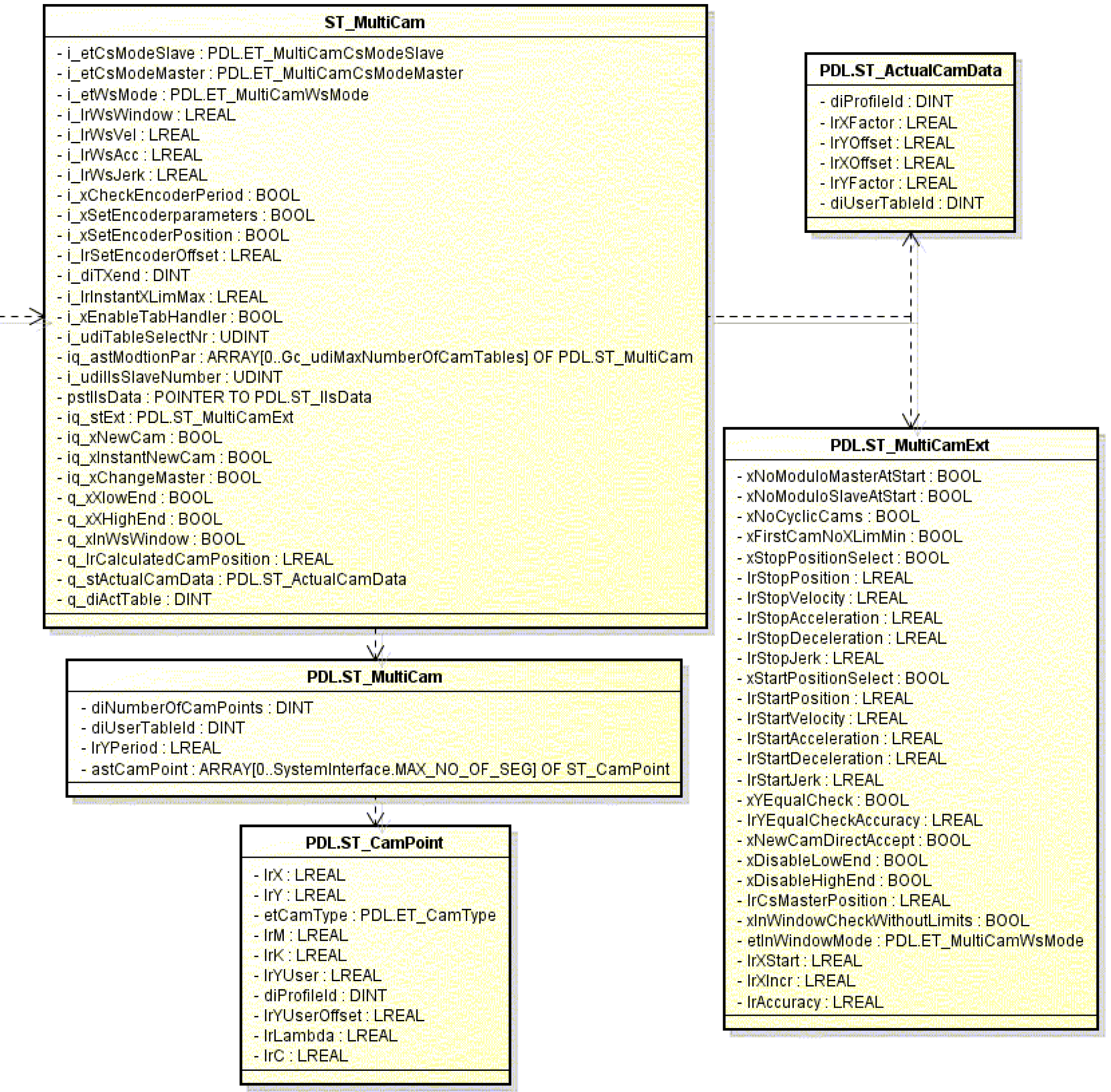

stMultiCam |
Parameters and return values of the operating mode MultiCam. |
|
|
stPos |
Parameters and return values of the operating mode Positioning. |
|
|
stBrake |
Parameters and return values of the operating mode Brake. |
|
|
stAdditional |
Parameters and return values of the operating mode Additional. |
