Mounting the Impact Plate
|
Step |
Action |
|---|---|
|
1 |
Remove the lower arms and the upper arms. For further information, refer to Replacing the Lower Arms and Replacing the Upper Arms. |
|
2 |

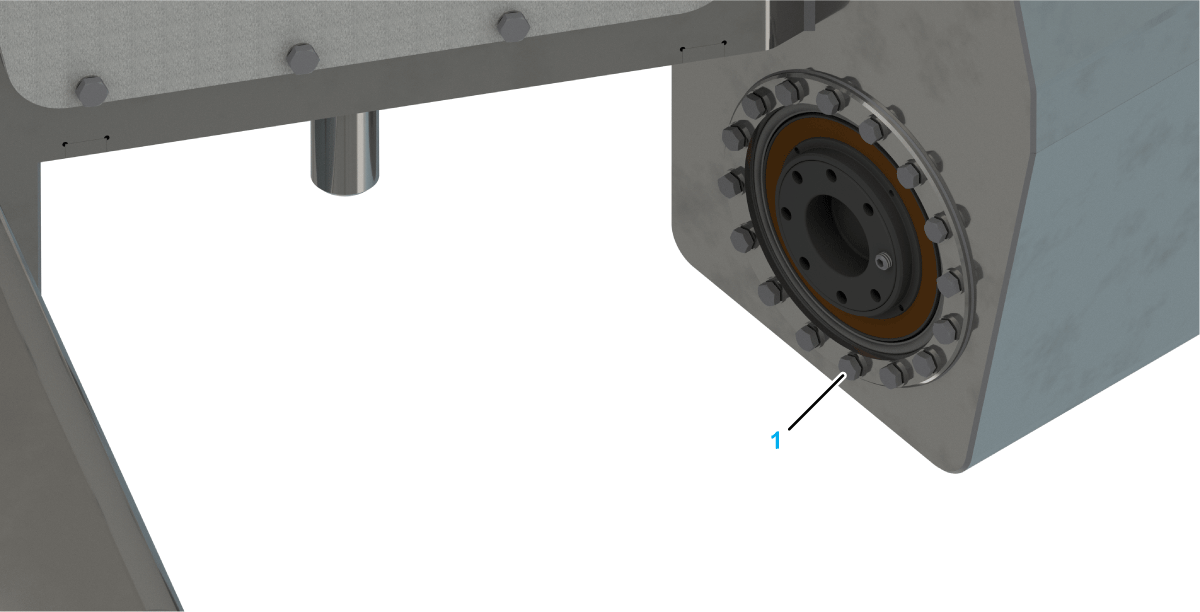

Remove four screws (1) at an angle of 90° from each of the three housing flanges.
|
|
3 |

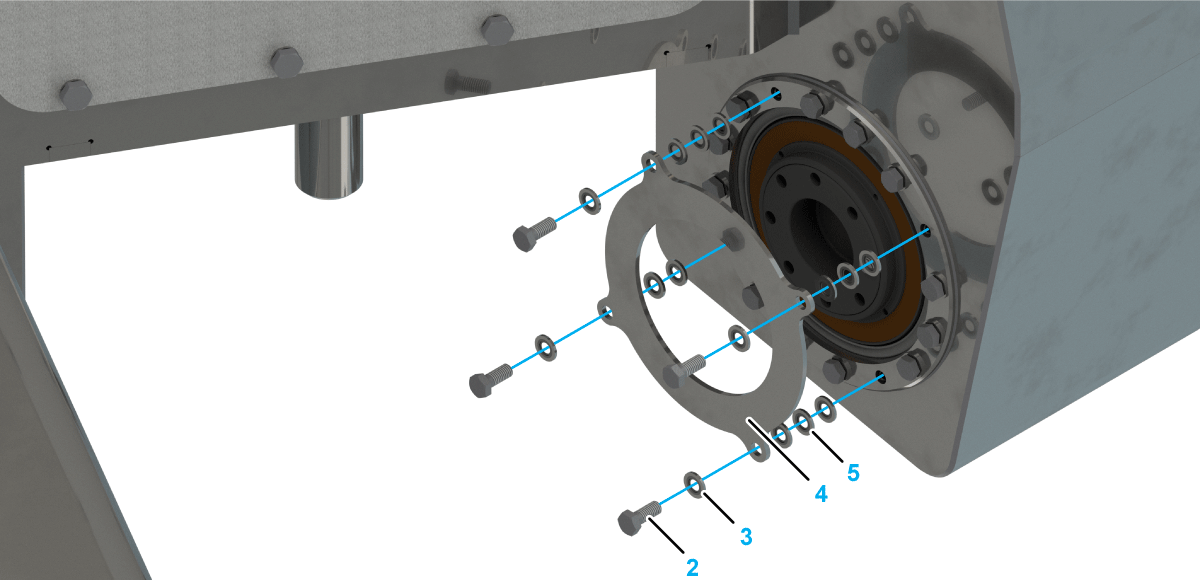

Place the Impact Plate (4) with three sealing washers (5) between the housing and the Impact Plate on each of the four holes.
|
|
4 |
Fasten the Impact Plate with one screw (2) and one sealing washer (3) on each of the four holes. Tightening torque: 3.5 Nm (31 lbf-in) |
|
5 |
Mount the upper arms and the lower arms. For further information, refer to Replacing the Upper Arms and to Mounting the Lower Arms. |
|
