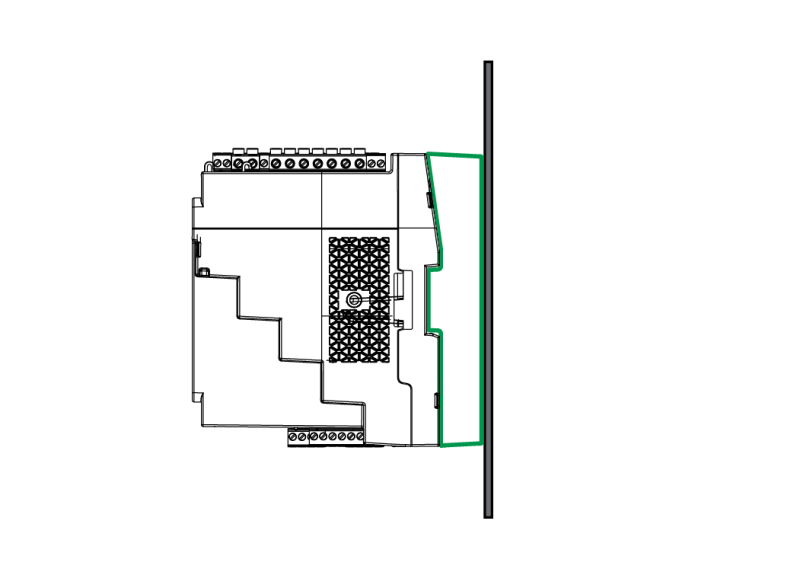

Removing the meter from back-to-back mounting adapter

You can uninstall the meter from the optional back-to-back mounting adapter.

Note: Refer to the meter installation guide for installation instructions.

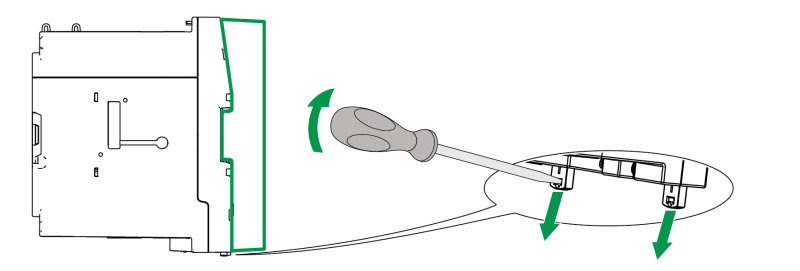

1. Use a flat-head screwdriver to unlock the meter retainer clips.

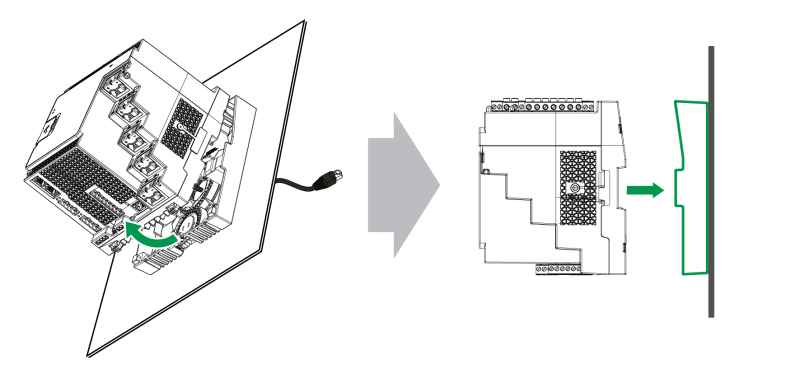

2. Holding the meter firmly, swing it outwards and pull slightly upwards to detach it from the top retaining hooks.
