Elements of the Screen

Default Screen

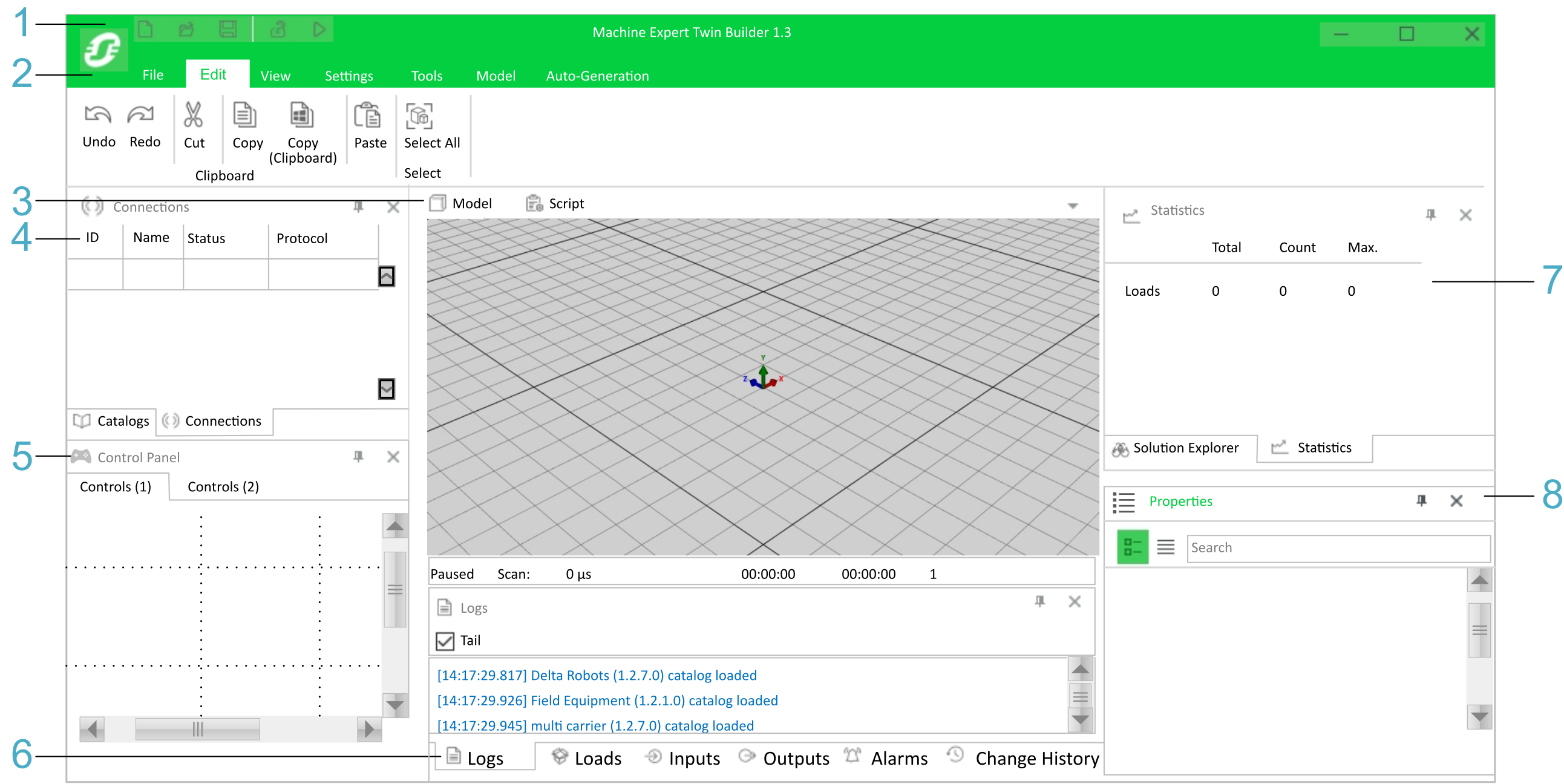

After initial startup, the default screen is displayed. It consists of the following elements:

1 Toolbar

2 Menu bar with button bar representing the commands corresponding to the selected menu

3 Model view, Script view

4 Connections view / Catalogs view

5 Control Panel view providing tabs for different controls

6 Logs view, Loads view, Inputs, Outputs views, Alarms view, Change History view

7 Statistics view / Solution Explorer view
