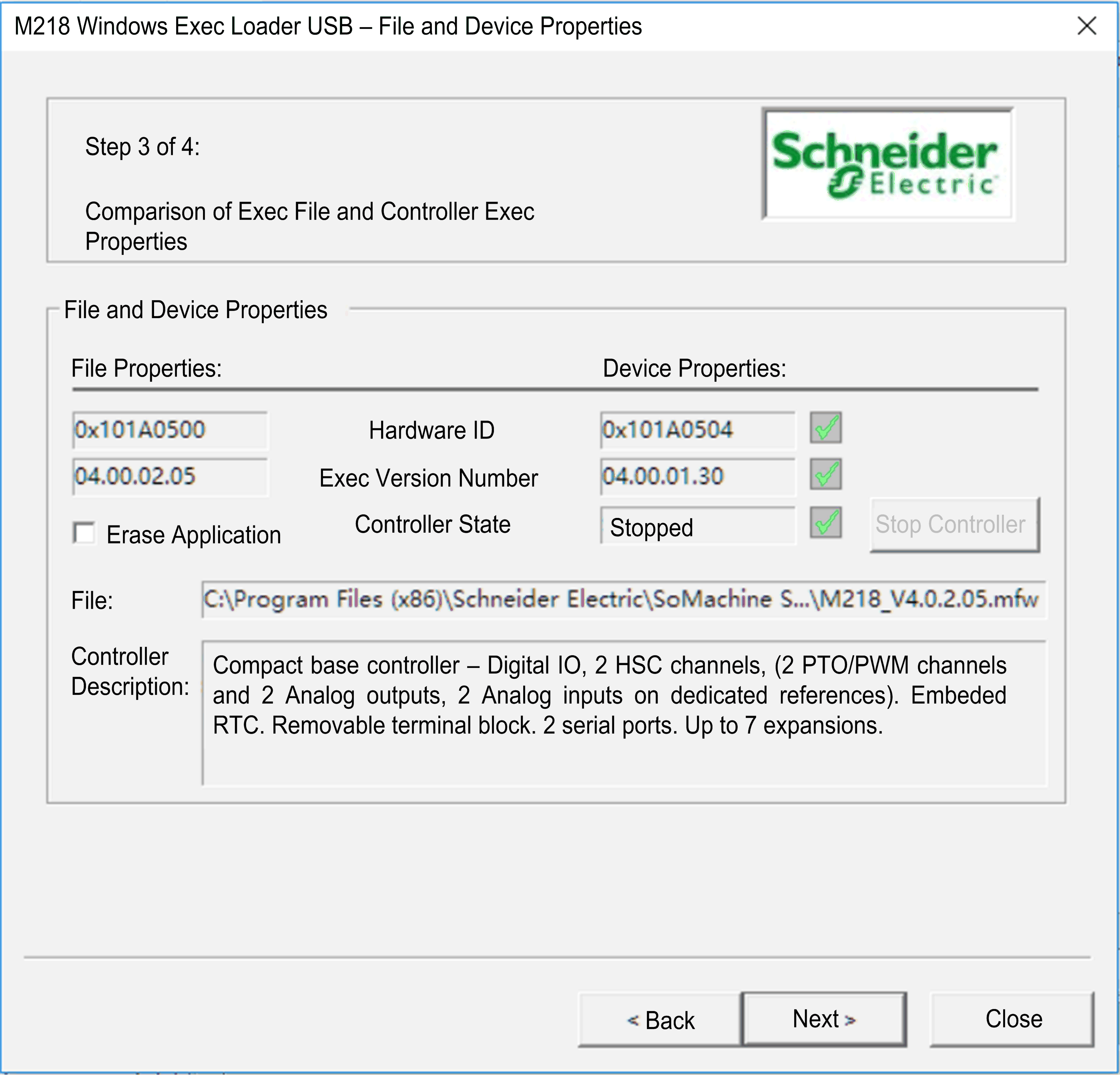

Step 3 - File and Device Exec Properties
At this step, the following information is checked by the Exec Loader Wizard for both the firmware file and your controller before the procedure can continue:
oHardware ID - the selected firmware file is correct for the target controller.
oExec Version Number - the selected firmware file is newer than the currently installed firmware.
The Hardware ID is a unique identifier for each controller reference:
oGreen check mark: OK
oRed cross: incorrect firmware file. Select a firmware file corresponding to your controller reference (go back to step 2)
The Exec Version Number identifies the version of the firmware:
oGreen check mark: you will change your controller to a newer version of the firmware
oYellow check mark: you will change your controller to an older version of the firmware or change your controller with the same version of the current firmware
If checked, the user application will be removed after firmware updated. Default is not active.
Click on the Next button to start the transfer.
