Synchronization and Enable Functions
This section presents the functions used by the FreqGen/PWM:
oSynchronization function
oEnable function
Each function uses the 2 following function block bits:
oEN_(function) bit: Setting this bit to 1 allows the (function) to operate on an external physical input if configured.
oF_(function) bit: Setting this bit to 1 forces the (function).

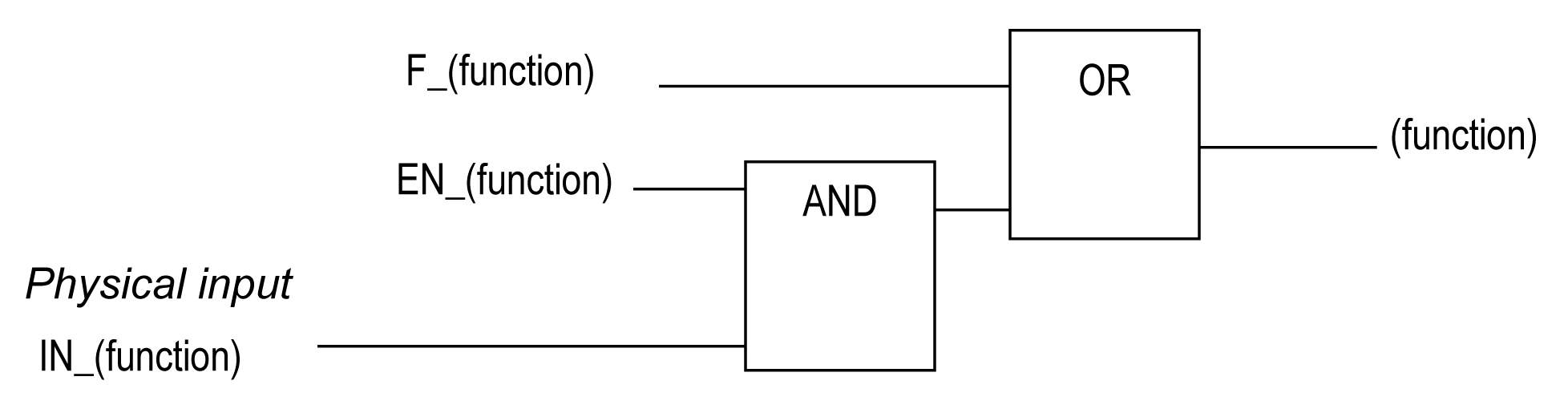

The following diagram explains how the function is managed:
NOTE: (function) stands either for Enable (for Enable function) or Sync (for Synchronization function).
If the physical input is required, enable it in the configuration screen.

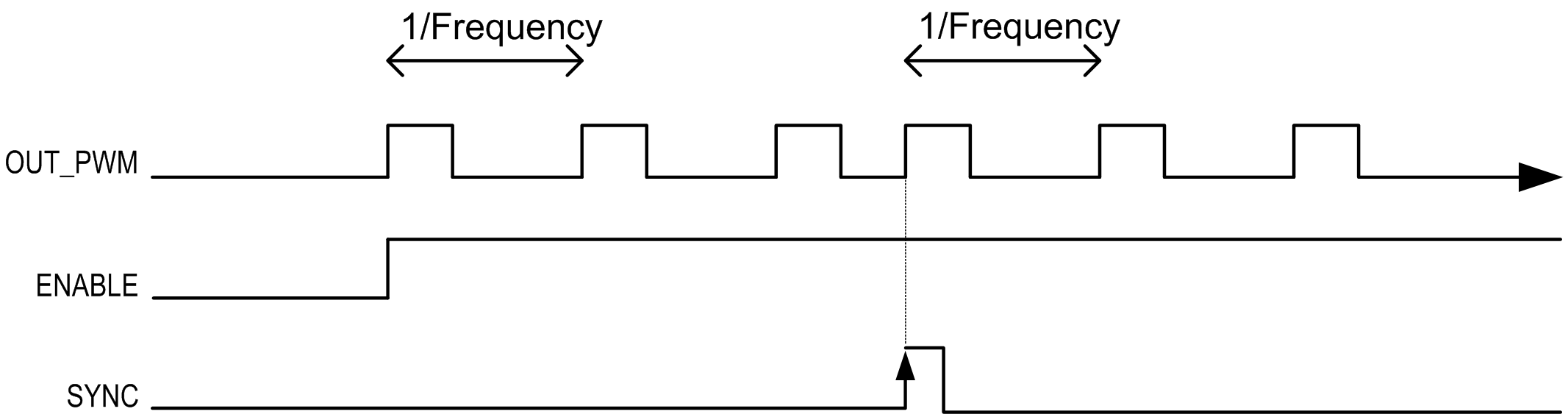

The Synchronization function is used to interrupt the current FreqGen/PWM cycle and then restart a new cycle.
The Enable function is used to activate the FreqGen/PWM:
