READ_VAR: Read Data from a Modbus Device

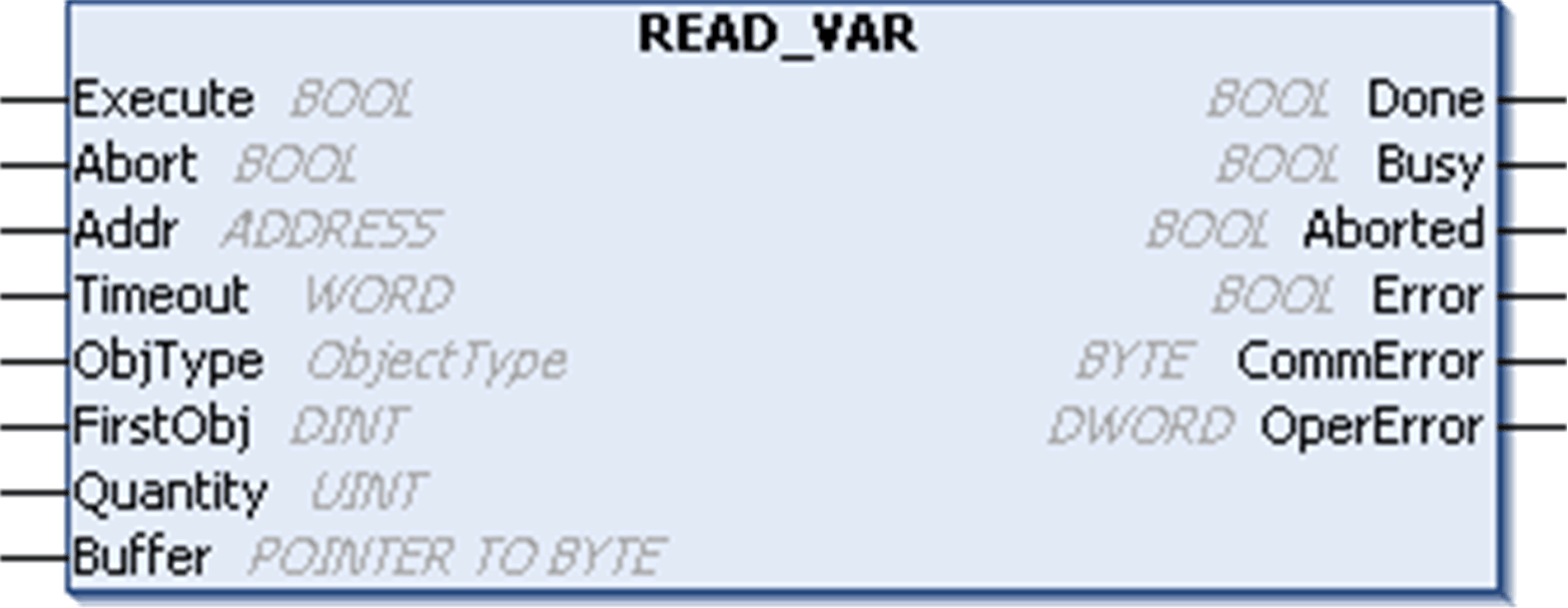

The READ_VAR function block reads data from an external device in the Modbus protocol.
READ_VAR - Specific Parameter Description
|
Input |
Type |
Comment |
|---|---|---|
|
ObjType |
ObjectType |
ObjType is the type of object to be read (MW, I, IW, Q). |
|
FirstObj |
DINT |
FirstObj is the index of the first object to be read. |
|
Quantity |
UINT |
Quantity is the number of objects to be read: o1...125: registers (MW and IW types) o1...2000: bits (I and Q types) |
|
Buffer |
POINTER TO BYTE |
Pointer address to the array that holds the received data which have been read from the target device. The array must be equal or greater than the data which shall be read. For example, the reading of 4 registers requires an array of 4 words and the reading of 32 bits requires an array of 2 words or 4 bytes, each bit of which is set to the corresponding value of the remote device. You must use the ADR function to pass the address of the first byte of the array (see CFC chart in the example). |

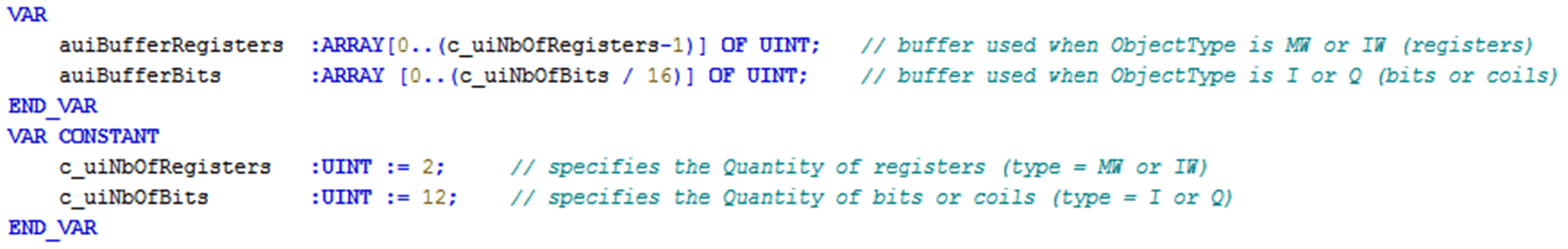

NOTE: To prevent access violation caused by invalid pointer access (out of bounds) to the memory, you must ensure the size of the linked array to the input Buffer is equal or greater than the data which will be received from the target device. It is a good practice to link the defined Quantity of data to read to the declaration of the buffer like done in the following example.
This example shows the implementation of the READ_VAR function block in conjunction with the ADDM function block in order to read two registers starting at address 1 from a Modbus slave. The Modbus slave is specified with address 8 and must be reachable through serial line interface 1. A precondition is the configuration of the Modbus Manager as master under the serial line interface 1.

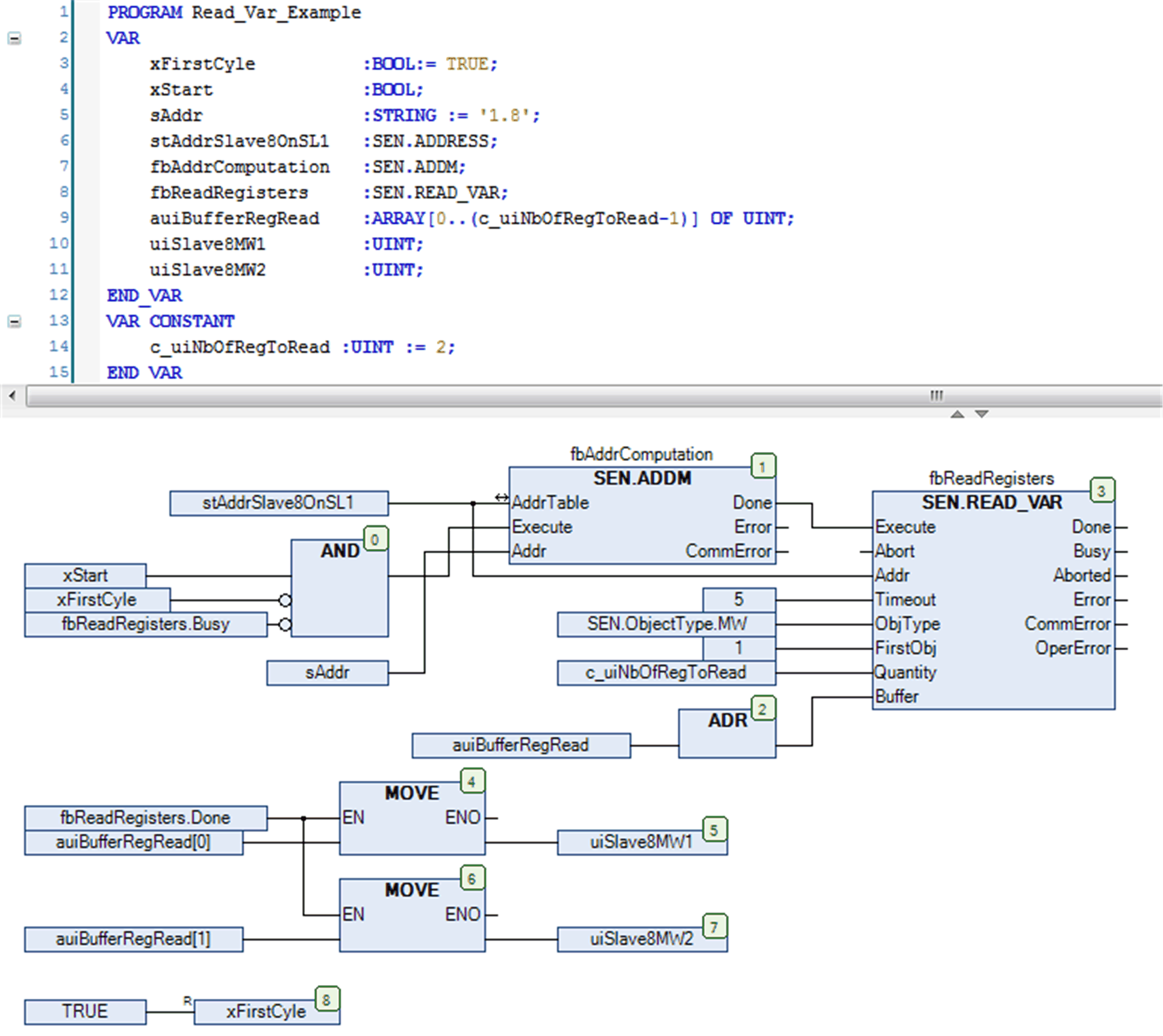

This figure shows the declaration and use of the READ_VAR function:
