To mount the robot, perform the procedure that is applicable for your robot type:
oMounting the Robot LXMSTS••F on the floor or
oMounting the Robot LXMSTS••W to the wall
NOTE: Only with the use of mechanical limit stops for range limitation allow for conformance with the safety requirements specified by the ISO 10218-1 standard. For further information, refer to Mechanical Limit Stops.
Mounting the Robot LXMSTS••F on the Floor
|
Step |
Action |
|---|---|
|
1 |

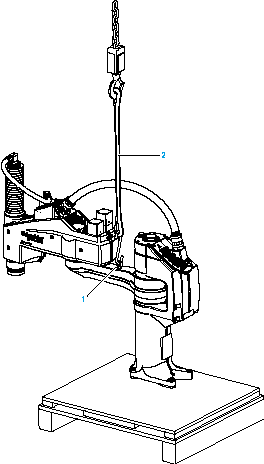

Screw the lifting eye bolt (1) (M8 DIN 580 included in the set) into the robot and fit a sling (2).
|
|
2 |

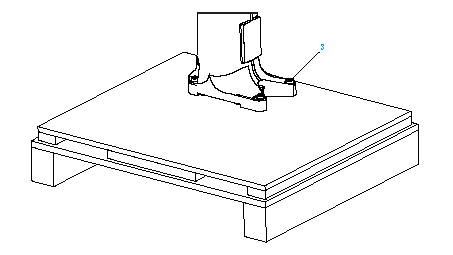

Remove the four fastening screws (3) from the base.
|
|
3 |
Lift the robot unit. |
|
4 |

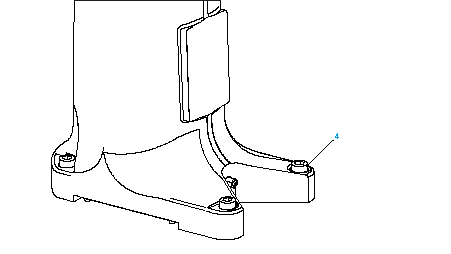

Fasten the base in place using four screws (4). For further information about appropriate screws, refer to Floor Mounting
|
|
|
|
FALLING LOADS |
|
Keep the sling slightly taut until the robot is mounted on the floor. |
|
Failure to follow these instructions can result in death, serious injury, or equipment damage. |
Take into account that the robot swings when raised and moved.
|
|
|
SWINGING ROBOT |
|
Move the robot with a slow and steady force and allow the suspended robot to come to a stand still before changing direction, either vertically or horizontally. |
|
Failure to follow these instructions can result in death, serious injury, or equipment damage. |
|
|
|
COLLISION OF COMPONENTS |
|
Remove the lifting eye bolts before using the robot. |
|
Failure to follow these instructions can result in death, serious injury, or equipment damage. |
Mounting the Robot LXMSTS••W on the Wall
|
Step |
Action |
|---|---|
|
1 |
Screw the lifting eye bolt (1) (M8 DIN 580 included in the set) into the robot and fit a sling (2). |
|
2 |
Remove the four screws (3) on the upside of the holder (4).
|
|
3 |
Remove the screws (5) at the underside of the holder.
|
|
4 |
Lift the robot unit. |
|
5 |
Attach the console in place using six screws (6).
|
|
|
|
FALLING LOADS |
|
Keep the sling slightly taut until the robot is mounted on the floor. |
|
Failure to follow these instructions can result in death, serious injury, or equipment damage. |
Take into account that the robot swings when raised and moved.
|
|
|
SWINGING ROBOT |
|
Move the robot with a slow and steady force and allow the suspended robot to come to a stand still before changing direction, either vertically or horizontally. |
|
Failure to follow these instructions can result in death, serious injury, or equipment damage. |
|
|
|
COLLISION OF COMPONENTS |
|
Remove the lifting eye bolts before using the robot. |
|
Failure to follow these instructions can result in death, serious injury, or equipment damage. |
