Type |
AD |
|
Devices supporting the parameter |
Lexium LXM62 Power Supply |
|
Traceable |
Yes |
Displays the operating state of the power supply and the connected drives (also refer to InternalDeviceState).
GroupState and GroupReady parameters

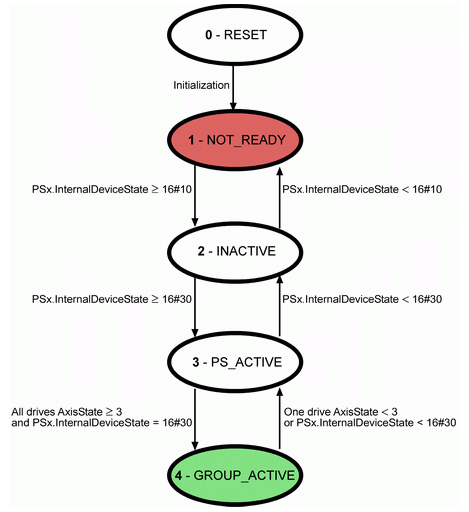

y-States:
0 - RESET
1 - NOT_READY
2 - INACTIVE
3 - PS_ACTIVE
4 - GROUP_ACTIVE
|
Value |
Data type |
Meaning |
|---|---|---|
|
Initialization / 0 |
DINT |
– |
|
not ready / 1 |
DINT |
oWaiting for Sercos phase 4 (16#01) oWaiting for PSx ready = TRUE (see also Ready) oWaiting for the drives ready = TRUE (see also Ready) oWaiting for HW Enable on = TRUE oWaiting for Inverter Enable (only LXM 62 PSD) on = TRUE oWaiting for DC bus voltage (16#04) oWaiting for mains phases active (see also PhaseCheckMode) |
|
inactive / 2 |
DINT |
oWaiting for PowerSupplyCheck (16#30) NOTE: Only possible if (PSx = real) or (PSx = virtual and the drives = virtual) |
|
active / 3 |
DINT |
oWaiting for the drives ControllerEnable (AxisState ≥ 3) |
|
Group active / 4 |
DINT |
Power supply and the drives are active. |
