Common Structure Data Type Definitions

Overview

Structure data types serve as the major input and output data carriers between different function blocks, conveying input, configuration, and parameterization data.

The following sections list the names of the structure data types that are used in several function blocks of this library, followed by a table that describes the internal parameters that populate the structure.

Structure: stAlrmCtrl

The alarm control structure data type is used to indicate a detected alarm within the pump group and to reset detected alarms.

Element of stAlrmCtrl	Data Type	Description
xAlrmRele	BOOL	When FALSE, an alarm has been detected. The functions set the outputs to the default state. If a function detects a system level alarm, then the function sets this bit to FALSE. The pump group is stopped.
xRstAlrm	BOOL	Resets the detected alarms. When set to TRUE, the alarm values are set to zero, when the cause has been corrected.

Element of stAlrmCtrl

Data Type

Description

xAlrmRele

BOOL

When FALSE, an alarm has been detected. The functions set the outputs to the default state.

If a function detects a system level alarm, then the function sets this bit to FALSE. The pump group is stopped.

xRstAlrm

BOOL

Resets the detected alarms.

When set to TRUE, the alarm values are set to zero, when the cause has been corrected.

NOTE: This alarm control structure data type needs to be defined only once per pump in the system.

Structure: stOpMode

The stOpMode structure data type controls / switches the operating mode of the pumping application.

If a function block detects an alarm state in the pump group, this function block automatically sets the operating mode to manual mode. This is achieved by setting the structure data type stOpMode to xAuto = FALSE and xMan = TRUE. At the same time, the function block indicates that an alarm has been detected by setting xAlrm to TRUE. Operator intervention is required to change from manual mode to another operating mode and to acknowledge the detected alarm.

Element of stOpMode	Data Type	Description
xAlrm	BOOL	alarm mode When TRUE, indicates that an alarm has been detected in the pump group during data processing.
xAuto	BOOL	automatic mode When TRUE, the pumping application is working in automatic mode without user intervention.
xMan	BOOL	manual mode When TRUE, the pumping application is working in manual mode, which means it is controlled by user inputs.
xFill	BOOL	pipe fill mode When TRUE, the pumping application is working in pipe fill mode. After start or restart of the pumping application the pipe fill function starts specific processes (as defined with the PipeFill function block) to reach the pressure working range as quickly as possible.
xCavtMarg	BOOL	cavitation margin mode When TRUE, the suction pressure is below the cavitation margin and the pumping application is running in cavitation margin mode as defined with the CavtProt function block.
xCaviFlow	BOOL	Reserved.
xPidMan	BOOL	PID manual mode When TRUE, the pumping application is running with a PID (proportional integral derivative) manual setpoint. This mode is set by the operator using the operator interface. In this mode, the PumpPidStag function block uses an alternative pressure setpoint manually entered by the operator.
xPIDStop	BOOL	PID stopped mode When TRUE, the PID has been stopped.
xPIDAuto	BOOL	PID automatic mode When TRUE, the PID is running in automatic mode.
xPrim	BOOL	Reserved.
xSle	BOOL	sleep mode When TRUE, the pumping application is working in sleep mode in times of low water demand in order to avoid using the main pumps (VS pumps or FS pumps). The sleep mode is started by the PumpPidStag function block. It is stopped either by the PumpPidStag function block or by the AuxPumpCtrl function block.
xRem	BOOL	remote mode When TRUE, disables the local HMI and enables the remote HMI to control the application.
xLoc	BOOL	local mode When TRUE, disables the remote HMI and enables the local HMI to control the application.

NOTE: This alarm control structure data type needs to be defined only once per pump in the system.

Structure: stAna

The stAna structure data type is used for the analog input value from the pressure sensor (measuring the pressure) or the flow meter (measuring the flow).

Element of stAna	Data Type	Description
rAnaVal	REAL	Scaled (physical units) analog value. The pressure / suction pressure value used as an input by the PipeFill function block and CavtProt) function block.
xStat	BOOL	When TRUE, indicates that the value of rAnaVal is valid.

Structure: stAvai

The stAvai structure data type is used to indicate the availability of 8 devices. This variable is used for VSDs, VS pumps, and FS pumps.

Element of stAvai	Data Type	Description
xAvai1	BOOL	When TRUE, indicates that device 1 is available.
...	...	...
xAvai8	BOOL	When TRUE, indicates that device 8 is available.

Structure: stStagVal

The stStagVal structure data type contains the stage value and its state. The stage value represents the demand for the number of pumps which are needed to maintain the required pressure level.

Element of stStagVal	Data Type	Description
siStag	SINT	Indicates the number of pumps which are needed to maintain the required pressure level.
xSta	BOOL	When TRUE, indicates that no error has been detected in the pump.

Structure: stCmd

The stCmd structure data type is used to switch the 8 devices (VSDs or FS pumps) into run or stop state.

Element of stCmd	Data Type	Description
xDev1	BOOL	When TRUE, switches device 1 into run state.
...	...	...
xDev8	BOOL	When TRUE, switches device 8 into run state.

Structure: stMode

The stMode structure data type controls / switches the modes of the individual pumps and VSDs.

Element of stMode	Data Type	Description
xRem	BOOL	remote mode When TRUE, the pump is locked for control by an HMI at a remote station.
xLoc	BOOL	local mode When TRUE, the pump is locked for control by the local HMI.
xHand	BOOL	hand mode When TRUE, the pump is locked for inputs that are made directly at the pump. Any commands from HMIs are blocked.
xMain	BOOL	maintenance mode When TRUE, the pump is in maintenance mode and is not available for the application.
xAuto	BOOL	automatic mode When TRUE, the pump is operated in automatic mode without user intervention.
xManu	BOOL	manual mode When TRUE, the pump is controlled by user inputs.
xVsd	BOOL	VSD mode When TRUE, the VS pump is fixed linked to a VSD.
xByps	BOOL	bypass When TRUE, the VS pump bypasses the VSD because the VSD, to which the VS pump had been linked, is not available.
xAlrm	BOOL	alarm mode When TRUE, an alarm has been detected in the pump.
xAlrt	BOOL	Reserved.

Structure: stSta

The stSta structure data type indicates the status of the individual pumps as indicated by external devices (key switches, sensors, contactors).

Element of stSta	Data Type	Description
xHandMod	BOOL	hand mode When TRUE, the pump has been locked for operation in hand mode by a key switch. It is not available for the pumping application.
xMain	BOOL	maintenance mode When TRUE, the pump has been locked for operation in maintenance mode by a key switch. It is not available for the pumping application.
xDryRun	BOOL	dry run When TRUE, a sensor has indicated that the pump is running dry. It is not available for the pumping application.
xTempAlrm	BOOL	high temperature When TRUE, a sensor has indicated that the temperature in the pump is too high. It is not available for the pumping application.
xErr	BOOL	hardware error detected When TRUE, a hardware error has been detected in the pump. It is not available for the pumping application.
xLinkOk	BOOL	bus link OK When TRUE, the data connection to the distributed I/O hardware module which provides status information on the pump is available. In contrast to the other parameters, this parameter is by default set to TRUE. No error is detected if no distributed I/O hardware module is used in the application.
xRun	BOOL	pump run When TRUE, a contactor has indicated that the pump has been switched in run status.
xStop	BOOL	pump stop When TRUE, a contactor has indicated that the pump has been switched in stop status.

Structure: stVsdSta

The stVsdSta structure data type indicates the status of the individual VSDs as indicated by the VSD and/or external devices (key switches, sensors, contactors).

Element of stVsdSta	Data Type	Description
xPowerOk	BOOL	VSD power OK When TRUE, the power supply for the VSD is available. In contrast to the other parameters, this parameter is by default set to TRUE. No error is detected if no power supply detection is used in the application.
xLinkOk	BOOL	bus link OK When TRUE, the data connection to the distributed I/O hardware module which provides status information on the VSD is available. In contrast to the other parameters, this parameter is by default set to TRUE. No error is detected if no distributed I/O hardware module is used in the application.
xAlarm	BOOL	detected alarm state When TRUE, an alarm has been detected for the VSD. It is not available for the pumping application.
xRun	BOOL	VSD run When TRUE, indicates that the VSD is in run state.

Structure: stLink

The stLink structure data type is used to link one VS pump dynamically to one of the up to 8 possible VSDs or constantly to one of the 4 VSDs or directly to the power source (direct online) by switching the respective contactors (see examples below).

Element of stLink	Data Type	Description
xVsd1	BOOL	When TRUE, the VS pump is linked to VSD 1.
xVsd2	BOOL	When TRUE, the VS pump is linked to VSD 2.
xVsd3	BOOL	When TRUE, the VS pump is linked to VSD 3.
xVsd4	BOOL	When TRUE, the VS pump is linked to VSD 4.
xByp5	BOOL	When TRUE, the VS pump bypasses the VSD. In this mode, the VS pump is directly linked to the power source (direct online).
xRun	BOOL	When TRUE, the VS pump is constantly linked to a VSD. This is only used in fixed link operational mode.

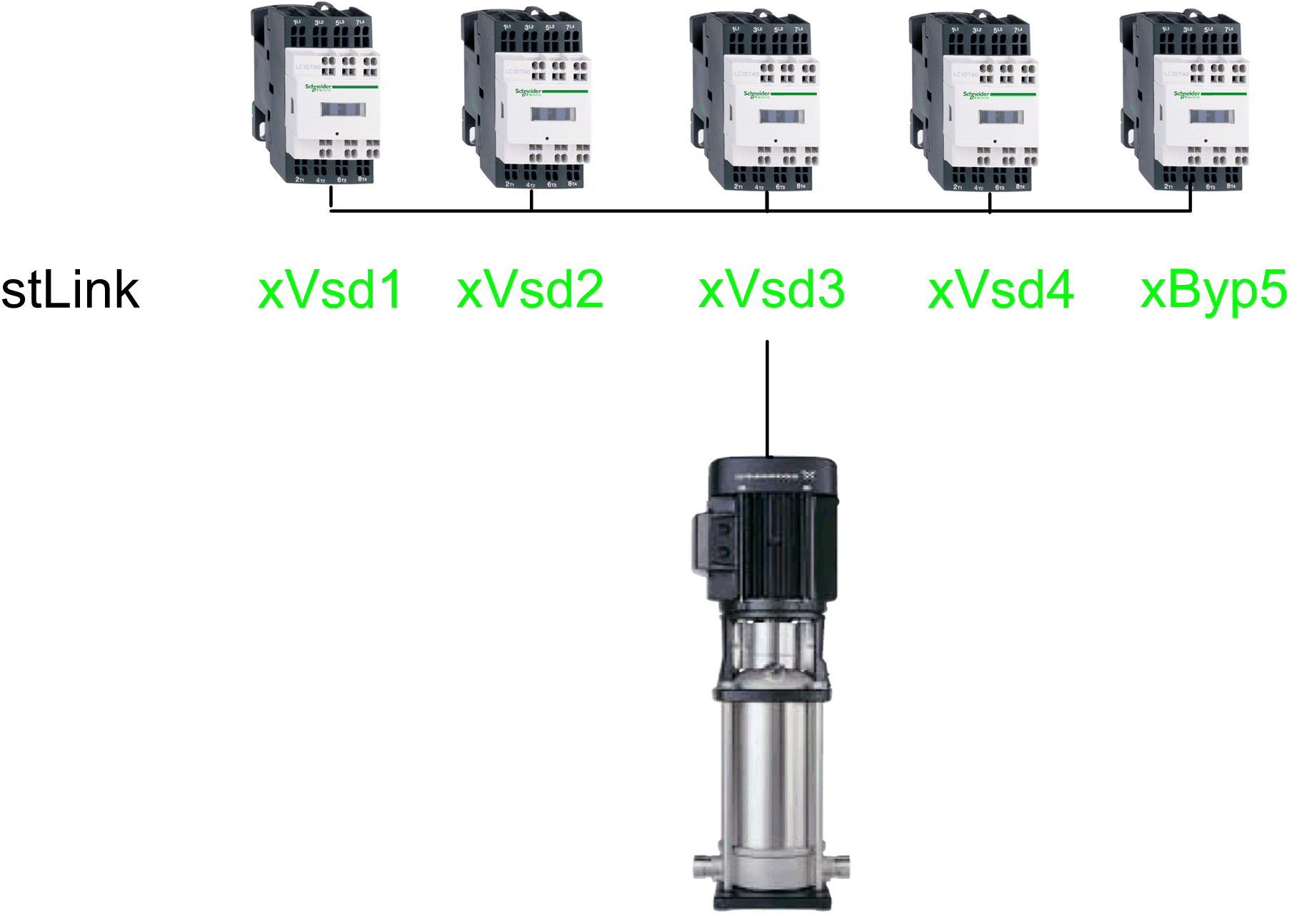

Example of using the stLink structure data type with variable links (fixed link operational mode disabled):

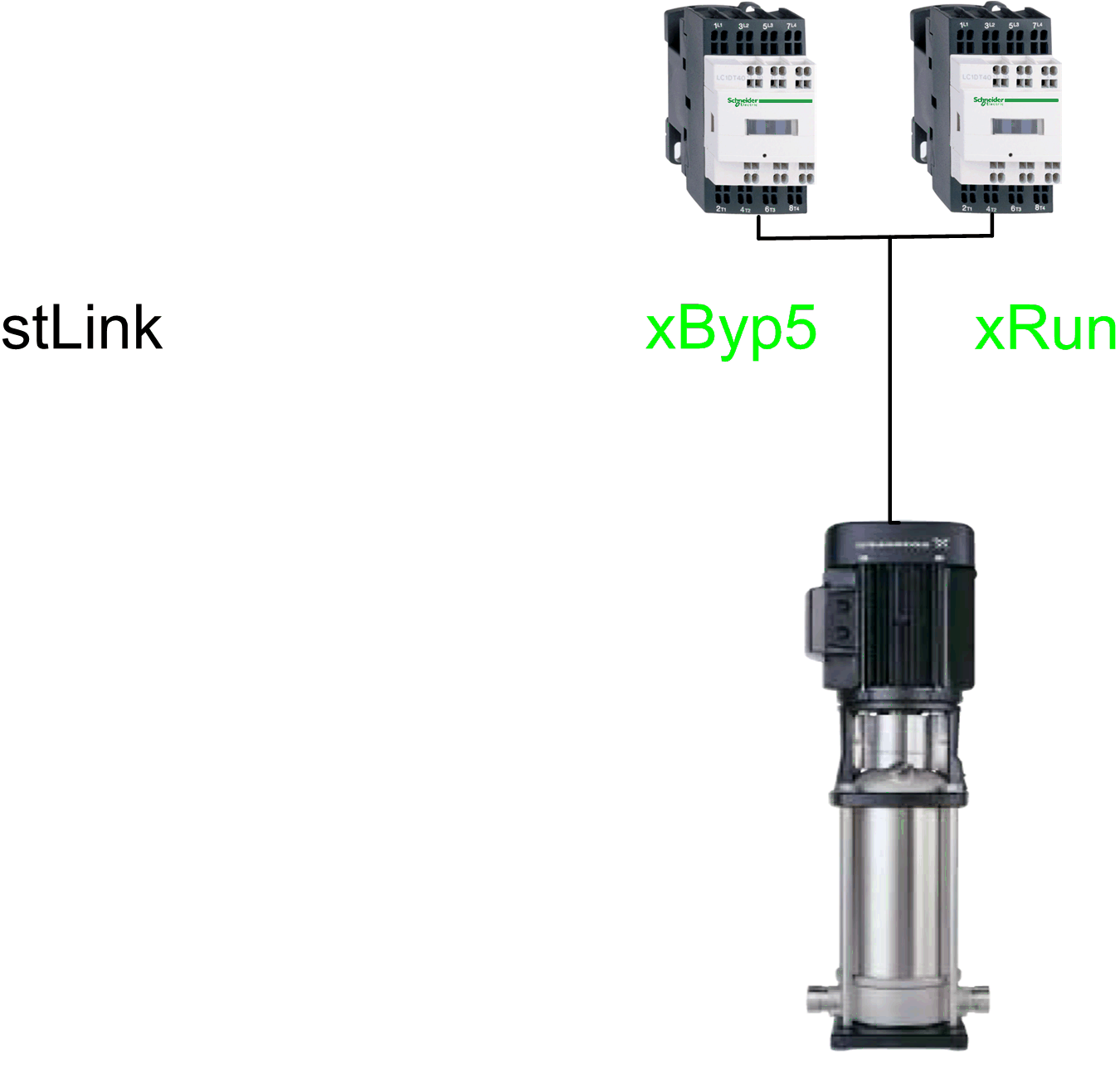

Example of using the stLink structure data type with fixed links (fixed link operational mode enabled):

Structure: stAuxPumpCom

The stAuxPumpCom structure data type is used to switch the auxiliary pump. The structure contains a binary element to switch the auxiliary pump into run state and a binary element to indicate the status of this procedure.

Element of stAuxPumpCom	Data Type	Description
xAuxPumpRunCom	BOOL	When TRUE, the auxiliary pump is switched into run state.
xSta	BOOL	When TRUE, the xAuxPumpRunCom command is valid.

Structure: stFillStat

The stFillStat structure data type is used to indicate the state of the pipe fill function.

Element of stFillStat	Data Type	Description
xFill	BOOL	When TRUE, indicates that the pipe fill function is in progress.
xFillOk	BOOL	When TRUE, indicates that the pressure value has reached the defined working range. NOTE: If the pipe fill function is not used, the parameter stFillStat.xFillOk has to be set to TRUE to enable the PID and stage functions of the PumpPidStag function block.
xSequ1	BOOL	When TRUE, the pipe fill function is running in sequence 1.
xSequ2	BOOL	When TRUE, the pipe fill function is running in sequence 2.
xAlrm	BOOL	alarm mode When TRUE, indicates that an alarm has been detected in the pipe fill function.

Structure: stCavtSta

The stCavtSta structure data type is used to indicate the state of the cavitation protection function.

Element of stCavtSta	Data Type	Description
xProtActv	BOOL	When TRUE, indicates that the cavitation protection function is in progress.
xSpRedu	BOOL	When TRUE, indicates that the setpoint of the control pressure has been reduced because the suction pressure is dropping.
xRstPos	BOOL	When TRUE, indicates that a reset of the cavitation alarm can be executed because the suction pressure is above the minimal setpoint value (legend item 5 in the diagram representing the working principle of the cavitation protection procedure).
xGdntPlus	BOOL	When TRUE, indicates that the suction pressure is rising (suction pressure gradient is positive).
xGdntMnus	BOOL	When TRUE, indicates that the suction pressure is dropping (suction pressure gradient is negative).

Structure: stSp

The stSp structure data type is used to indicate a setpoint value.

Element of stSp	Data Type	Description
rVal	REAL	Indicates a reference value.
xsta	BOOL	When TRUE, indicates that the value of rVal is valid.

Structure: stDeviceAlrm

The stDeviceAlrm structure data type is used to indicate detected errors of the (maximum 8) FS or VS pumps or VSDs.

Element of stDeviceAlrm	Data Type	Description
xDev1Alrm	BOOL	When TRUE, an error has been detected for pump 1 / VSD 1.
...	...	...
xDev8Alrm	BOOL	When TRUE, an error has been detected for pump 8 / VSD 8.

Structure: stRespErr

The stRespErr structure data type is used to indicate a detected error in the FS or VS pumps or VSDs (maximum of 8) because the time defined with the parameter i_tDelFbck has expired without receiving a response from the pump / VSD.

Element of stRespErr	Data Type	Description
xDev1	BOOL	When TRUE, an error has been detected for pump 1 / VSD 1 because no response has been received within the defined time.
...	...	...
xDev8	BOOL	When TRUE, an error has been detected for pump 8 / VSD 8 because no response has been received within the defined time.

Structure: abyVsdNu

The array of BYTE abyVsdNu is used to contain the number of the VSD associated with a given pump. The index to the array indicates the VS pump number.

Element of abyVsdNu	Data Type	Description
abyVsdNu	ARRAY [0..7] of BYTE	Defines the VSD numbers. Range: o0 = unused o1...4 = VSD numbers o5 = bypass o6 = run (fixed link operational mode)

Element of abyVsdNu

Data Type

Description

abyVsdNu

ARRAY [0..7] of BYTE

Defines the VSD numbers.

Range:

o0 = unused

o1...4 = VSD numbers

o5 = bypass

o6 = run (fixed link operational mode)

Structure: asiPrty

The asiPrty is used to contain the priority assignment:

Element of asiPrty	Data Type	Description
asiPrty	ARRAY [0..7] of SINT	The array of short integer is used to list in sequence the priority of the VSDs or pumps as defined by the operating hours or by operator inputs: The VSD / pump that is the first in the list is assigned the highest priority.

Structure: stDiscPres

The stDiscPres contains 2 elements, one of which is a structure. stAna described below, contains the primary analog value. The second element is the value of the optional secondary pressure sensor. The secondary analog value is used, assuming it is available in your system, only in the case that the primary analog value is not valid.

Element of stDiscPres	Data Type	Description
stAna	stAna	Refer to the stAna structure.
rSurr	REAL	Analog input value provided by a second pressure sensor via the AnaIput function block.

Structure: stRef

The stRef structure data type is used to indicate a reference value. This user-defined data type has been used by compensation functions (CompSp: Setpoint Adaptation, and CompSpFlow: Setpoint Adaptation by Using Flow Value), by the pipe fill function and/or the cavitation protection function.

Element of stRef	Data Type	Description
rVal	REAL	Indicates a reference value.
xsta	BOOL	When TRUE, indicates that the value of rVal is valid.
