Axis View

Overview

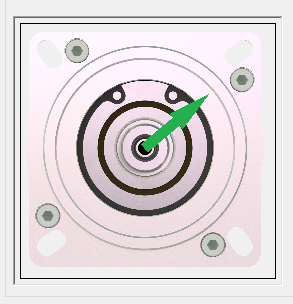

The axis view displays the axis as a 2D graphic object.






If the module is online, the shaft is moved according to the reference position of the drive.
