Programming

Overview

The Main type is always managed by an HSCMain_TM3 function block.

NOTE: At build time, an error is detected if the HSCMain_TM3 function block is used to manage a different HSC type.

Adding the HSCMain Function Block

Step	Description
1	Select the Libraries tab in the Software Catalog and click Libraries. Select Intern > IODrivers > TM3 HSC > HSC > HSCMain_TM3 in the list.
2	Drag-and-drop the item onto the POU window.
3	Edit the default Main type instance name to match the Instance name of the counter function block defined in the Configuration window.

Step

Description

Select the Libraries tab in the Software Catalog and click Libraries.

Select Intern > IODrivers > TM3 HSC > HSC > HSCMain_TM3 in the list.

Drag-and-drop the item onto the POU window.

Edit the default Main type instance name to match the Instance name of the counter function block defined in the Configuration window.

I/O Variables Usage

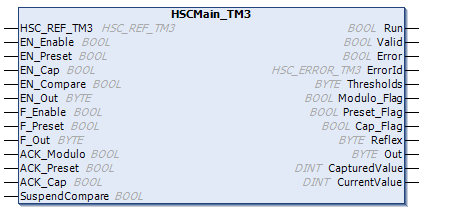

The tables below describe how the different pins of the function block are used in Period meter type.

This table describes the input variables:

Input	Type	Description
HSC_REF_TM3	HSC_REF_TM3	Reference to the HSC instance.
EN_Enable	BOOL	When EN input is configured: if TRUE, authorizes the counter enable via the Enable input.
EN_Preset	BOOL	Not used.
EN_Cap	BOOL	Not used.
EN_Compare	BOOL	TRUE = enables the comparison function (using Thresholds 0, 1, 2, 3): obasic comparison (TH0, TH1, TH2, TH3 output bits) oreflex (Reflex0, Reflex1 output bits) oevents (to trigger external tasks on threshold crossing) NOTE: This option is only available for TM3XF• expansion modules, which support external events.
EN_Out	BYTE	Set bits to 1 to enable corresponding physical outputs to echo the configured function value (Reflex or Stop) as a result of the comparison function. Only active when outputs configured in HSC editor: oBit 0: Output 0 enabled. oBit 1: Output 1 enabled. oBit 2: Output 2 enabled. oBit 3: Output 3 enabled. oBits 4...7: Not used. Association of HSC output Outx with physical output Qy is done by configuration.
F_Enable	BOOL	TRUE = activates counter and takes into account pulses on the counter input.
F_Preset	BOOL	Not used.
F_Out	BYTE	Set bits to 1 to force corresponding physical outputs to 1 if associated with HSC by configuration. Takes priority over EN_Out. Only active when outputs configured in HSC editor: oBit 0: Output 0 forced. oBit 1: Output 1 forced. oBit 2: Output 2 forced. oBit 3: Output 3 forced. oBits 4...7: Not used. Association of HSC output Outx with output terminal Qy is done by configuration.
ACK_Modulo	BOOL	Not used.
ACK_Preset	BOOL	Not used.
ACK_Cap	BOOL	Not used.
SuspendCompare	BOOL	TRUE = compare results are suspended: oThreshold, Reflex, and Out output bits of the function block maintain their last value. oEvents are masked. NOTE: EN_Compare, EN_Reflex, and F_Out remain operational while SuspendCompare is set.

This table describes the output variables:

Outputs	Type	Comment
Run	BOOL	TRUE = Counter is activated. Edge to Edge: Set to 1 at rising edge detection, and reset to 0 at falling edge. Edge to Opposite: Set to 1 at first rising edge detection. It is only reset to 0 if the counter is disabled or an error is detected.
Valid	BOOL	TRUE = indicates that output values on the function block are valid.
Error	BOOL	TRUE = indicates that an error was detected.
ErrorId	HSC_ERROR_TM3	Indicates the value of the error detected. See HSC_ERROR_TM3 enumeration.
Thresholds	BYTE	Bits set to 1 when CurrentValue ≥ Threshold: oBit 0: CurrentValue ≥ Threshold 0 oBit 1: CurrentValue ≥ Threshold 1 oBit 2: CurrentValue ≥ Threshold 2 oBit 3: CurrentValue ≥ Threshold 3 oBits 4...7: Not used Only active when EN_Compare is set.
Modulo_Flag	BOOL	Not used.
Preset_Flag	BOOL	Not used.
Cap_Flag	BOOL	Not used.
Reflex	BYTE	State of the reflex function: oBit 0: Reflex 0 oBit 1: Reflex 1 oBit 2: Reflex 2 oBit 3: Reflex 3 oBits 4...7: Not used
Out	BYTE	State of the physical outputs: oBit 0: Out0 oBit 1: Out1 oBit 2: Out2 oBit 3: Out3 oBits 4...7: Not used Association of HSC output Outx with physical output Qy is done by configuration.
CapturedValue	DINT	Not used.
CurrentValue	DINT	The value of the counter.
