Replacing the Sensors (Optional Equipment)
You need the following tools to remove the sensors:
oOpen-end wrench SW 13 (1/2 AF)
For suitable parts, refer to Replacement Equipment and Accessories.
|
Step |
Action |
|---|---|
|
1 |

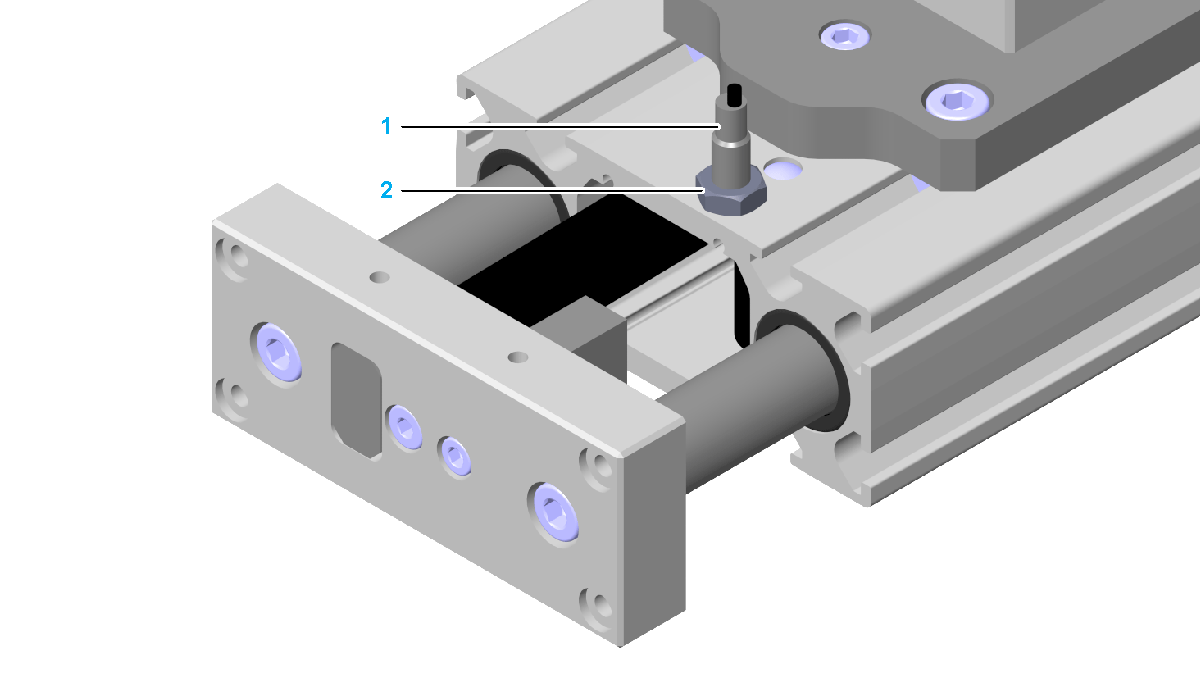

Disconnect the sensor (1).
|
|
2 |
Loosen the sensor nut (2). |
|
3 |
Remove the sensor from the fasting thread. |
|
4 |
Mount the new sensor as described in Mounting the Sensors. |
|
5 |
Connect the new sensor. For further information, refer to Technical Data of the Sensors. |
