M262 Logic/Motion Controller Description

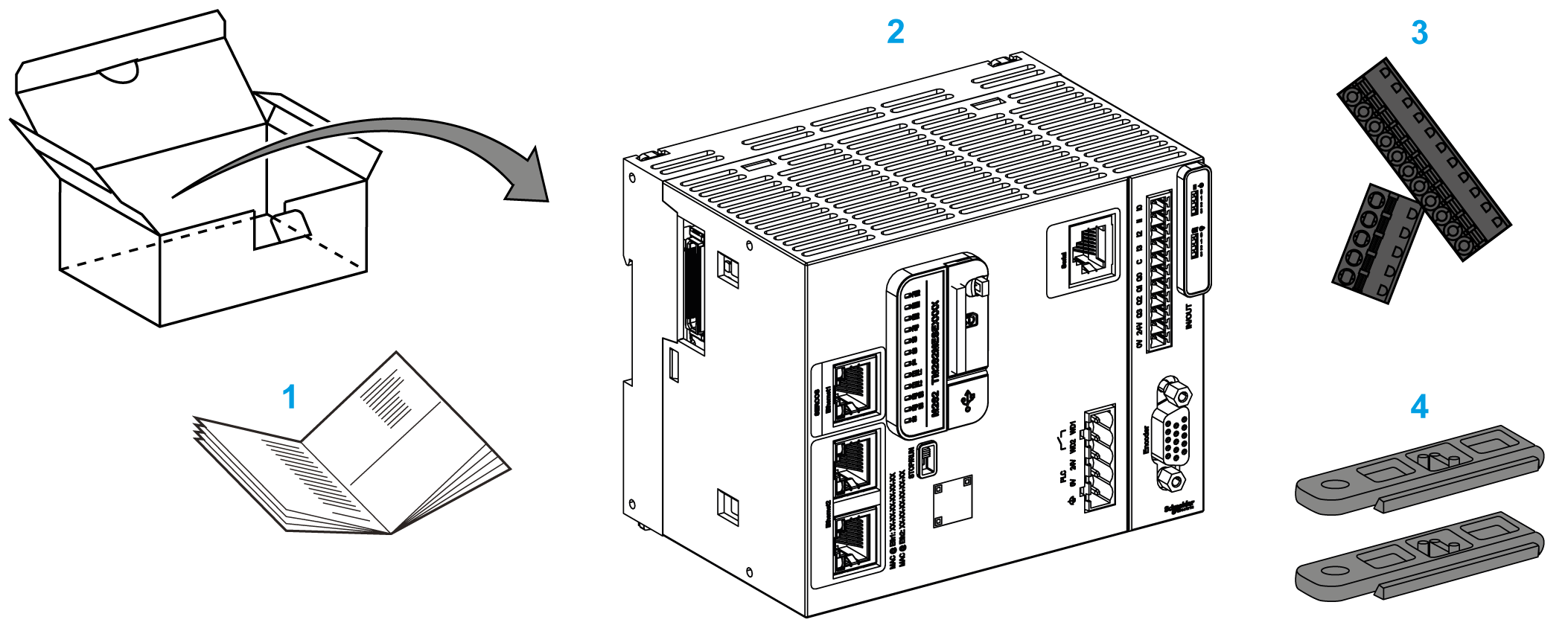

Overview
The M262 Logic/Motion Controller has various powerful features and can service a wide range of applications.
Programming Languages
The M262 Logic/Motion Controller is configured and programmed with the EcoStruxure Machine Expert software, which supports the following IEC 61131-3 programming languages:
-
IL: Instruction List
-
ST: Structured Text
-
FBD: Function Block Diagram
-
SFC: Sequential Function Chart
-
LD: Ladder Diagram
EcoStruxure Machine Expert software can also be used to program these controllers using CFC (Continuous Function Chart) language.
Real Time Clock
The M262 Logic/Motion Controller includes a Real Time Clock (RTC) system.
The system time is maintained by capacitors when the power is off. The time is maintained for 1 000 hours when the controller is not supplied.
Run/Stop
The M262 Logic/Motion Controller can be operated by the following:
-
A hardware Run/Stop switch.
-
A Run/Stop operation by a dedicated digital input, defined in the software configuration. For more information, refer to Configuration of Digital Inputs.
-
An EcoStruxure Machine Expert software command.
-
The system variable PLC_W in a Relocation Table.
-
The Web Server.
Memory
This table describes the different types of memory:
|
Memory Type |
Size |
Use |
|---|---|---|
|
RAM |
256 Mbytes, of which 32 Mbytes are available for the application |
For the execution of the application and the firmware. |
|
Flash |
1 Gbyte |
Non-volatile memory dedicated to the retention of the program and data in case of a power interruption. |
|
Non-volatile RAM |
512 Kbytes |
Non-volatile memory dedicated to the retention of the retain-persistent variables, and the diagnostic files and associated information. |
Embedded Inputs/Outputs
The following embedded I/O types are available:
-
Fast inputs
-
Fast source outputs
Encoder for M262 Motion Controller
The following encoder modes are available:
-
Incremental mode
-
SSI mode
Removable Storage
The M262 Logic/Motion Controllers include an integrated SD card slot.
The main uses of the SD card are:
-
Initializing the controller with a new application
-
Updating the controller and expansion module firmware
-
Storing recipes files
-
Receiving data logging files
Expansion Module and Bus Coupler Compatibility
The M262 Logic/Motion Controller supports expansion modules (see Modicon M262 Logic/Motion Controller, Hardware Guide). Refer also to the compatibility tables in the EcoStruxure Machine Expert - Compatibility and Migration User Guide.
