TM5SPS3 Presentation

Main Characteristics

The TM5SPS3 Interface Power Distribution Module (IPDM) consists of two dedicated electrical circuits:

a 24 Vdc main power that serves the electronics of the Sercos III Bus Interface module and generates independent power for the TM5 power bus that serves the expansion modules.
a 24 Vdc I/O power segment that serves:
- the expansion modules,
- the sensors and actuators connected to the expansion modules,
- the external devices connected to the Common Distribution Modules (CDM)

The table below provides the main characteristics of the TM5SPS3 Interface Power Distribution Module (IPDM):

Main Characteristics
Maximum current provided on 24 Vdc I/O power segment	10000 mA
TM5 power bus generated	750 mA

The following figure and table provide the references to create a TM5 Sercos III Bus Interface with the TM5SPS3 IPDM:

Number	Reference	Description	Color
1	TM5ACBN1	Bus base for Sercos III Bus Interface module and Interface Power Distribution Module (IPDM)	White
2	TM5NS31	Sercos III Bus Interface module	White
3	TM5SPS3	Interface Power Distribution Module (IPDM)	Grey
4	TM5ACTB12PS	Terminal block for PDM, IPDM and receiver electronic module	Grey

NOTE: For more information, refer to TM5 Bus Bases and Terminal Blocks.

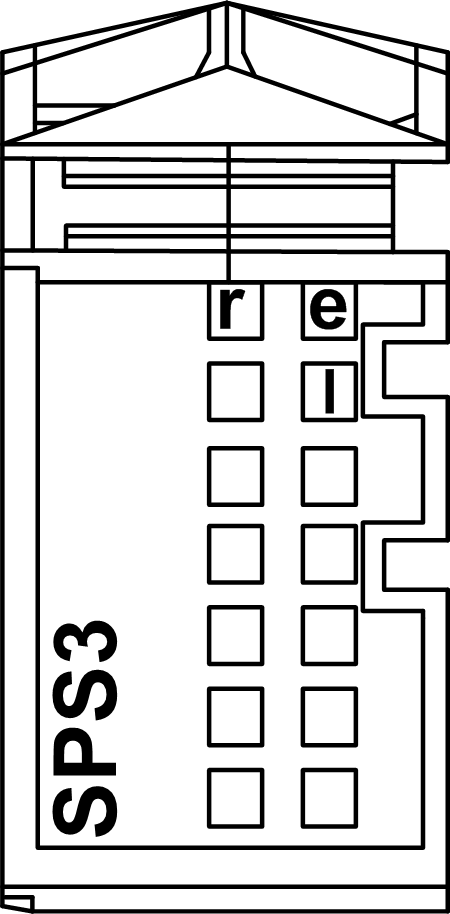

The following figure and table provide the TM5SPS3 IPDM status LEDs:

LED	Color	Status	Description
r	Green	Off	Module supply not connected
		Single flash	Reset status
		Flashing	TM5 expansion bus in preoperational status
		On	RUN status
e	Red	Off	No error detected or module supply not connected.
e	Red	Double flash	Indicates one of the following conditions: 24 Vdc I/O power segment, via the external power supply or supplies, is too low. TM5 power bus, via the external power supply or supplies, is too low.
e+r	Steady red/single green flash		Invalid firmware
l	Red	Off	The TM5 Interface Power Distribution Module (IPDM) supply is within the valid range.
l	Red	On	The TM5 Interface Power Distribution Module (IPDM) supply is insufficient.
