TM5 Physical Description

Introduction

Each slice consists of three elements. These elements are a red Safety bus base, a red electronic Safety I/O module, and a red Safety terminal block.

 DANGER
INCOMPATIBLE COMPONENTS CAUSE ELECTRIC SHOCK OR ARC FLASH
  • Do not associate components of a slice that have different colors.
  • Verify that correct terminal blocks (minimally, matching colors and correct number of terminals) are installed on the appropriate electronic modules.
Failure to follow these instructions will result in death or serious injury.

Elements

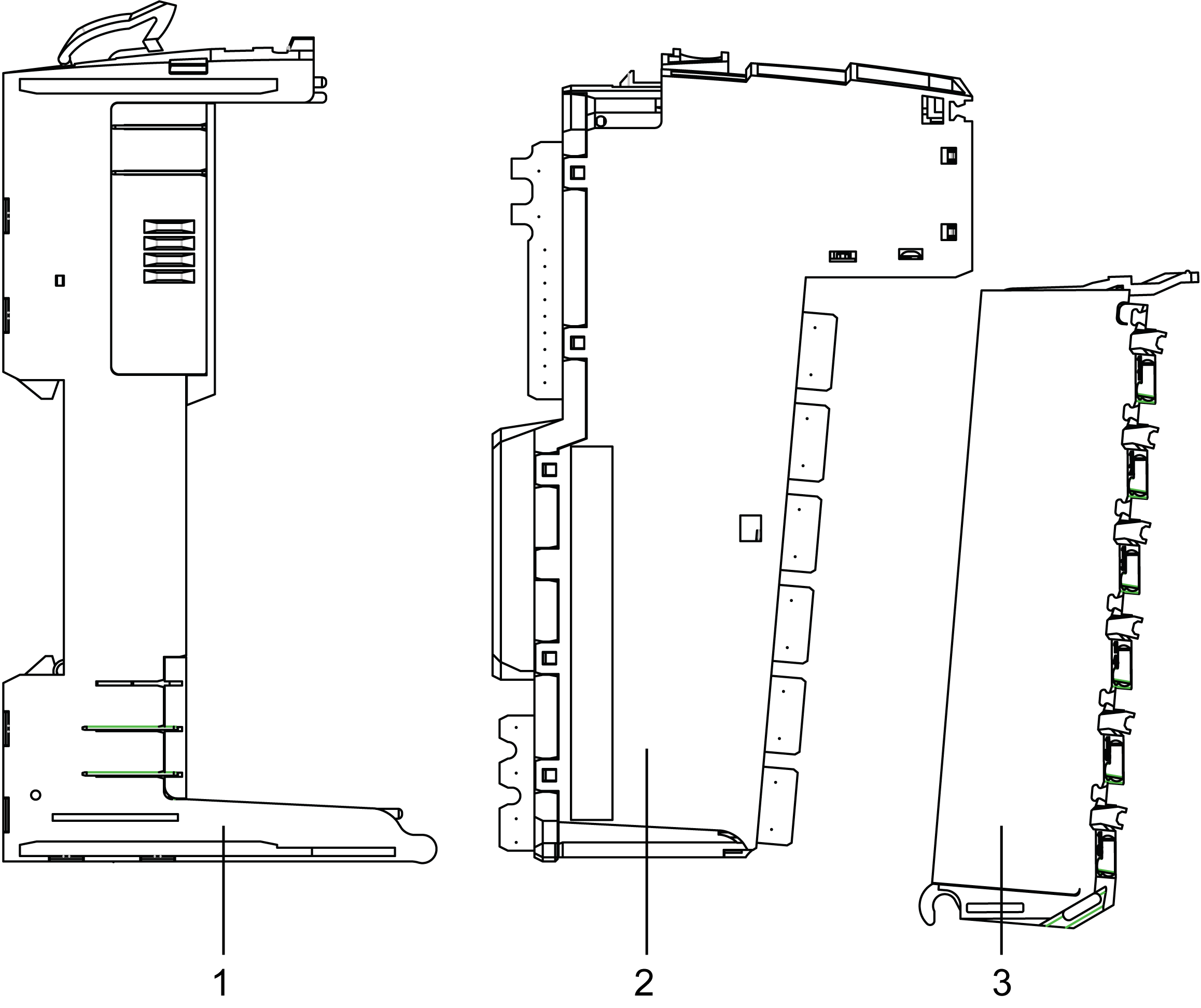

The following figure presents the elements of a slice:

  1. Safety bus base

  2. Electronic Safety I/O module

  3. Safety terminal block

When assembled, the three components form an integral unit that resists vibration.

NOTICE
ELECTROSTATIC DISCHARGE
  • Never touch the pin connectors of the block.
  • Always keep the cables or sealing plugs in place during normal operation.
Failure to follow these instructions can result in equipment damage.

Dimensions

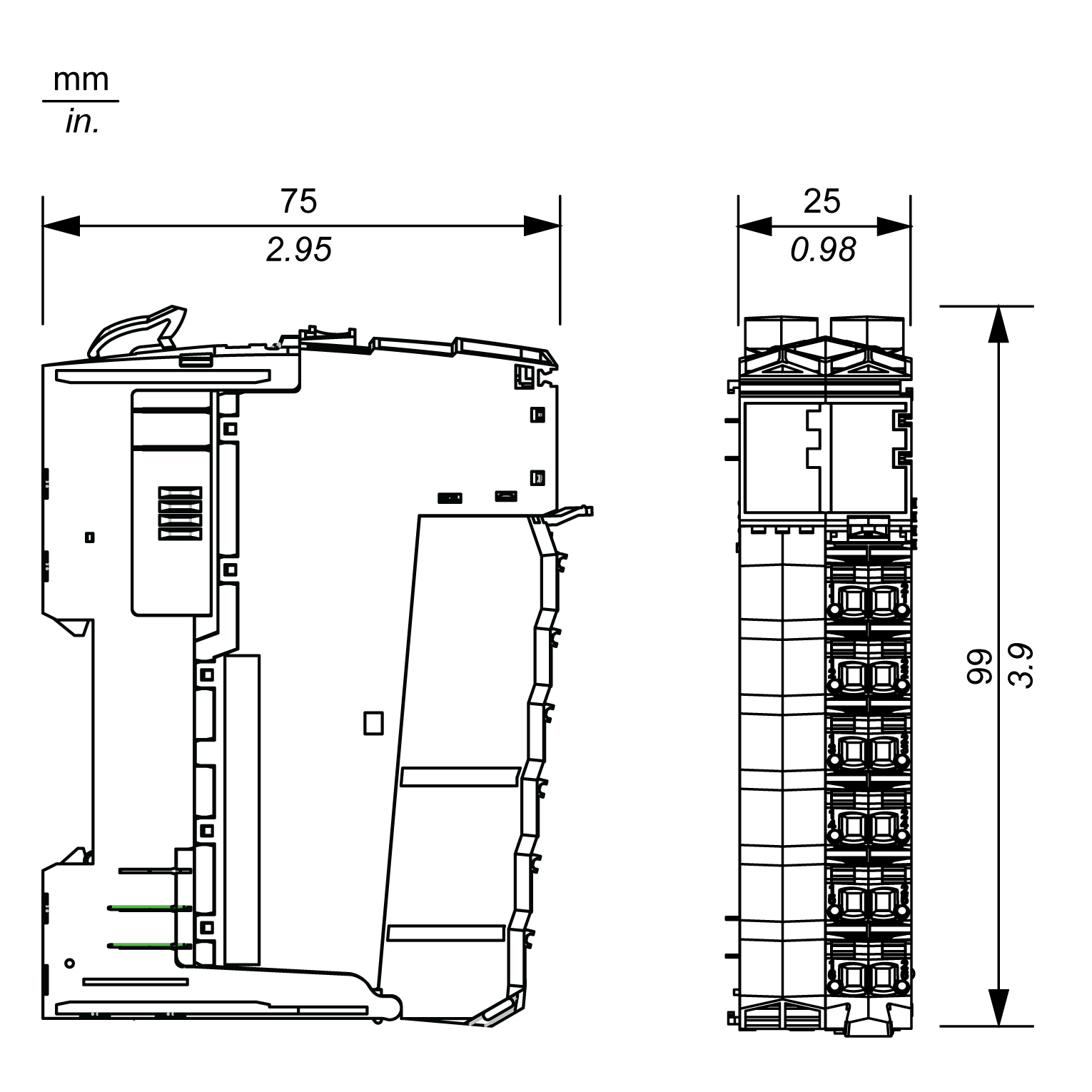

The following figure presents the dimensions of a slice:

Safety Bus Bases

For a detailed description of the Safety bus base, refer to:

Safety terminal block Pin Assignment

The following figure presents the pin assignments for the Safety terminal block:

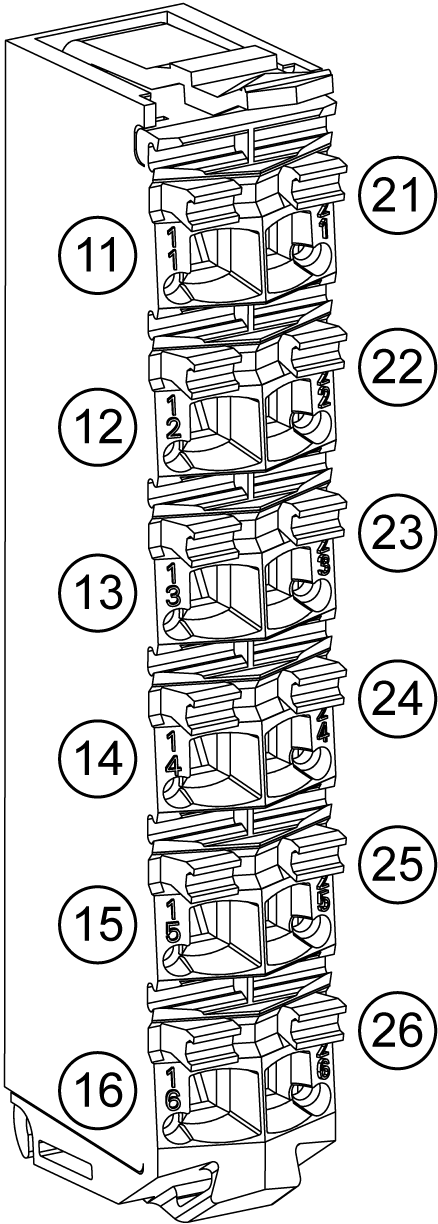

TM5ACTB52FS

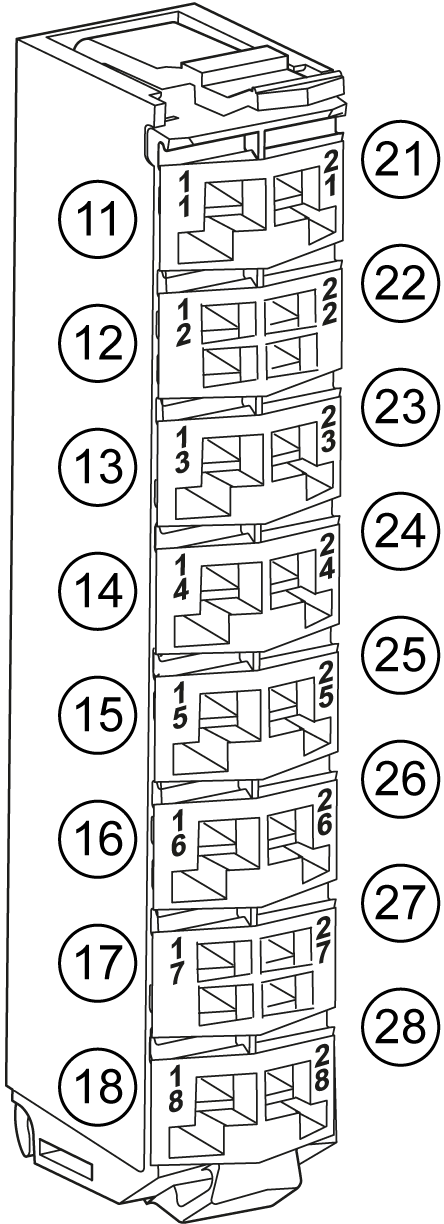

TM5ACTB5EFS

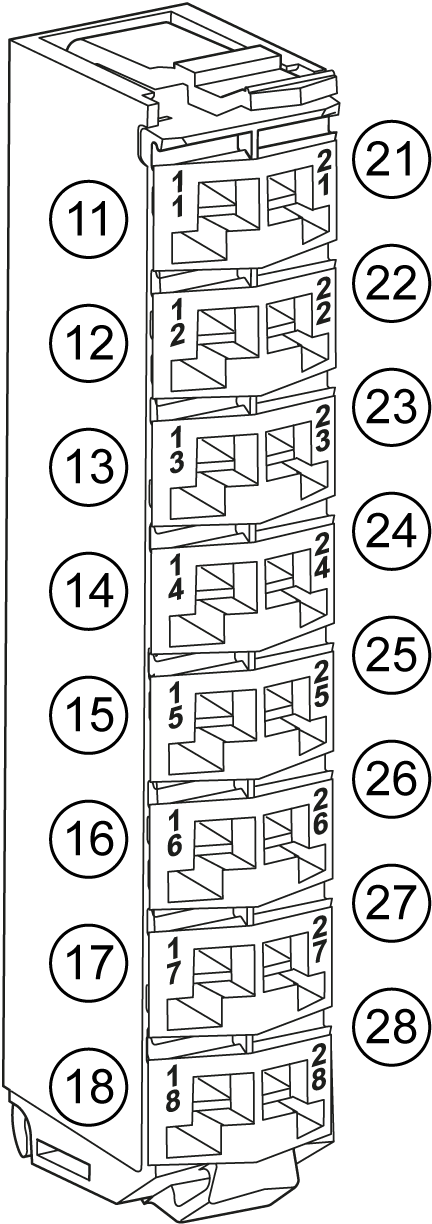

TM5ACTB5FFS

For a detailed description, refer to:

Accessories

Refer to the PacDrive TM5 / TM7 Safety Flexible System, System Planning and Installation Guide and to the M262 Embedded Safety - Integration Guide.

Labeling

Refer to the PacDrive TM5 / TM7 Safety Flexible System, System Planning and Installation Guide and to the M262 Embedded Safety - Integration Guide.
