MC_WriteParameter

Functional Description

This function block writes a value to a specific parameter.

Library and Namespace

Library name: GMC Independent PLCopen MC

Namespace: GIPLC

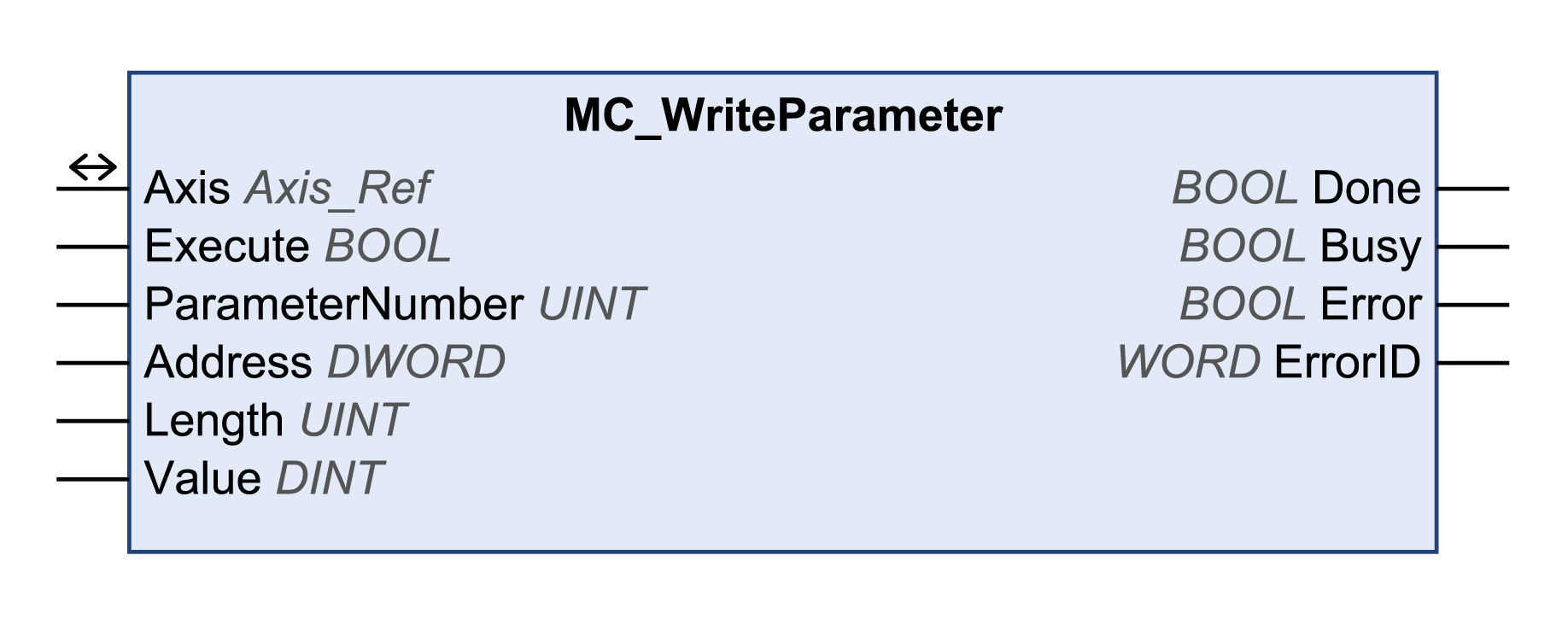

Graphical Representation

Inputs

Input

Data type

Description

Execute

BOOL

Value range: FALSE, TRUE.

Default value: FALSE.

A rising edge of the input Execute starts the function block. The function block continues execution and the output Busy is set to TRUE.

A rising edge at the input Execute is ignored while the function block is being executed.

ParameterNumber

INT

Value range: 0...65535

ATV:

  • 1000: Selection via input Address.

LXM32:

  • 2: Positive position limit of software limit switch. MON_swLimP

  • 3: Negative position limit of software limit switch. MON_swLimN

  • 4: Monitoring of the positive software limit switch. (Activated: Bit 0 = 0. Deactivated: Bit 0 = 1). MON_SW_Limits

  • 5: Monitoring of the negative software limit switch. (Activated: Bit 0 = 0. Deactivated: Bit 0 = 1). MON_SW_Limits

  • 1000: Selection via input Address.

Lexium ILA, ILE and ILS integrated drives (EtherNet/IP and Modbus TCP):

  • 2: Positive position limit of software limit switch. SPVswLimPusr

  • 3: Negative position limit of software limit switch. SPVswLimNusr

  • 4: Monitoring of the positive software limit switch. (Activated: Bit 0 = 0. Deactivated: Bit 0 = 1). SPV_SW_Limits

  • 5: Monitoring of the negative software limit switch. (Activated: Bit 0 = 0. Deactivated: Bit 0 = 1). SPV_SW_Limits

  • 1000: Selection via input Address.

Lexium ILA, ILE and ILS integrated drives (CANopen):

  • 1000: Selection via input Address.

Address

DWORD

Address of the parameter to be written.

Fieldbus address (examples):

CANopen: Index: 2038h, Subindex: 05h -> 00203805h

Ethernet/IP: Class: 8Ch, Instance: 01h, Attribute: 05h -> 008C0105h

Modbus TCP: Logic/Modbus address: 219Ch -> 0000219Ch

Refer to the documentation of the drive for a list of the parameters with the corresponding address of the parameters.

Can only be used if the input ParameterNumber = 1000.

Length

UINT

Value range: 1...4

Length of the parameter to be written in bytes.

Refer to the documentation of the drive for a list of the parameters with the corresponding length of the parameters.

Value

DINT

Value range: -2147483648...2147483647

Default value: 0

Value to be written to the parameter.

The units of the values depend on the parameter.

Outputs

Output

Data type

Description

Done

BOOL

Value range: FALSE, TRUE.

Default value: FALSE.

  • FALSE: Execution has not been started, or an error has been detected.

  • TRUE: Execution terminated without an error detected.

Busy

BOOL

Value range: FALSE, TRUE.

Default value: FALSE.

  • FALSE: Function block is not being executed.

  • TRUE: Function block is being executed.

Error

BOOL

Value range: FALSE, TRUE.

Default value: FALSE.

  • FALSE: Execution of the function block is running, no error has been detected.

  • TRUE: An error has been detected in the execution of the function block.

ErrorID

WORD

Returns the value of a diagnostic code. Refer to Library Diagnostic Codes. If the value is 0 and if the output Error of this function block is set to TRUE, then the diagnostic code can be read with the output AxisErrorID of the function block MC_ReadAxisError.

Inputs/Outputs

Input/Output

Data type

Description

Axis

Axis_Ref

Reference to the axis (instance) for which the function block is to be executed (corresponds to the name of the axis). The name of the axis must be defined in the EcoStruxure Machine Expert Devices tree.

Notes

If the inputs ParameterNumber, Address, Length or Value are modified while Busy is TRUE, the new values are not used until the function block is executed again.

Additional Information

Writing a Parameter
