Comparison Principle with a Main type

Overview

The compare block with the Main type manages thresholds, reflex outputs and events in the following modes:

Comparison is configured in the Configuration screen by activating at least one threshold.

Comparison can be used to trigger:

a programming action on thresholds
an event on a threshold associated with an external task

NOTE: This option is only available for TM3XF• expansion modules, which support external events.
reflex outputs.

Principle of a Comparison

The Main type can manage up to four thresholds.

A threshold is a configured value that is compared to the current counting value. Thresholds are used to define up to five zones or to react to a value crossing the threshold value.

Threshold values are defined in the configuration window and can also be adjusted in the application program by using the EXPERTSetParam function block.

If Thresholdx (x= 0, 1, 2, 3) is configured and comparison is enabled (EN_Compare = 1), output pin THx of the HSCMain_M241 function block is:

set when counter value >= Thresholdx
reset when counter value < Thresholdx

NOTE: When EN_Compare is set to 0 on HSCMain_M241 function block, comparison functions are disabled, including external tasks triggered by a threshold event and Reflex outputs.

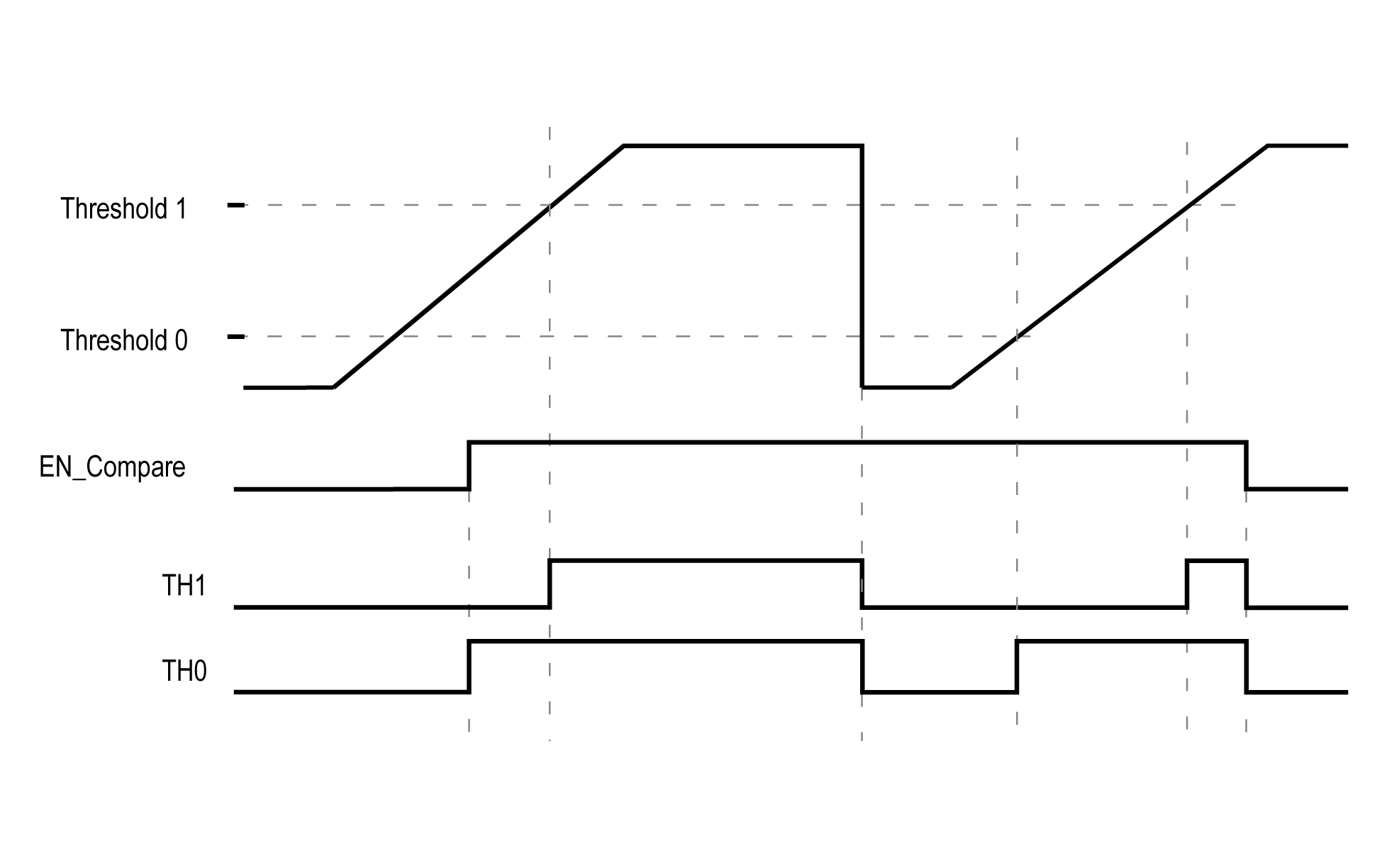

The following example for Modulo loop with two thresholds shows comparison in the HSCMain_M241 function block:

Configuring Event Triggering in HSC Main Single or Dual Phase

Configuring an event on threshold crossing allows to trigger an external task. You can choose to trigger an event when a configured threshold is crossed as follows:

Upward Cross. The event is triggered when the measured value goes above the threshold value.
Downward Cross. The event is triggered when the measured value goes below the threshold value.
Both Cross. The event is triggered when the measured value goes above the threshold value and when the measured value goes below the threshold value.

Configuring Event Triggering in Period Meter Mode

Configuring an event allows to trigger an external task. You can choose to trigger an event as follows:

Below threshold value. The event is triggered when the measured value is lower than the threshold value.
Above threshold value. The event is triggered when the measured value is higher than the threshold value.
Between threshold values. The event is triggered when the measured value is between two threshold values.

Threshold Behavior

Using thresholds comparison status available in the task context (TH0 to TH2 output pins of the function block) is suitable for an application with a low time constant.

It can be used, for example, to monitor the liquid level in a tank.

Reflex Output Behavior

Configuring reflex outputs allows to trigger physical reflex outputs.

These outputs are not controlled in the task context, reducing the reaction time to a minimum. This is convenient for operations that need fast execution.

Outputs used by the High Speed Counter can only be accessed through the function block. They cannot be read or written directly within the application.

The performance is directly linked with the type of output used: fast or regular. For more information, refer to Embedded Expert I/O Assignment.

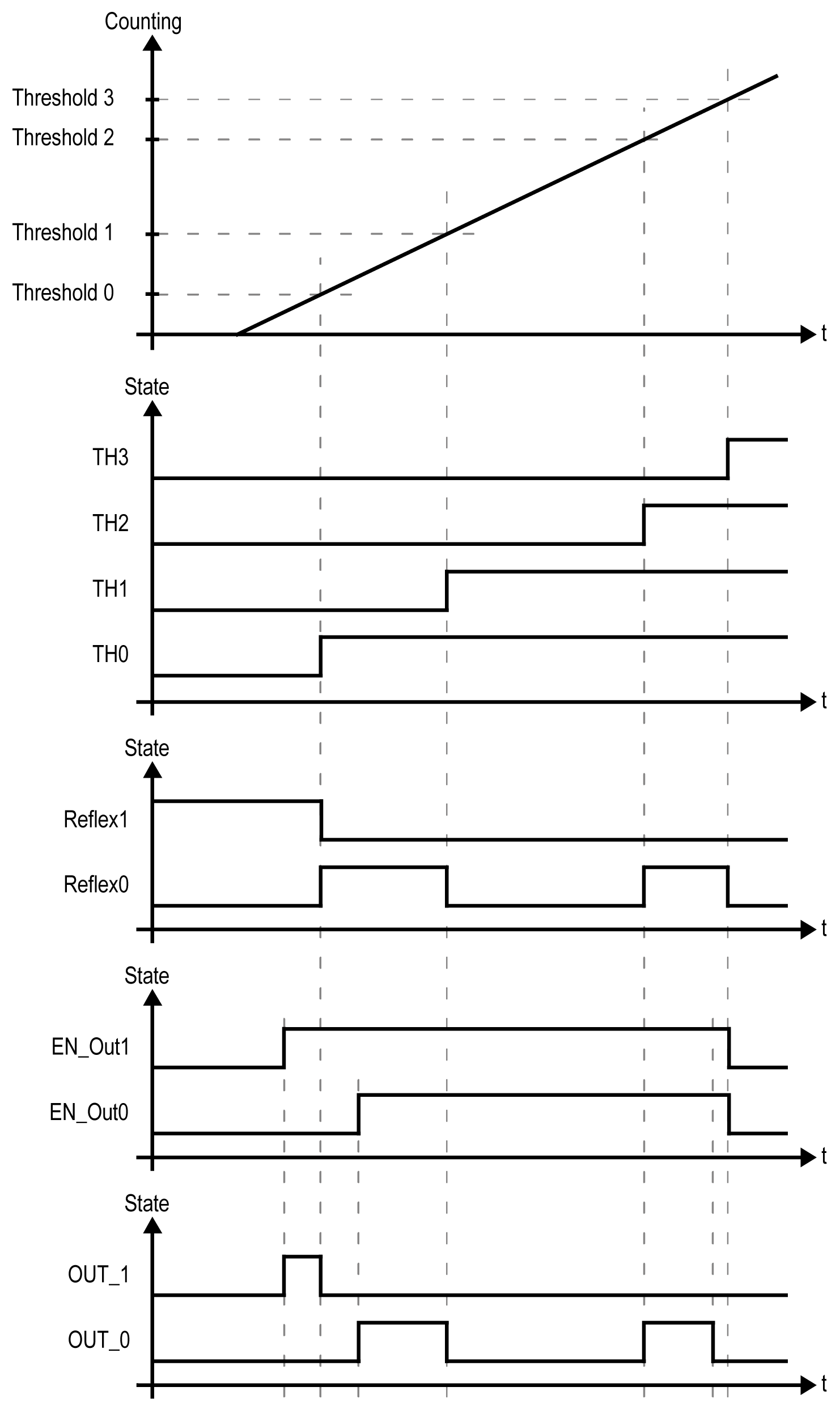

Example of the reflex outputs triggered by threshold:

NOTE: The state of the reflex outputs depends on the configuration.

Changing the Threshold Values

Care must be exercised when threshold compares are active to avoid unintended or unexpected results from the outputs or from sudden Event task execution. If the compare function is disabled, threshold values can be modified freely. However, if the compare function is enabled, suspend at least the threshold compare function while modifying the threshold values.

WARNING
	UNINTENDED EQUIPMENT OPERATION Do not change the Threshold values without using the `SuspendCompare` input if `EN_Compare` is equal to 1. Verify that `TH0` is less than `TH1`, that `TH1` is less than `TH2`, and that `TH2` is less than `TH3` before reactivating the threshold compare function. Failure to follow these instructions can result in death, serious injury, or equipment damage.

While EN_Compare = 1, the comparison is active, and it is necessary to follow this procedure to apply changes to threshold values:

Step	Action
1	Set `SuspendCompare` to 1. The comparison is frozen at the current value: The `TH0`, `TH1`, `Reflex0`, `Reflex1`, `Out0`, and `Out1` output bits of the function block maintain their last value. Physical outputs 0, 1 maintain their last value Events are masked NOTE: `EN_Compare`, `EN_Out0`, `EN_Out1`, `F_Out0`, and `F_Out1` remain operational while `SuspendCompare` is set.
2	Modify the threshold values as needed using the `EXPERTSetParam` function block. NOTE: Follow this rule to configure the threshold values: TH0 < TH1 < TH2 < TH3.
3	Set `SuspendCompare` to 0. The new threshold values are applied and the comparison is resumed.

Step

Action

Set SuspendCompare to 1.

The comparison is frozen at the current value:

The TH0, TH1, Reflex0, Reflex1, Out0, and Out1 output bits of the function block maintain their last value.
Physical outputs 0, 1 maintain their last value
Events are masked

NOTE: EN_Compare, EN_Out0, EN_Out1, F_Out0, and F_Out1 remain operational while SuspendCompare is set.

Modify the threshold values as needed using the EXPERTSetParam function block.

NOTE: Follow this rule to configure the threshold values: TH0 < TH1 < TH2 < TH3.

Set SuspendCompare to 0.

The new threshold values are applied and the comparison is resumed.
