TM3XHSC202 / TM3XHSC202G Wiring Diagram

Introduction

The TM3XHSC202 / TM3XHSC202G are equipped with two removable screw or spring terminal blocks for the connection of inputs, outputs and 24 V power supply.

Wiring Rules

See Wiring Best Practices.

Wiring Diagram

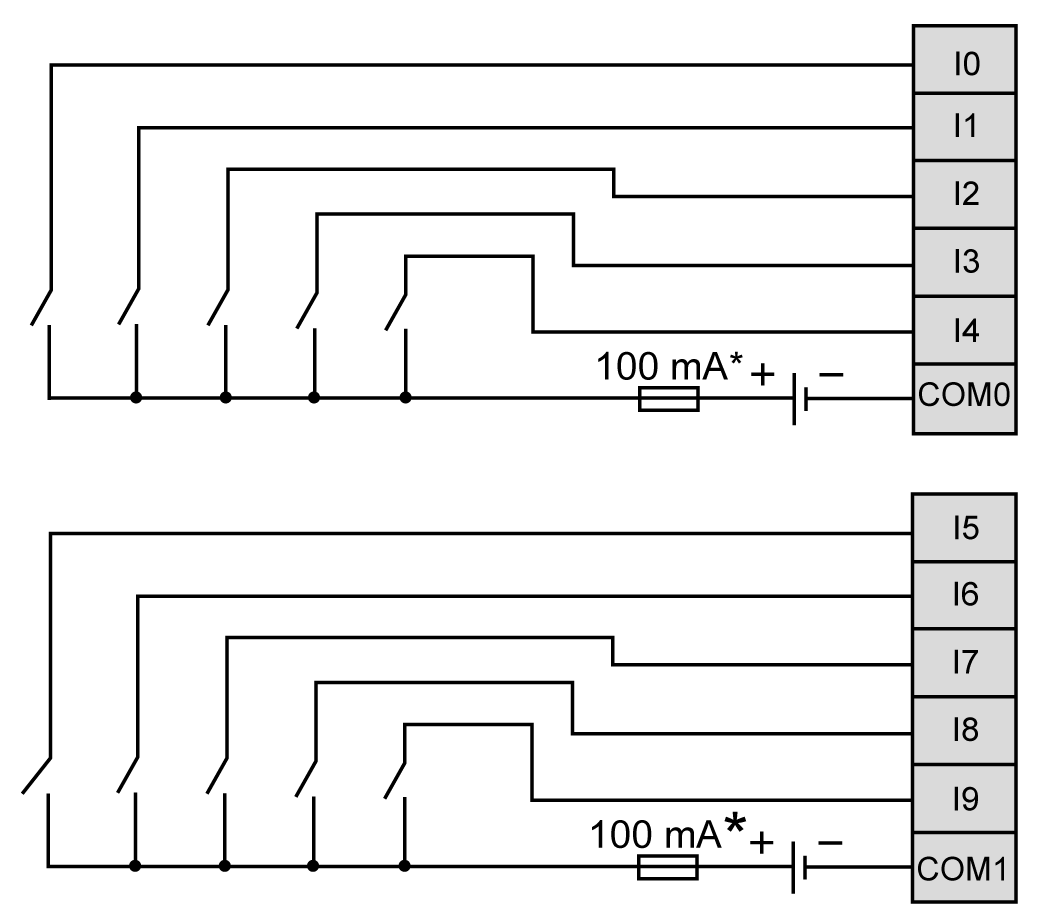

The following diagram shows the wiring of the inputs:

* Type T fuse

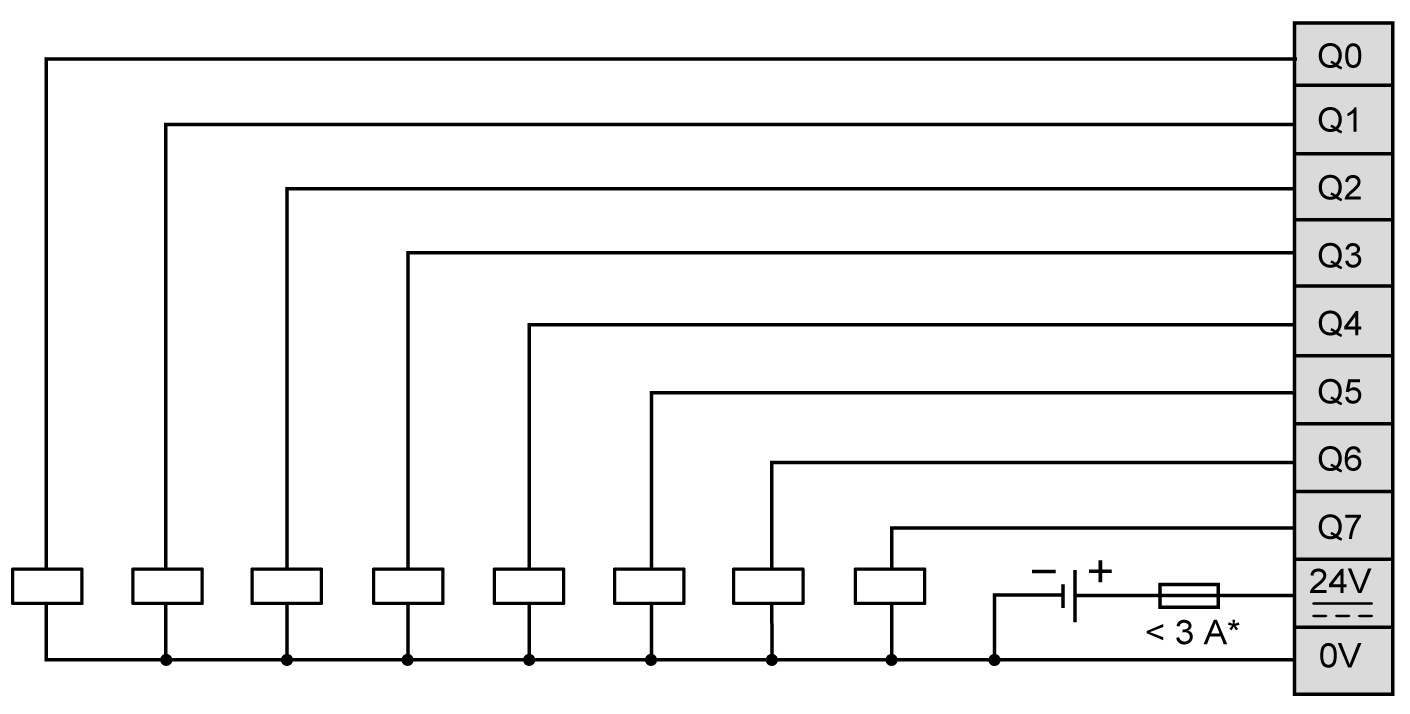

The following diagram shows the wiring of the outputs:

* Connect an appropriate type T fuse for the load, not to exceed 3 A.

Encoder Wiring

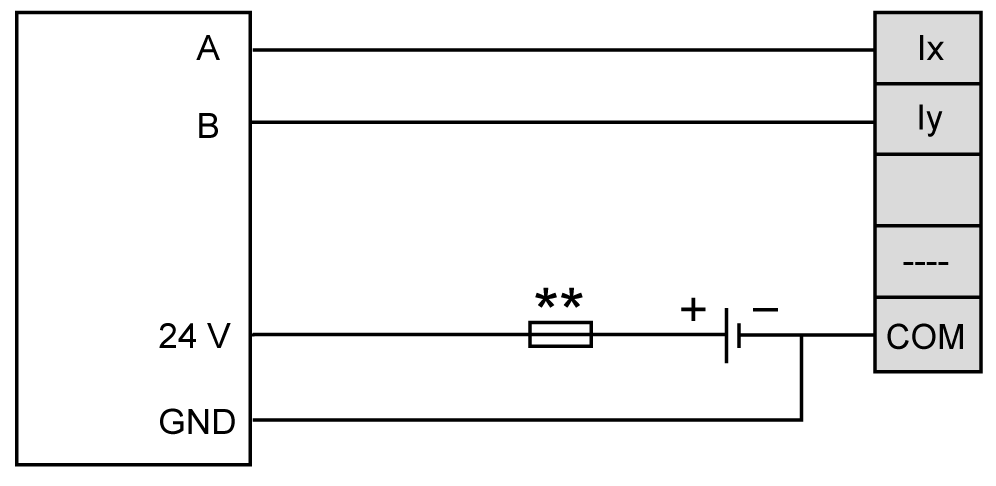

The following diagram shows the encoder wiring:

** Refer to the encoder documentation for fuse sizing.

NOTE: You must connect the output GND of the encoder to the COM terminal corresponding to the group of inputs which A and B are connected to:

  • I0...I4: COM0

  • I5...I9: COM1
