TGML snippet examples

This section provides examples that demonstrate how to use snippets in TGML graphics. Follow these examples to create TGML graphic snippet behavior.

• Link snippet example
• NewTab snippet example
• NewWindow snippet example
• PopUp snippet example
• Status(Fill) snippet example
• Status(Stroke) snippet example

Prerequisites

To follow the TGML snippet examples, you need to have a graphic file with a binded component in the workspace.

To create a TGML graphic file with a binded component in the workspace:

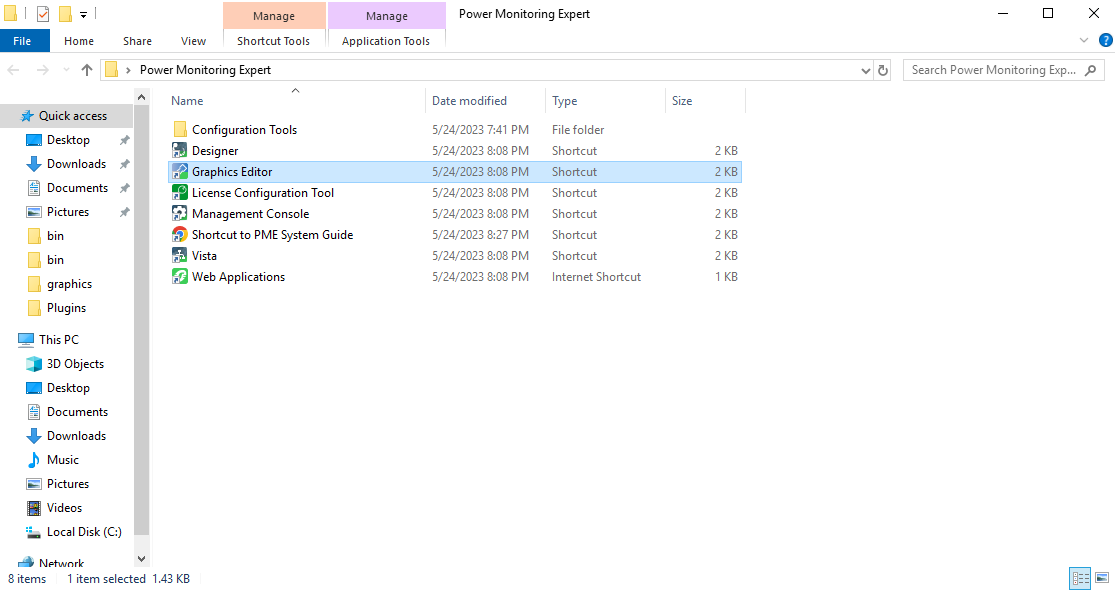

1. Open the Graphics Editor from the following location: ..\Users\Public\Desktop\Power Monitoring Expert, or by clicking on the Graphics Editor Icon.

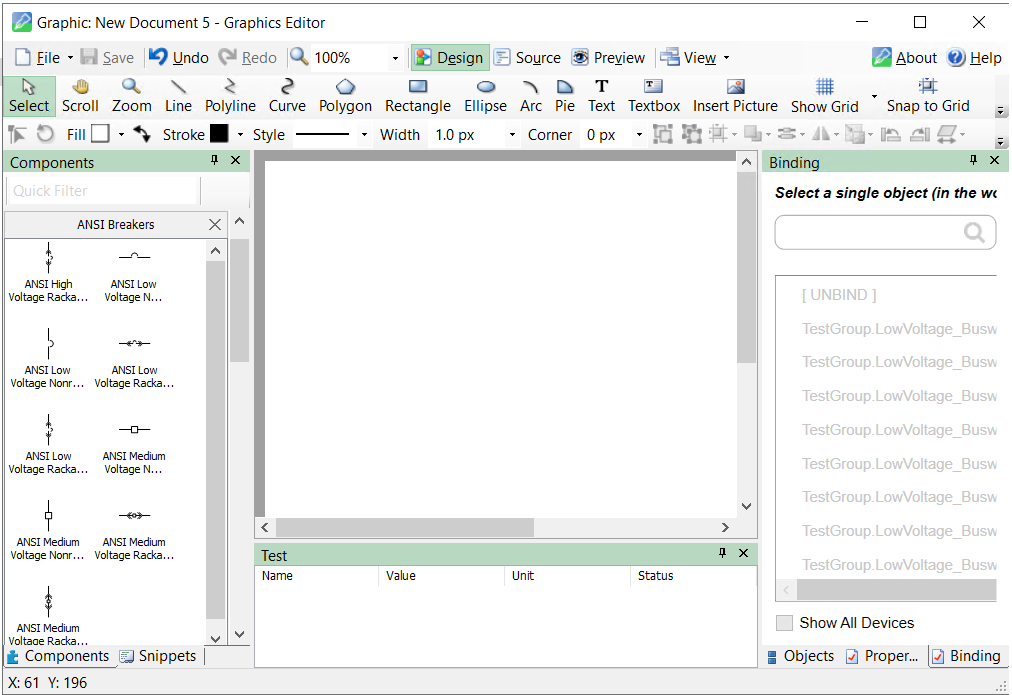

The following screen is displayed.

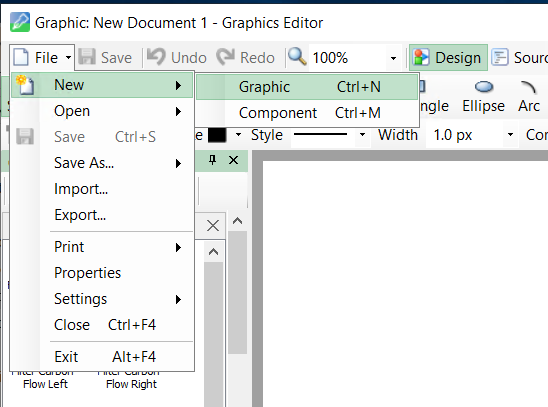

2. Click File > New > Graphic:



3. Add the components to the workspace:
   1. At the bottom left corner, click Components.
   2. Select any component and then drag and drop it onto the workspace.
4. Bind the components:

NOTE: If you dragged a Component onto the workspace, the below steps are required.

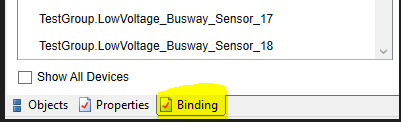

1. At the bottom right corner, click Binding.

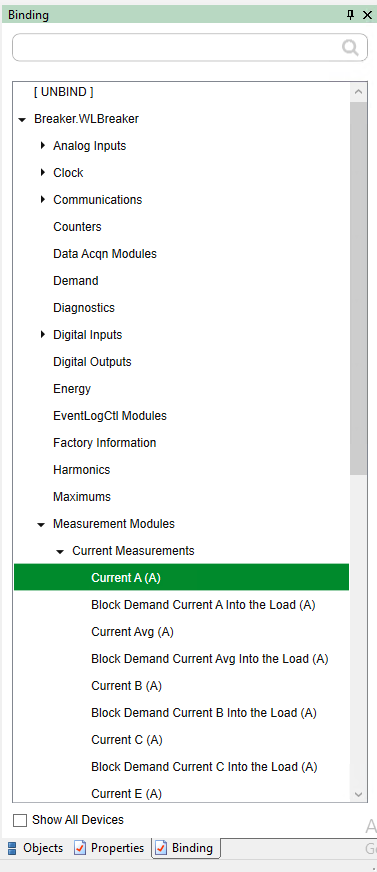

2. Select a component to bind to the selected output register/topic name/standard measurement. For example:
